Rear View Monitor settings

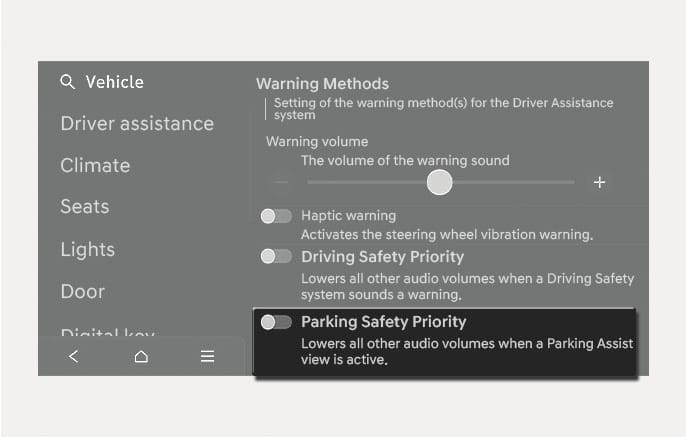

2C_WarningVolumnParkingSafetySetInfo
The Warning methods can be set with the vehicle on.
-
Parking safety priority: Select Settings > Vehicle > Driver assistance > Warning methods > Parking safety priority in the infotainment system.
If Parking safety priority is enabled, the vehicle lowers all other audio volumes when a parking assist view is active.
-
If you change the Warning methods, the Warning methods of other Driver assistance systems may change.
-
If the vehicle is restarted, Warning methods maintains the previous setting.
-
The setting menu may not exist depending on the vehicle specification.

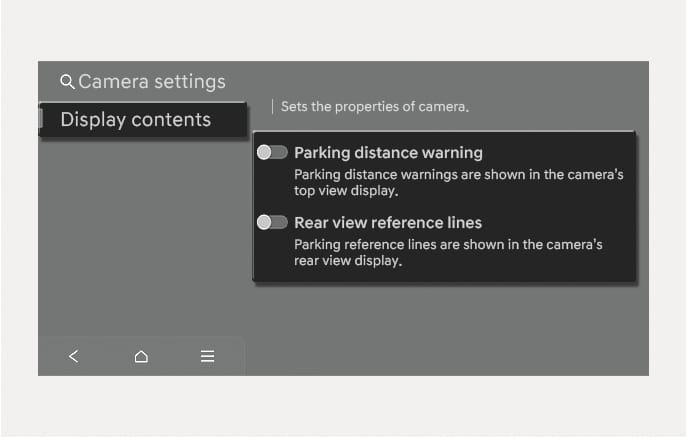

2C_RVMParkingDistanceWarningInfo
You can change Rear View Monitor Display contents by touching the setup icon (
) on the screen whilst Rear View Monitor is operating, or selecting Settings > Vehicle > Driver assistance > Parking safety > Camera settings from the Settings menu in the infotainment system whilst the vehicle is on.
In the Display contents, you can change settings for Extended Rear View Monitor and Rear view reference lines.
Extended Rear View Monitor
Keeps displaying the rear view when shifting from R (Reverse) to N (Neutral) or D (Drive). When exceeding a certain speed, the rear view stops displaying.
Rear view reference lines
If “Rear view reference lines” is selected, the rear view parking guide lines and rear top view guide lines appear at the left side of the infotainment system.
-
The horizontal guideline of the Rear View Parking Guidance shows the distance of 0.5 m, 1 m and 2.3 m from the vehicle.
-
The horizontal guideline of the Rear Top View Parking Guidance shows the tailgate opening distance and the distance of 1.5 m from the vehicle.
