Instrument cluster

Type A

1C_ClusterOverview

Type B

1C_ClusterOverview_2

The actual Instrument cluster in the vehicle may differ from the illustration. For more information, refer to the “Gauges and meters” section in this chapter.

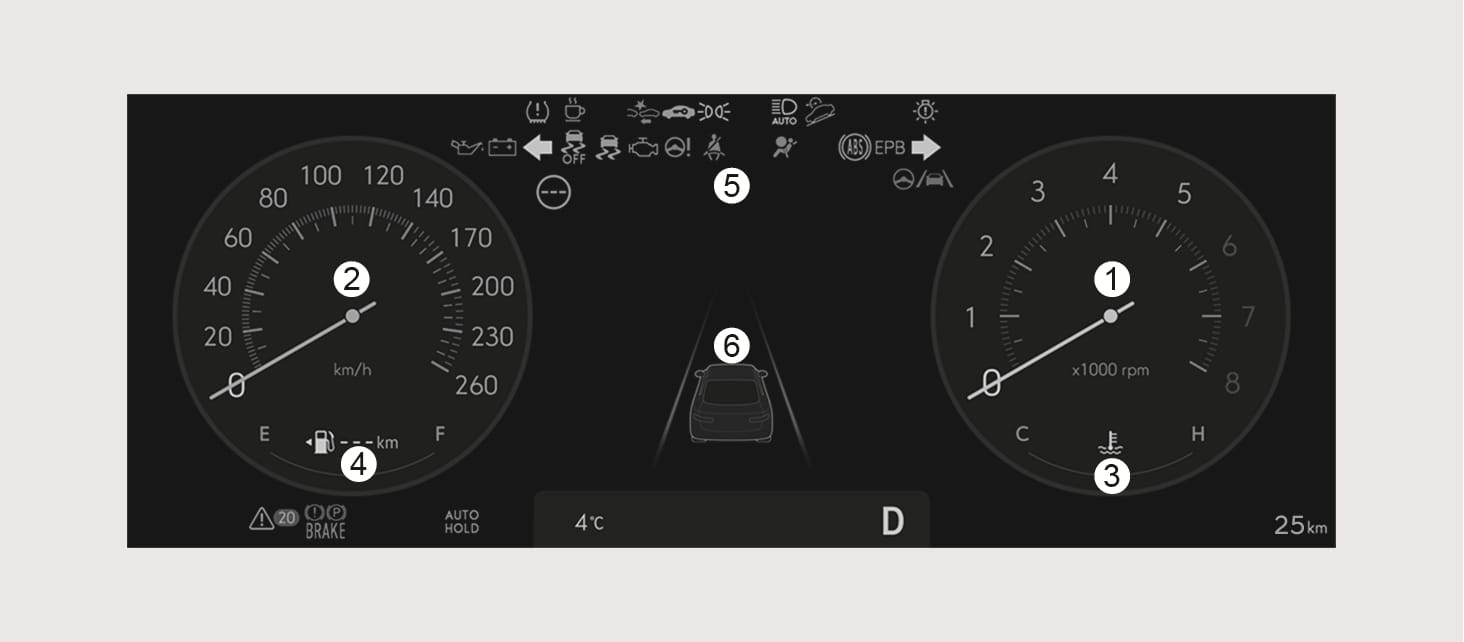

  1. Tachometer
  2. Speedometer
  3. Engine coolant temperature gauge
  4. Fuel gauge
  5. Warning and indicator lights
  6. Instrument cluster display
