Interior lamp replacement
Map lamp, interior lamp, vanity mirror lamp, glove box lamp, mood lamp, and luggage compartment lamp (LED type)
Map lamp
2C_MapLampBulb

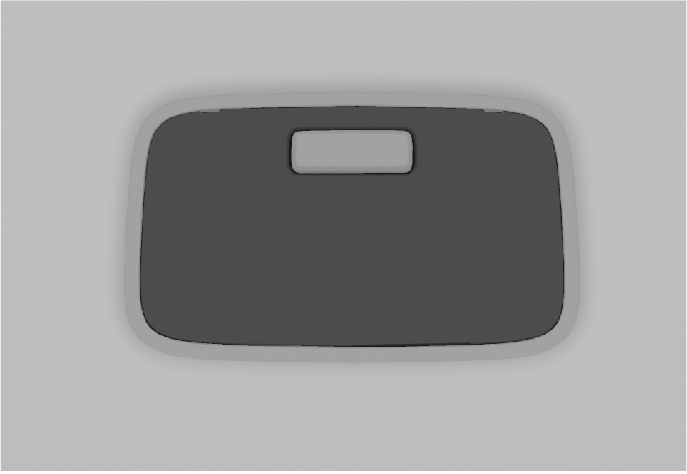

Interior lamp
2C_RoomLampLED
Vanity mirror lamp
2C_SunvisorLampLED

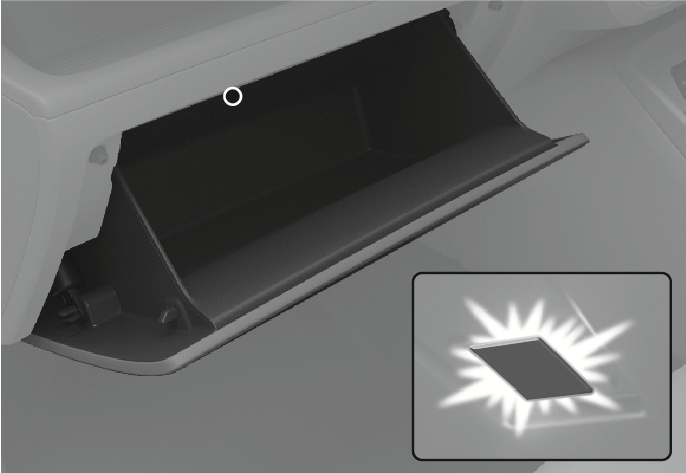

Glove box lamp
2C_GlobeBoxLamp
Mood lamp
2C_MoodLamp
Luggage compartment lamp
2C_LuggagRoomLampLED
If theses LED lamps do not operate, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.
These LED lamp cannot be replaced as a single unit. A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.
Map lamp, interior lamp, vanity mirror lamp, and glove box lamp (bulb type)
Map lamp
2C_MapLampBulb

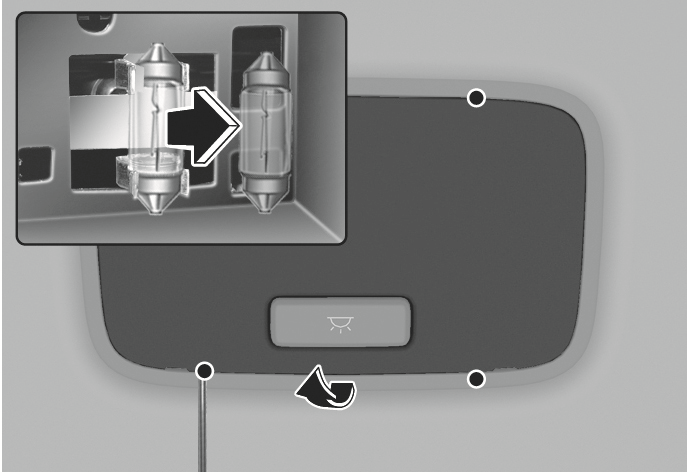

Interior lamp
2C_RoomLampBulb
Vanity mirror lamp
2C_SunvisorLampBulb

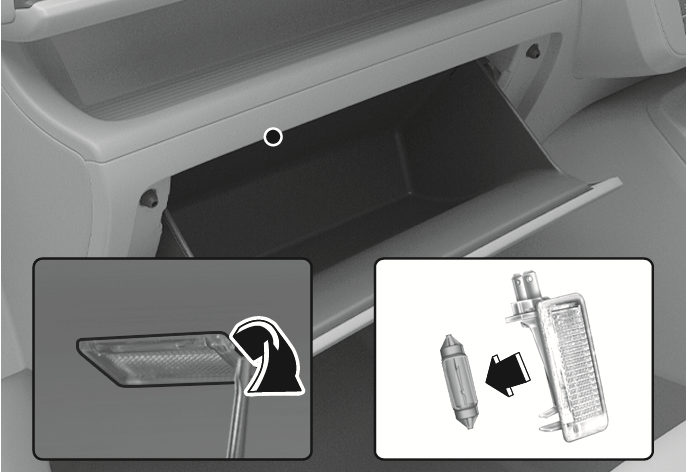

Glove box lamp
2C_GloveBoxLampBulb
-
Using a flat-head screwdriver, gently pry the lens from the interior lamp housing.
-
Remove the bulb by pulling it straight out.
-
Install a new bulb into the socket.
-
Align the lens tabs with the interior lamp housing notches and snap the lens into place.
Be careful not to damage the cover, tab, and plastic housing.
