Manual climate control system

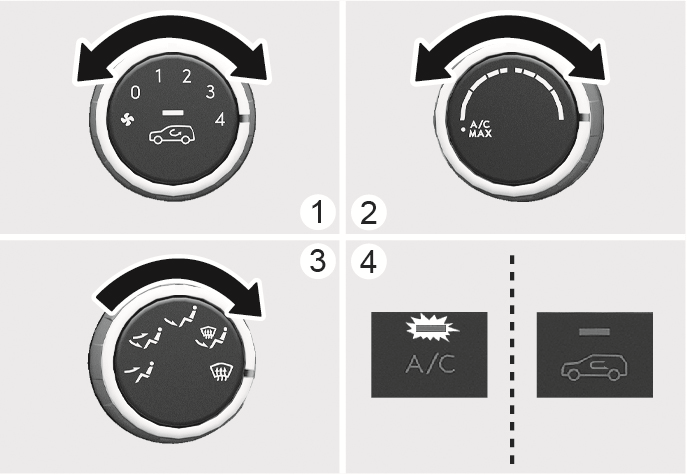

To defog inside windscreen

2C_InsideDefrostProcedure_3

  1. Select any blower speed.
  2. Select the desired temperature.
  3. Select the front windscreen defroster.
  4. The outside (fresh) air is selected automatically. The air conditioning automatically operates if the mode is selected to the defrost level position.

If the air conditioning and outside (fresh) air position are not selected automatically, press the corresponding switch.

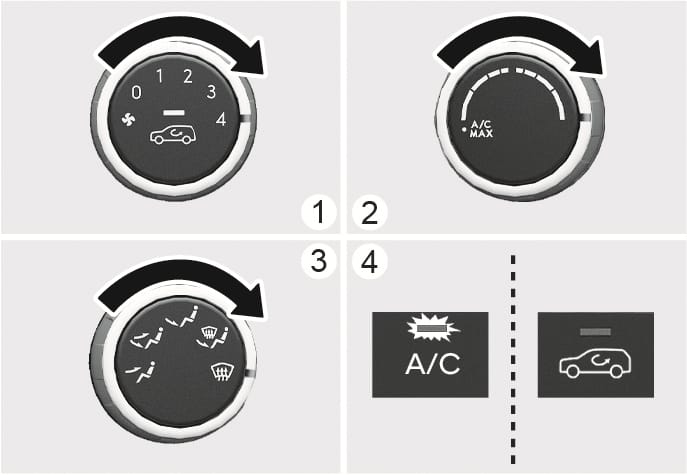

To defrost outside windscreen

2C_InsideDefrostProcedure_4

  1. Set the blower speed to the highest (extreme right) position.
  2. Set the temperature to the hottest (extreme right) position.
  3. Select the front windscreen defroster.
  4. The outside (fresh) air and air conditioning is selected automatically.
