Filter replacement

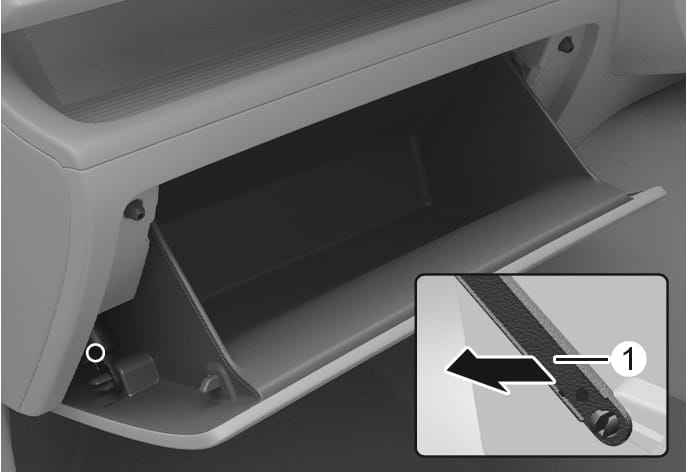

  1. Open the glove box and remove the support rod (1).

    2C_AirFilterReplacementProcedure

  2. Press both sides of the glove box inward to release.

    2C_AirFilterReplacementProcedure_2

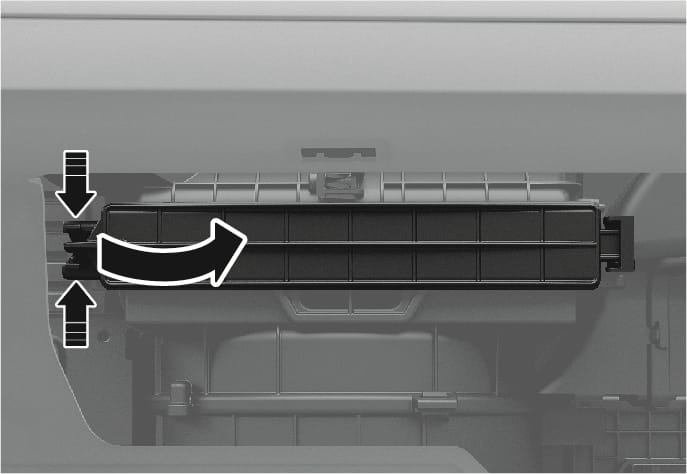

  3. Press and hold the lock on the right side of the cover.

    2C_AirFilterReplacementProcedure_3

  4. Pull out the cover.

  5. Replace the cabin air filter.

  6. Reassemble in the reverse order of disassembly.

2C_AirFilterReplacementCaution

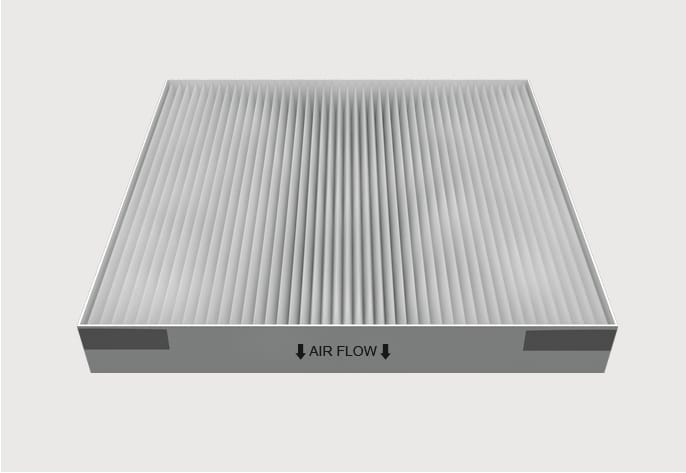

Install a new cabin air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and reduce effectiveness.
