2C_DriverAssistanceMalfunction

When Forward Collision-Avoidance Assist is not working properly, the “Check driver assistance system.” warning message appears, and the and warning lights illuminate on the instrument cluster. We recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

2C_DriverAssistanceLimitedCamera

If the front windscreen where the front view camera is located is covered with foreign material, such as snow or rain, it can reduce the detecting performance and temporarily limit or disable Forward Collision-Avoidance Assist.

If this occurs the “Driver Assistance system limited. Camera obscured.” warning message, and the and warning lights illuminate on the instrument cluster.

Forward Collision-Avoidance Assist operates properly when such snow, rain or foreign material is removed.

If Forward Collision-Avoidance Assist does not operate properly after the obstruction (snow, rain, or foreign material) is removed, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

Forward Collision-Avoidance Assist may not operate properly, or it may operate unexpectedly under the following circumstances:

• The detecting sensor or surrounding area are contaminated or damaged

• The temperature around the front view camera is high or low due to surrounding environment

• The camera lens is contaminated due to a tinted, filmed or coated windscreen, damaged glass, or stuck foreign material (sticker, bug, etc.) on the glass

• Moisture is not removed or frozen on the windscreen

• Washer fluid is continuously sprayed, or the wipers are on

• Driving in heavy rain or snow, or thick fog

• The field of view of the front view camera is obstructed by sun glare

• Street light or light from an oncoming traffic is reflected on the wet road surface, such as a puddle on the road

• An object is placed on the instrument panel

• Your vehicle is being towed

• The surroundings are very bright

• The surroundings are very dark, such as in a tunnel, etc.

• The light level changes suddenly, for example when entering or exiting a tunnel

• The light level outside is low, and the headlamps are not on or are not bright

• Driving through steam, smoke or shadow

• Only part of the vehicle, motorcycle, pedestrian or cyclist is detected

• The vehicle in front is a bus, heavy truck, or a truck with an unusually shaped luggage, trailer, etc.

• The vehicle or motorcycle in front has no tail lamps, or tail lamps are located unusually, etc.

• The light level outside are low, and the tail lamps are not on or are not bright

• The rear of the front vehicle is small or the vehicle does not look normal, such as when the vehicle is tilted, overturned, or the side of the vehicle is visible, etc.

• The front vehicle's ground clearance is low or high

• A vehicle, motorcycle, pedestrian or cyclist suddenly cuts in front

• The vehicle and motorcycle in front is detected late

• The vehicle and motorcycle in front is suddenly blocked by an obstacle

• The vehicle and motorcycle in front suddenly changes lane or suddenly reduces speed

• The vehicle in front is bent out of shape

• The speed of the vehicle or motorcycle in front is fast or slow

• The vehicle or motorcycle in front is covered with snow

• You are departing or returning to the lane

• Unstable driving

• You are on a roundabout and the vehicle in front is not detected

• You are continuously driving in a circle

• The vehicle and motorcycle in front has an unusual shape

• The vehicle and motorcycle in front is driving uphill or downhill

• The pedestrian or cyclist is not fully detected, for example, if the pedestrian is leaning over or is not fully walking upright

• The pedestrian or cyclist is wearing clothing or equipment that makes it difficult to detect as a pedestrian

2C_FrontViewImage_1

The image above shows the image the front view camera will detect as a vehicle and pedestrian.

• The pedestrian or cyclist in front is moving very quickly

• The pedestrian or cyclist in front is short or is posing a low posture

• The pedestrian or cyclist in front has impaired mobility

• The pedestrian or cyclist in front is moving at right angles to the driving direction

• There is a group of pedestrians, cyclists or a large crowd in front

• The pedestrian or cyclist is wearing clothing that easily blends into the background, making it difficult to detect

• The pedestrian or cyclist is difficult to distinguish from a similar shaped structure in the surroundings

• You are driving by a pedestrian, cyclist, traffic sign, structure, etc. near a junction

• Driving in a car park

• Driving through a tollgate, construction area, unpaved road, partial paved road, uneven road, speed bumps, etc.

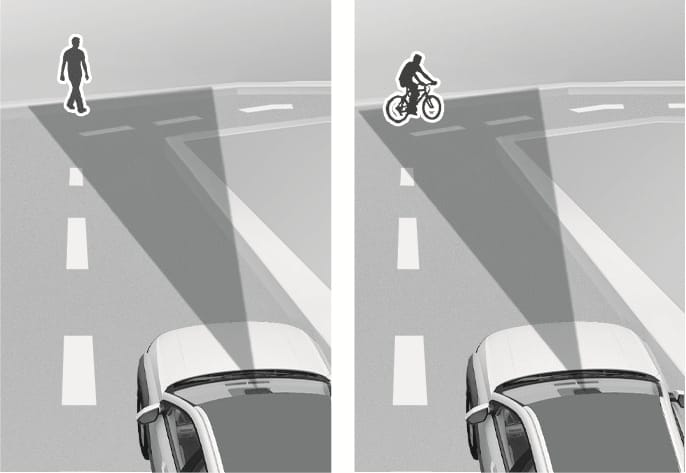

• Driving on a gradient, curved road, etc.

• Driving on a road with trees or streetlights

• The adverse road conditions cause excessive vehicle vibrations whilst driving

• Your vehicle height is low or high due to heavy loads, abnormal tyre pressure, etc.

• Driving on a narrow road where trees or grass are overgrown

• There is interference from electromagnetic waves such as driving in an area with strong radio waves or electrical noise
