Engine compartment overview

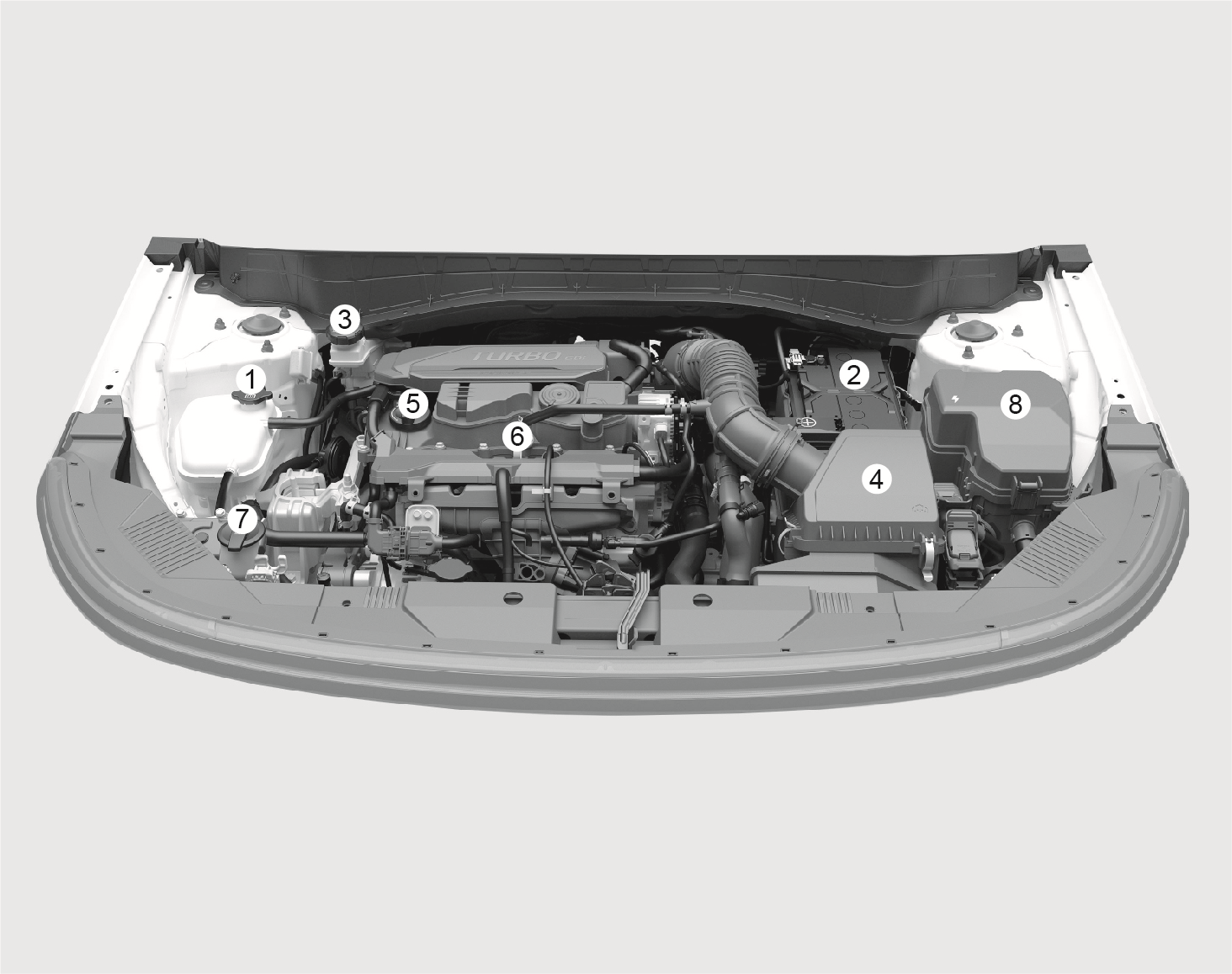

Smartstream G1.6 T-GDi

1C_EngineRoom

The actual engine compartment in the vehicle may differ from the illustration.

  1. Engine coolant reservoirChecking the coolant level
  2. Battery Battery
  3. Brake fluid reservoirChecking the brake fluid level
  4. Air cleanerAir cleaner
  5. Engine oil filler capChecking the engine oil level
  6. Engine oil dipstickChecking the engine oil level
  7. Windscreen washer fluid reservoirChecking the washer fluid level
  8. Fuse boxFuses
Smartstream G2.0 ATKINSON

1C_EngineRoom_2

The actual engine compartment in the vehicle may differ from the illustration.

  1. Engine coolant reservoirChecking the coolant level
  2. Battery Battery
  3. Brake fluid reservoirChecking the brake fluid level
  4. Air cleanerAir cleaner
  5. Engine oil filler capChecking the engine oil level
  6. Engine oil dipstickChecking the engine oil level
  7. Windscreen washer fluid reservoirChecking the washer fluid level
  8. Fuse boxFuses
