Blind-Spot Collision-Avoidance Assist (BCA)

Blind-Spot Collision-Avoidance Assist detects approaching vehicles in the driver’s blind spot areas and warn you of a possible collision with a warning light and a warning sound.

If there is a collision risk when exiting a parallel space, Blind-Spot Collision-Avoidance Assist may assist with braking your vehicle to help avoid a collision.

2C_BCAOperation

Blind-Spot Collision-Avoidance Assist helps detect and informs the driver that a vehicle is in the blind spot.

The detecting range may vary depending on the speed of your vehicle. Even if there is a vehicle in the blind spot area, Blind-Spot Collision-Avoidance Assist may not warn you when you pass by at high speeds.

2C_BCAOperation_2

Blind-Spot Collision-Avoidance Assist helps detect and informs the driver that a vehicle is approaching at high speed from the blind spot area.

Warning timing may vary depending on the speed of the vehicle approaching at high speed.

2C_BCAOperation_3

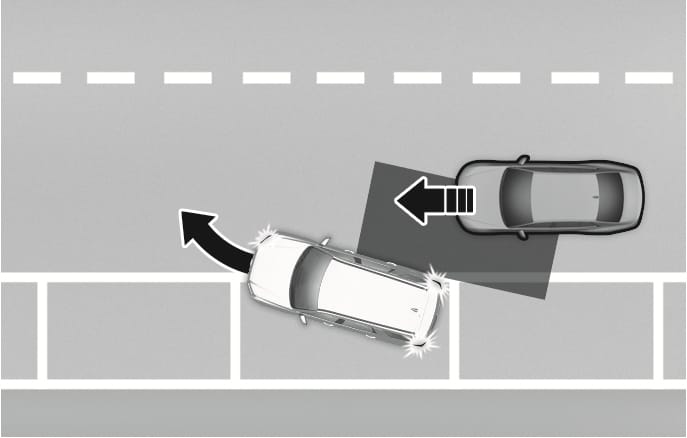

When you are driving forward out of a parking space, if Blind-Spot Collision-Avoidance Assist judges that there is a collision risk with an approaching vehicle in the blind spot, it can help avoid collision by applying the brake.

Detecting sensor

2C_RearRadar

  1. Rear corner radar

See the image above for the detailed location of the detecting sensors.

Take the following precautions to maintain optimal performance of the detecting sensor:

  • Never disassemble the detecting sensor assembly, or cause any damage to it.

  • If the rear corner radar or near the radar has been damaged or impacted in any way, even though the warning message does not appear on the instrument cluster, Blind-Spot Collision Avoidance Assist may not operate properly. We recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

  • If the rear corner radars have been replaced or repaired, we recommend that your vehicle be inspected by an authorised HYUNDAI dealer.

  • Use only genuine parts to repair the rear bumper where the rear corner radar is located.

  • Rear bumper genuine parts with rear corner radars have proven their performance. Replacing or painting the rear bumper may result in poor performance of Blind-Spot Collision Avoidance Assist. When the parts need to be replaced or modified, make sure to use genuine Hyundai products.

  • Do not apply licence plate frame or objects, such as a bumper sticker, film or a bumper guard near the rear corner radar.

  • Blind-Spot Collision Avoidance Assist may not work properly if the bumper has been replaced, or the area surrounding the rear corner radar has been damaged or paint has been applied.

  • If a trailer, carrier, etc., is installed, it may adversely affect the performance of the rear corner radar or Blind-Spot Collision Avoidance Assist may not operate.
