Headlamps levelling device
2C_HeadLampLevelingAuto

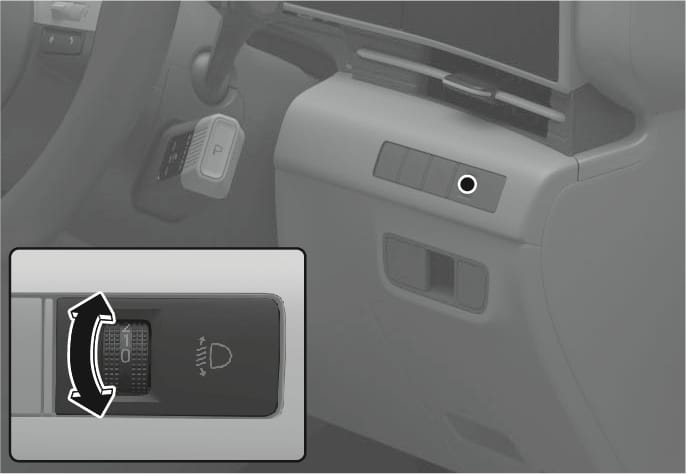

To adjust the headlamps beam level according to the number of the passengers and loading weight in the luggage compartment, turn the beam levelling switch.
The higher the number on the switch position, the lower the headlamps beam level. Always keep the headlamps beam at the proper levelling position, or headlamps may dazzle other road users.
Listed below are examples of appropriate switch settings for varying loads. For loading conditions other than those listed, adjust the switch position to the most similar situation.
|
Loading condition |
Switch position |
|
Driver only |
0 |
|
Driver + Front passenger |
0 |
|
Full passengers (including driver) |
1 |
|
Full passengers (including driver) + Maximum permissible loading |
2 |
|
Driver + Maximum permissible loading |
3 |
If the function does not work properly, we recommend that the system be inspected by an authorised HYUNDAI dealer. Do not attempt to inspect or replace the wiring yourself.
