Automatic climate control system

To defog inside windscreen

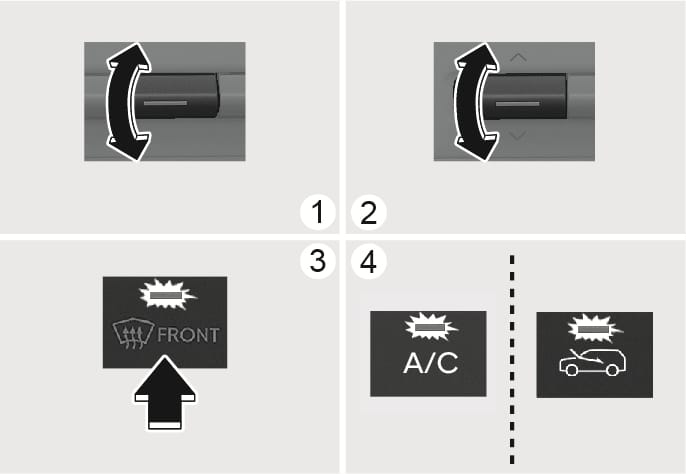

2C_InsideDefrostProcedure

  1. Select the desired blower speed.
  2. Select the desired temperature.
  3. Press the defroster button ()
  4. The air conditioning turns on according to the detected ambient temperature, the outside (fresh) air mode and higher blower speed are selected automatically.

If the air conditioning, outside (fresh) air mode and higher blower speed are not selected automatically, adjust the corresponding switch.

If the defrost switch is selected, the blower speed increases.

To defrost outside windscreen

2C_InsideDefrostProcedure_2

  1. Set the blower speed to the highest position.
  2. Set the temperature to the hottest (HI) position.
  3. Press the defroster button ()
  4. The air conditioning turns on according to the detected ambient temperature and the outside (fresh) air mode is selected automatically.

If the defrost switch is selected, lower blower speed is adjusted to higher blower speed.
