Forward Collision-Avoidance Assist (FCA) (Front view camera only)

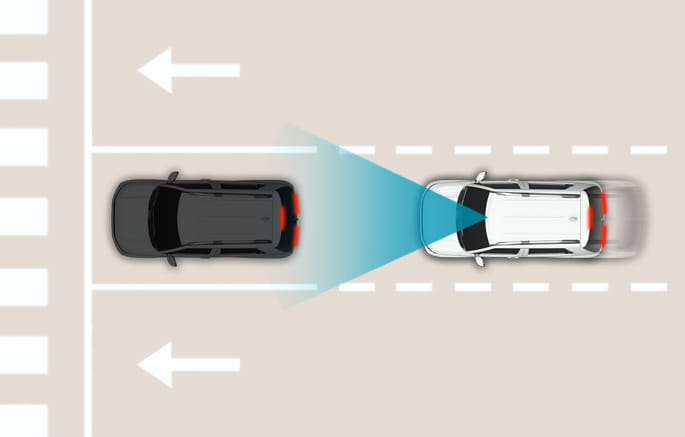

2C_FCABasicFunctionCam_RHD
Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a motorcyclist, pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message and warning and apply emergency braking.
A motorcyclist refers to the driver of a vehicle riding the following powered two-wheeler.
-
Mopeds with 50 cc and restricted top speeds
-
Motorcycles

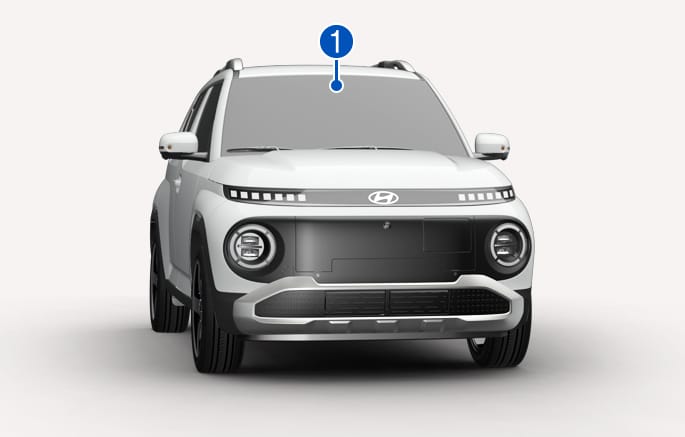

2C_FrontViewCamera
- Front view camera
Refer to the picture above for the detailed location of the detecting sensor.
Take the following precautions to maintain optimal performance of the detecting sensor:
-
Never disassemble the detecting sensor or sensor assembly, or cause any damage to it.
-
If the detecting sensor have been replaced or repaired, we recommend that you have your vehicle inspected by a HYUNDAI authorised repairer.
-
Never install any accessories or stickers on the front windscreen, or tint the front windscreen.
-
Pay extreme caution to keep the front view camera dry.
-
Never place any reflective objects (for example, white paper, mirror) over the dashboard.
-
Do not place any objects near the front windscreen or install any accessories on the front windscreen. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.
