Headlight, Position light, turn signal light and daytime running light bulb replacement

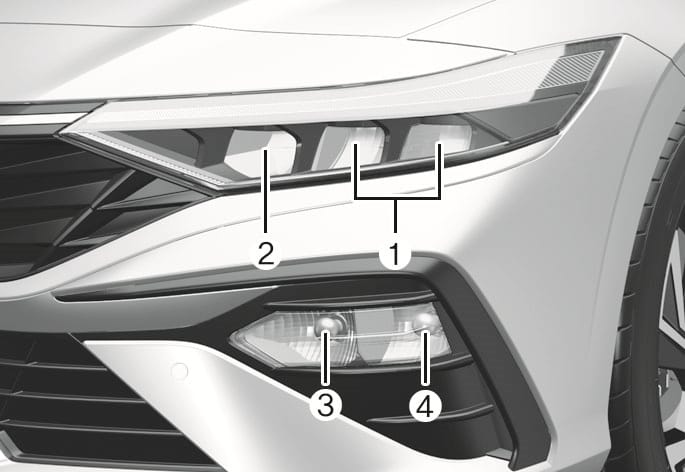

OCN7093036L

Type B

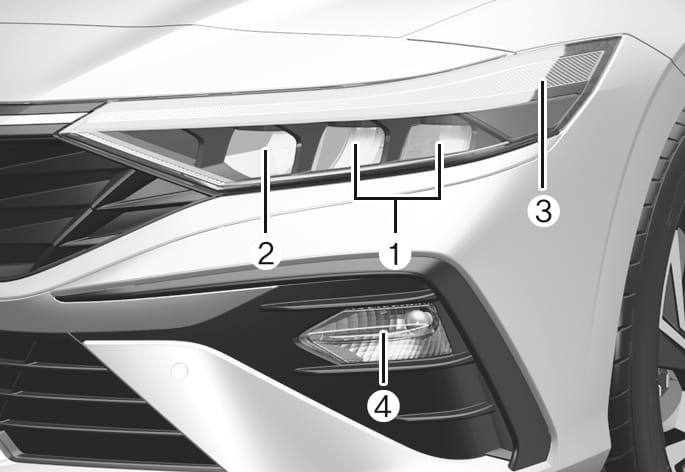

OCN7083096

  1. Headlight (Low)
  2. Headlight (High)
  3. Position light/Daytime running light (DRL)
  4. Turn signal light
Type C

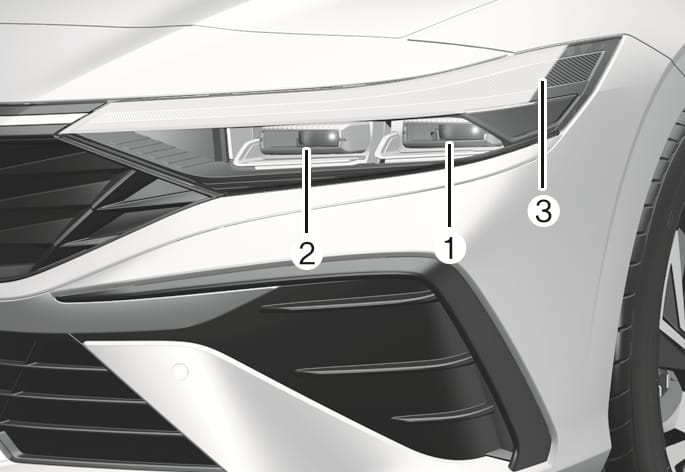

OCN7083095

  1. Headlight (Low)
  2. Headlight (High)
  3. Daytime running light (DRL)/Position light/Turn signal light

Headlight (LED type)

If the light (LED) does not operate, we recommend that the system be checked by an authorized HYUNDAI dealer.

The LED lights cannot be replaced as a single unit because it is an integrated unit. The LED lights has to be replaced with the unit.

A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.

The headlight aiming should be adjusted after an accident or after the headlight assembly is reinstalled.

OCN7093038L

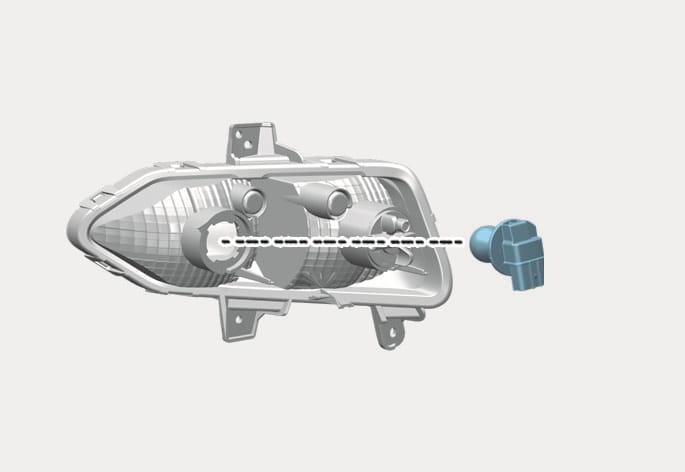

Position light/Daytime running light (DRL) (Bulb type)

  1. Remove the under cover by rotating the screws and bolts.

  2. Reach your hand into the back of the front bumper.

  3. Disconnect the power connector from the socket.

  4. Remove the bulb-socket from the housing by turning the socket counterclockwise until the tabs on the socket align with the slots on the housing.

  5. Install the new bulb-socket into the housing by aligning the tabs on the socket with the slots in the housing. Push the socket into the housing and turn the socket clockwise.

  6. Connect the power connector to the socket.

  7. Reinstall the front bumper under cover.

Position light/Daytime running light (DRL) (LED type)

If the light (LED) does not operate, we recommend that the system be checked by an authorized HYUNDAI dealer.

The LED lights cannot be replaced as a single unit because it is an integrated unit. The LED lights has to be replaced with the unit.

A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.

OCN7093037L

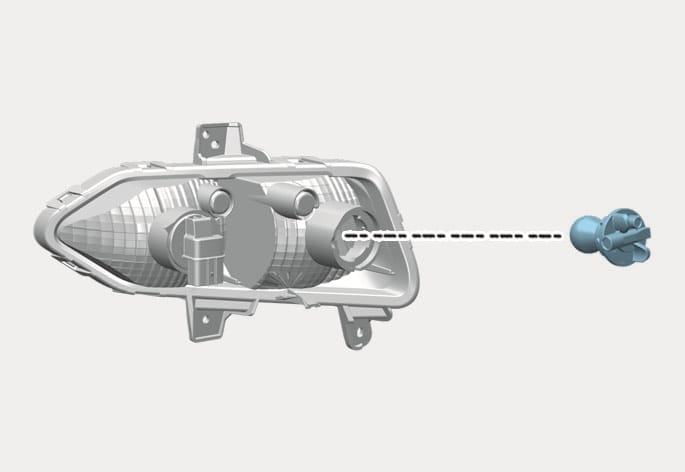

Turn signal light (Bulb type)

  1. Open the hood.

  2. Disconnect the negative battery cable.

  3. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

  4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

  5. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

  6. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.

  7. Push the socket into the assembly and turn the socket clockwise.

Headlight/Position light/Daytime running light (DRL)/Turn signal light (LED type)

If the light (LED) does not operate, we recommend that the system be checked by an authorized HYUNDAI dealer.

The LED lights cannot be replaced as a single unit because it is an integrated unit. The LED lights has to be replaced with the unit.

A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.

Lamps

If the LED light does not operate, we recommend that you have the vehicle checked by an authorized HYUNDAI dealer.
