Seat warmers

Seat warmers are provided to warm the seats during cold weather.

During mild weather or under conditions where the operation of the seat warmer is not needed, keep the seat warmers off.

The seat warmers can cause a serious burn, even at low temperatures and especially if used for long periods of time.

Passengers must be able to feel if the seat is becoming too warm so they can turn it off, if needed.

Seat warmers consume huge amounts of electricity. Please avoid using seat warmers whilst the vehicle is off in order to prevent battery discharge.

People who cannot detect temperature change or pain to the skin should use extreme caution, especially the following types of passengers:

  • Infants, children, elderly or disabled persons, or hospital outpatients.

  • People with sensitive skin or who burn easily.

  • Fatigued individuals.

  • Intoxicated individuals.

  • People taking medication that may cause drowsiness or sleepiness.

Never place anything on the seat that insulates against heat when the seat warmer is operating, such as a blanket or seat cushion.

To prevent damage to the seat warmers and seats:

  • Never use a solvent such as paint thinner, benzene, alcohol or petrol to clean the seats.

  • Do not place heavy or sharp objects on seats equipped with seat warmers.

  • Do not change the seat cover. It may damage the seat warmer.

Front seat warmers

Whilst the engine is running, press the seat warmer switch to warm the driver's seat or front passenger's seat.

Type A

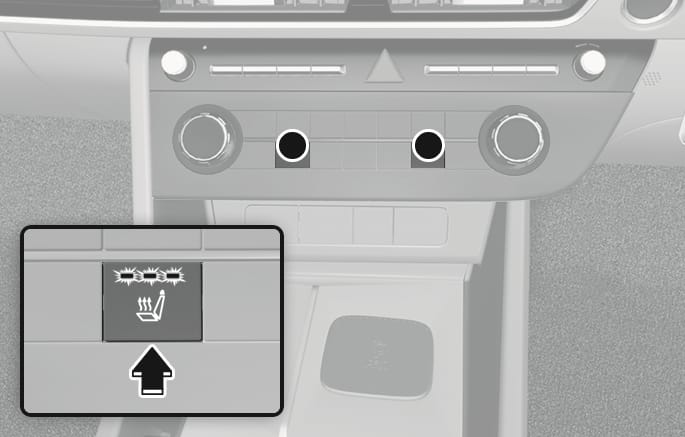

2C_FrontSeatWarmerSwitchTypea

  • Pressing the switch each time will change the temperature in turn from low, to medium, high, and off.

  • The seat warmer temperature is lowered automatically and then goes off after a certain time to prevent low temperature burns. If high temperature is selected again after the seat warmer turns off, the temperature is controlled automatically again.

Type B

  1. Whilst the engine is running, press next to the driver’s seat or front passenger’s seat, which requires heating, on the climate control information screen.

    • The seat warmer is turned on as low.

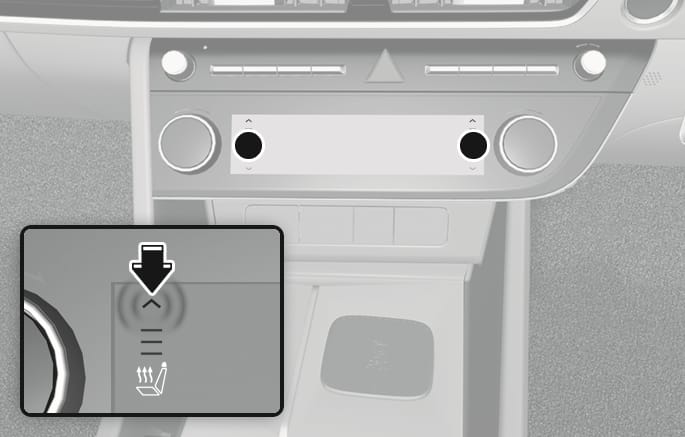

    2C_FrontSeatWarmerSwitchTypeb

  2. Press repeatedly to raise the seat temperature to low, medium, and high.

    • The button does not work when the seat temperature is in high status.

    • The seat warmer temperature is lowered automatically and then goes off after a certain time to prevent low temperature burns. Press or to adjust the temperature again. If high temperature is selected again after the seat warmer turns off, the temperature is controlled automatically again.

    • To turn on the seat warmer when the air ventilation seat is turned on, press until the seat warmer is turned on.

  3. Press repeatedly to lower the temperature or turn off the function.

  • Link to climate settings for auto-adjustment (for driver’s seat)

    The seat warmer automatically controls the seat temperature depending on the ambient temperature and the set climate control temperature when the engine is running. If the seat warmer switch or icon is pressed, the seat warmer is controlled manually.

    To use this feature, it can be enabled from the Settings menu in the infotainment system.

    Select: Setup > Vehicle > Climate > Link to climate settings for auto-adjustment > Driver seat warmer/ventilation

  • The seat warmer defaults to the OFF position whenever the Engine Start/Stop button is pressed to the ON position. However, if the Link to climate settings for auto-adjustment function is on, the driver’s seat warmer turns on and off depending on the ambient temperature and the set climate control temperature.

The infotainment system may change after software updates. For more information, refer to the manual provided in the infotainment system and the quick reference guide.

Rear seat warmers

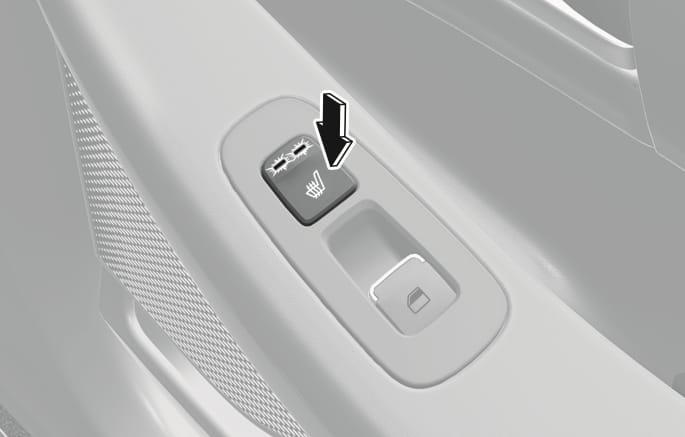

2C_RearSeatVentilationSwitchTypeb

Whilst the engine is running, press the seat warmer switch to warm the rear seat.

  • Pressing the switch each time changes the temperature in turn from high, to medium, low, and off.

  • The seat warmer temperature is lowered automatically and then goes off after a certain time to prevent low temperature burns. If high temperature is selected again after the seat warmer turns off, the temperature is controlled automatically again.

  • The seat warmer defaults to the OFF position whenever the Engine start/stop button is pressed to the ON position.
