Fuse/relay panel description

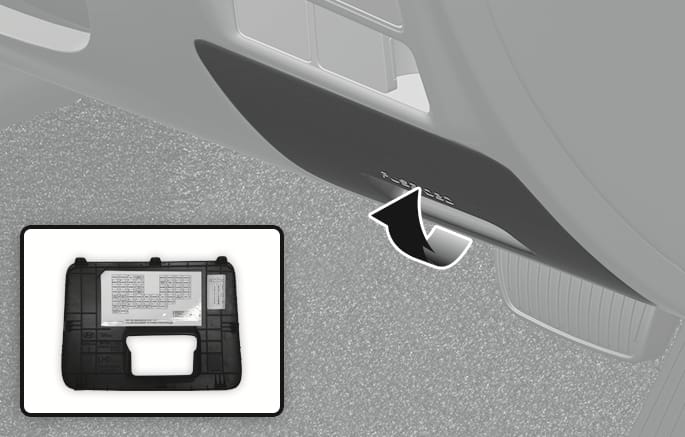

2C_InstrumentPanelFuseLabel
Inside the fuse panel cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label in your vehicle.

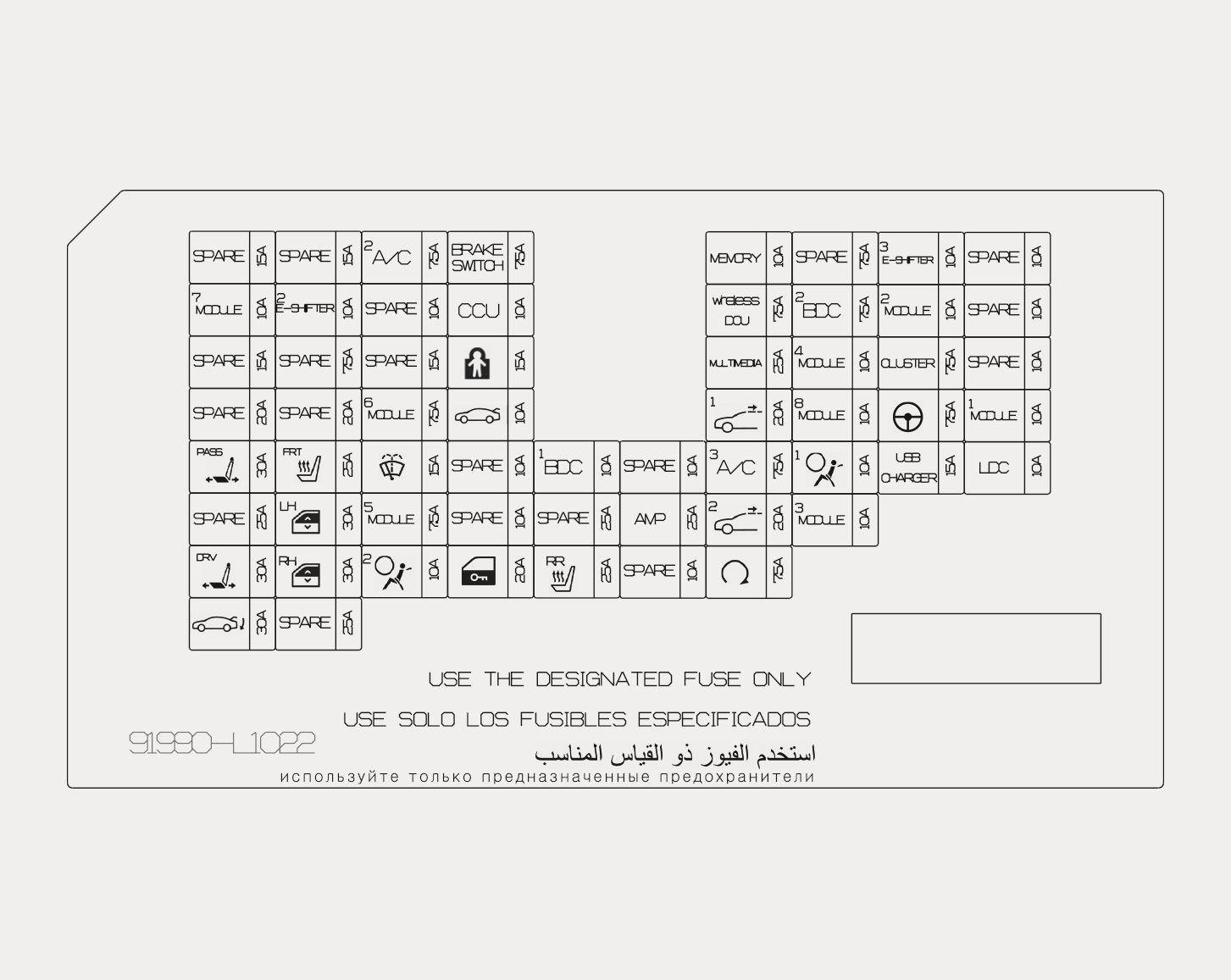

1C_InstrumentPanelFuseLabel_2
Instrument panel fuse panel
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
A/C2 |
|
7.5A |
E/R Junction Block (RLY.01), A/C Control Module, A/C Switch |
|
BRAKE SWTICH |
|
7.5A |
BDC, Stop Lamp Switch |
|
MEMORY |
|
10A |
Cluster Unit, Head-Up Display, A/C Switch, Mood Lamp Unit, Mood Lamp (Driver/Passenger), A/C Control Module, BDC, Driver/Passenger Door Mood Lamp, ADAS Unit (Parking) |
|
E-SHIFTER2 |
|
10A |
Electronic ATM Lever, SCU |
|
MODULE7 |
|
10A |
Driver/Passenger Power Outside Mirror, Driver Door Module, Driver IMS Control Module, Passenger Seat Relax Unit, Rain Sensor, Start/Stop Button, Driver/Passenger Smart Key Outside Handle, Data Link Connector, Hazard Switch, Power Trunk Unit, Multifunction Switch, E/R Junction Block (RLY.01), Telematics Unit |
|
E-SHIFTER1 |
|
10A |
Electronic ATM Lever, SCU |
|
SPARE (IG2) |
|
10A |
Standby Power |
|
CCU |
|
10A |
CCU |
|
wireless DCU |
|
7.5A |
DCU |
|
BDC2 |
|
7.5A |
BDC |
|
MODULE2 |
|
10A |
CCU, Stop Lamp Switch |
|
SPARE (B+) |
|
7.5A |
Standby Power |
|
CHILD LOCK |
|
15A |
Child Lock/Unlock Relay |
|
MULTIMEDIA |
|
25A |
CCNC Head Unit |
|
MODULE4 |
|
10A |
Head Lamp LH/RH, AMP, Driver IMS Control Module, Passenger Seat Relax Unit, CCNS Head Unit, Data Link Connector,Passenger Seat Relax Unit, CCNS Head Unit, Data Link Connector, Smart Phone Wireless Charger Unit, A/C Switch, A/C Control Module, Overhead Console, Electro Chromic Mirror |
|
CLUSTER |
|
7.5A |
Cluster Unit, Head-Up Display |
|
MODULE6 |
|
7.5A |
12V Lithium Auxiliary Battery, E/R Junction Block (RLY.06/RLY.07) |
|
TRUNK |
|
10A |
Trunk Relay |
|
S/ROOF1 |
|
20A |
Panorama Roof Glass Motor |
|
MODULE8 |
|
10A |
Driver Door Module |
|
MDPS |
|
7.5A |
MDPS Unit |
|
MODULE1 |
|
10A |
AMP, ADAS Unit (Parking),Overhead Console, CCNC Keyboard, DCU, CCU, BDC, CCNC Head Unit |
|
P/SEAT (PASS) |
|
30A |
Passenger Power Seat Switch, Passenger Seat Relax Unit |
|
SEAT HTR (FR) |
|
25A |
Front Air Ventilation Seat Control Module, Front Seat Heater Control Module |
|
Washer |
|
15A |
Multifunction Switch |
|
BDC1 |
|
15A |
Ignition Switch, BDC, ATM Lever |
|
A/C3 |
|
7.5A |
A/C Control Module |
|
A/BAG1 |
|
10A |
SRS Control Module |
|
USB CHR |
|
15A |
Front/Rear USB Charger Connector |
|
LDC |
|
10A |
Not Used |
|
P/WIN (LH) |
|
30A |
Passenger Safety Power Window Module (LHD), Driver Safety Power Window Module (RHD), Rear Door Safety Power Window Module RH, Rear Power Window Switch RH |
|
MODULE5 |
|
7.5A |
BDC |
|
AMP |
|
25A |
AMP |
|
S/ROOF2 |
|
20A |
Panorama Roof Blind Motor |
|
MODULE3 |
|
10A |
Vacuum Swtich, Front Radar, ADAS Unit (Parking), Multifunction Switch, Rear Corner Radar LH/RH, Crash Pad Switch (Upper), DCU, Front Console Switch, Front View Camera (ADAS) |
|
P/SEAT (DRV) |
|
30A |
Driver Power Seat Switch, Driver IMS Control Module |
|
P/WIN (RH) |
|
30A |
Driver Safety Power Window Module (LHD), Passenger Safety Power Window Module (RHD), Rear Door Safety Power Window Module LH, Rear Power Window Switch LH |
|
A/BAG2 |
|
10A |
SRS Control Module |
|
DOOR LOCK |
|
20A |
Door Lock/Unock Relay |
|
SEAT HTR (RR LH) |
|
25A |
Rear Seat Heater Control Module |
|
START |
|
7.5A |
BDC, ECM/PCM, E/R Junction Block (RLY.02) |
|
P/TRUNK |
|
30A |
Power Trunk Unit |

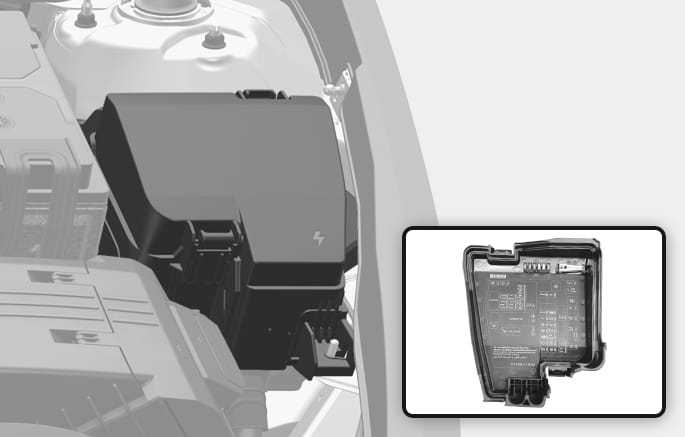

2C_EngineFuseLabel
Inside the fuse panel cover, you can find the label describing fuse names and ratings.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label in your vehicle.

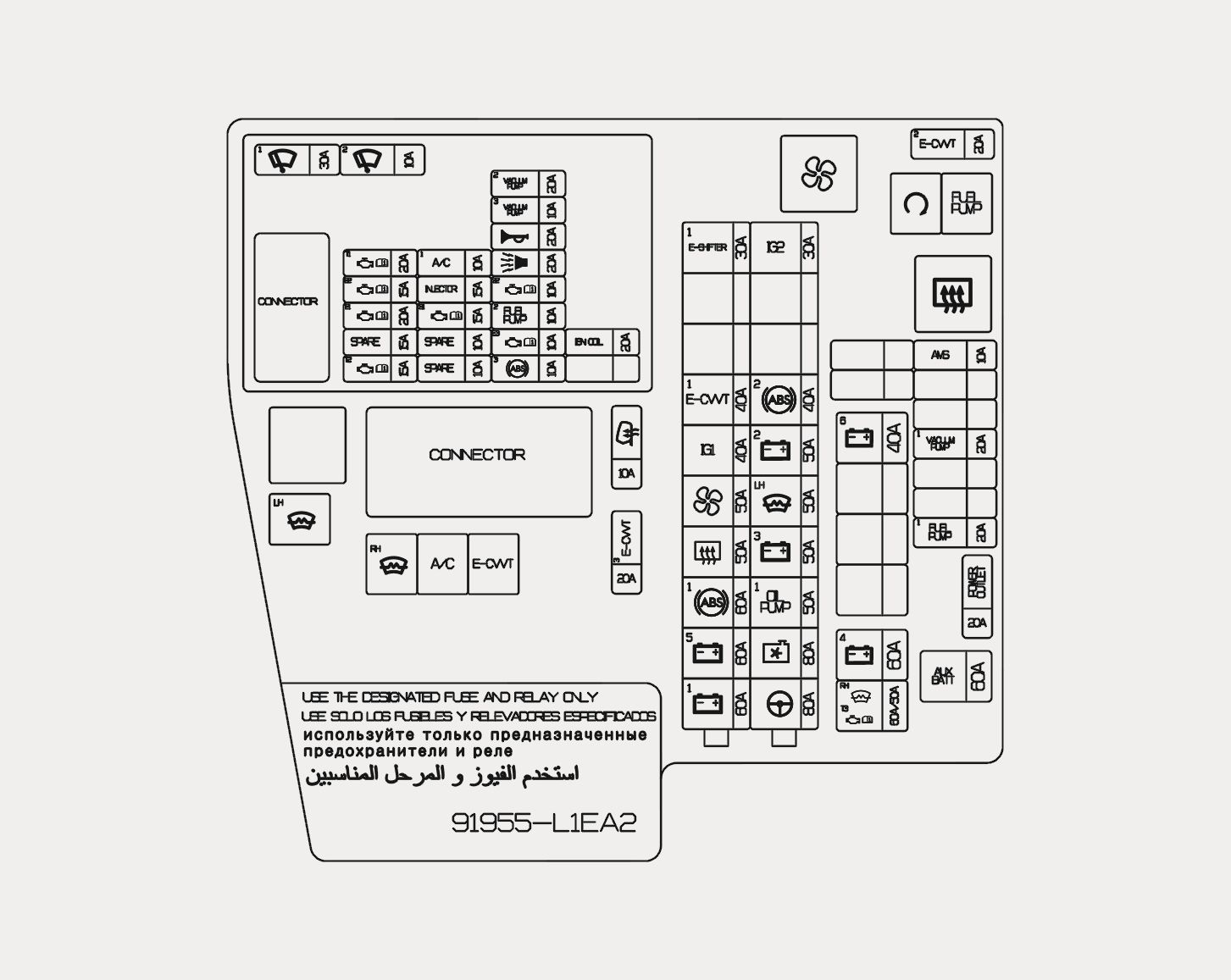

1C_EngineFuseLabel_2
Engine compartment fuse panel (Engine compartment junction block)
|
Type |
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
MULTI FUSE-A |
E-SHIFTER1 |
|
30A |
SCU |
|
E-CVVT1 |
|
40A |
RLY.09 |
|
|
IG1 |
|
40A |
PCB Block (ACC/IG1 Relay) |
|
|
BLOWER |
|
50A |
RLY.01 |
|
|
RR HTD |
|
50A |
RLY.04 |
|
|
ABS1 |
|
60A |
ESP Control Module |
|
|
B+5 |
|
60A |
PCB Block (Engine Control Relay, Fuse : F01, F03, F04, F15, F16, F08) |
|
|
B+1 |
|
60A |
PDC (Fuse : F09, F10, F18, F33, F34, F44, F51, F52, F58) |
|
|
MULTI FUSE-B |
IG2 |
|
30A |
RLY.02, PCB Block (IG2 Relay) |
|
ABS2 |
|
40A |
ESP Control Module |
|
|
B+2 |
|
50A |
PDC (IPS2, IPS3, IPS4, IPS5, IPS6, IPS7) |
|
|
FR HTD LH |
|
50 A |
RLY.06 |
|
|
B+3 |
|
60A |
PDC (Fuse : F29, F48, F49, F53) |
|
|
C/FAN |
|
80A |
Cooling Fan Controller |
|
|
OIL PUMP1 |
|
50A |
Electronic Oil Pump |
|
|
MDPS |
|
80A |
MDPS Unit |
|
|
FUSE |
B+4 |
|
60A |
PDC (Long Term Load Latch Relay, IPS3, Fuse : F04, F12, F20, F28, F37, F54, F55) |
|
TCU3 |
|
60A |
TCM |
|
|
FR HTD RH |
|
50 A |
RLY.07 |
|
|
AUX BATT |
|
60A |
12V Lithium Auxiliary Battery |
|
|
E-CVVT2 |
|
20A |
ECM |
|
|
B+6 |
|
40A |
PDC (IPS9, IPS11, IPS12) |
|
|
AMS |
|
10A |
Battery Sensor |
|
|
Vacuum Pump1 |
|
20A |
PCB Block (Vacuum Pump Relay) |
|
|
FUEL PUMP1 |
|
10A |
RLY.03 |
|
|
Power Outlet |
|
20A |
Front Power Outlet |
|
|
MTR MIRR |
|
10 A |
Driver/Passenger Power Outside Mirror(Defogger), ECM |
|
|
E-CVVT3 |
|
20A |
ECM |
Engine compartment fuse panel (PCB block)
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
WIPER1 |
|
30A |
Wiper Power Relay |
|
WIPER2 |
|
10A |
BDC, ECM |
|
TCU1 |
|
20A |
Not Used |
|
ECU2 |
|
15A |
ECM |
|
ECU1 |
|
20A |
ECM |
|
TCU2 |
|
15A |
TCM |
|
A/C 1 |
|
10A |
E/R Junction Block (RLY.08) |
|
Injector |
|
15A |
Injector #1~#4 |
|
Sensor1 |
|
15A |
Oxygen Sensor (Up/Down) |
|
Vacuum pump2 |
|
20A |
Vacuum Pump |
|
Vacuum pump3 |
|
10A |
ESP Control Module |
|
HORN |
|
20A |
Horn Relay |
|
B/Alarm |
|
10A |
Burglar Alarm Relay |
|
Sensor2 |
|
10A |
Variable Oil Pump Valve, Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Recirculation Valve, Cooling Fan Controller, E/R Junction Block (RLY.08) |
|
Fuel Pump2 |
|
10A |
E/R Junction Block (RLY.03) |
|
ECU3 |
|
10A |
ECM |
|
ABS3 |
|
10A |
ESP Control Module |
|
IGN COIL |
|
20A |
Ignition Coil #1~#4 |
