Blade replacement

When the wipers no longer clean adequately, the blades may be worn or cracked. Replace the wipers with new ones.

To prevent damage:

  • NEVER use non-specified wiper blades.

  • Lift the wiper arms when in the top wiping position.

  • Always return the wiper arms to the windshield before driving.

Wiper blades are subject to wear and tear.

To maintain optimal wiper blade performance, check the wiper blades every 6 months.

Normal wear of the wipers may not be covered by your vehicle warranty.

Front windshield wiper blade replacement

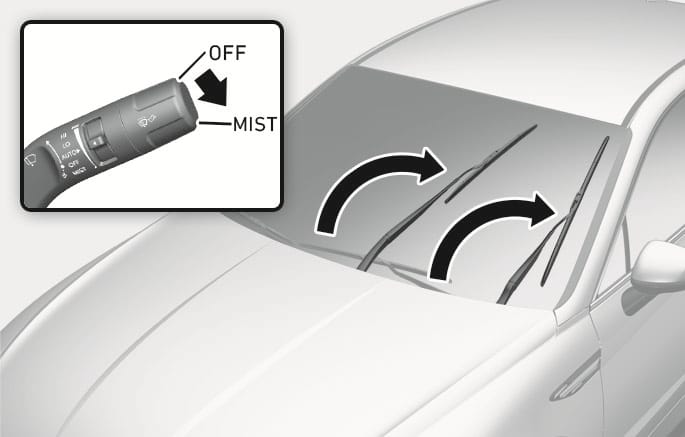

  1. Within 20 seconds of turning off the engine, push and hold the wiper lever down to the MIST position for about 2 seconds until the wipers move to the top wipe position.

    2C_FontWiperReplacementProcedure

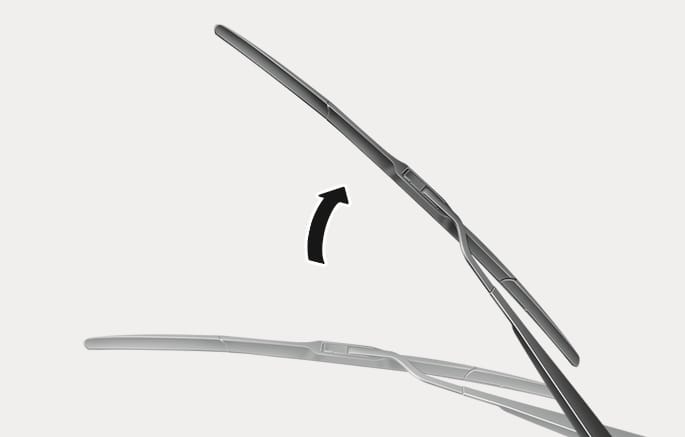

  2. Raise the wiper arm.

    2C_FontWiperReplacementProcedure_2

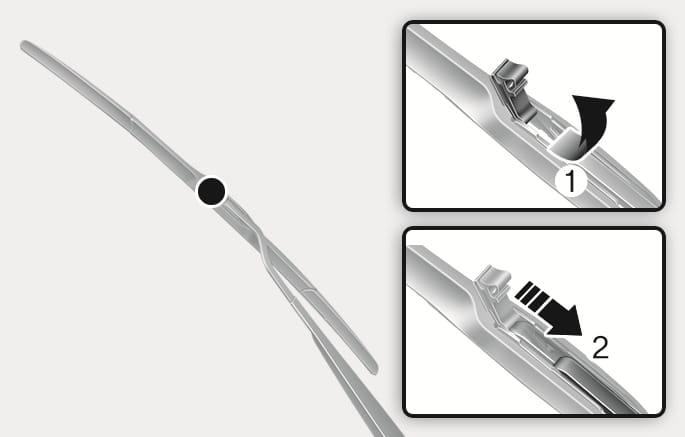

  3. Lift up the wiper blade clip (1). Then pull down the wiper blade (2). Remove the wiper blade from the wiper arm.

    2C_FontWiperReplacementProcedure_3

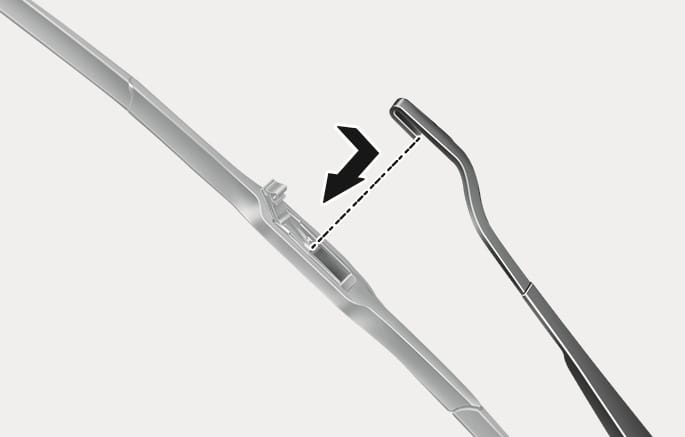

  4. Install a new wiper blade assembly in the reverse order of removal.

    2C_FontWiperReplacementProcedure_4

  5. With the Engine Start/Stop button in the ON position, turn the wiper switch to any ON position to return the wipers to the bottom resting position.

  • Avoid letting the wipers touch the windshield when the wiper blade is disassembled to prevent windshield damage.

  • The wiper may not operate for about 10 seconds if the wiper is operated without washer fluid or the blades are frozen to prevent damage to the motor.
