Forward Collision-Avoidance Assist (FCA)

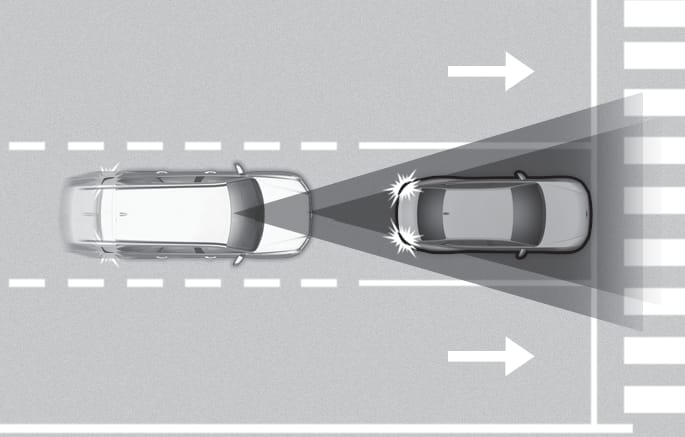

Basic function

B0311KO01

Forward Collision-Avoidance Assist detects a vehicle, a powered two-wheeler, a pedestrian, or a cyclist ahead on the road and may warn you of a possible collision with a warning message on the instrument cluster and a warning sound. Also, Forward Collision-Avoidance Assist may assist with braking your vehicle to help reduce collision speed or avoid a collision.

In addition, when driving at high speeds, Forward Collision-Avoidance Assist will help detect vehicles in front and adjacent lanes. If a collision is imminent when changing lanes, Forward Collision-Avoidance Assist will apply emergency braking to help prevent a collision. (if equipped)

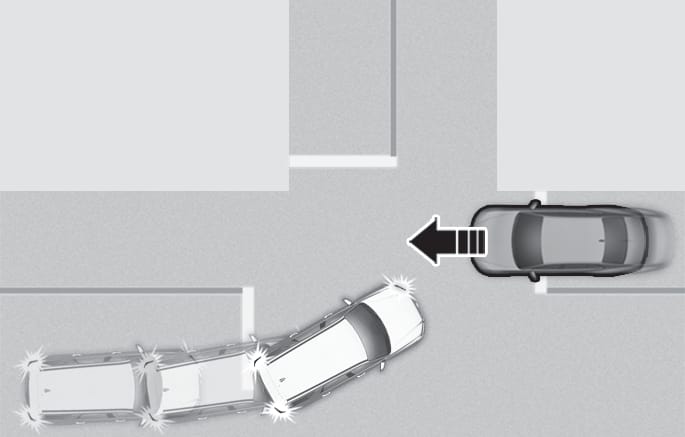

Junction Turning function

B0311KO02

Junction Turning function helps avoid a collision with an oncoming vehicle in an adjacent lane when turning left at a crossroad with the turn signal on by applying emergency braking.

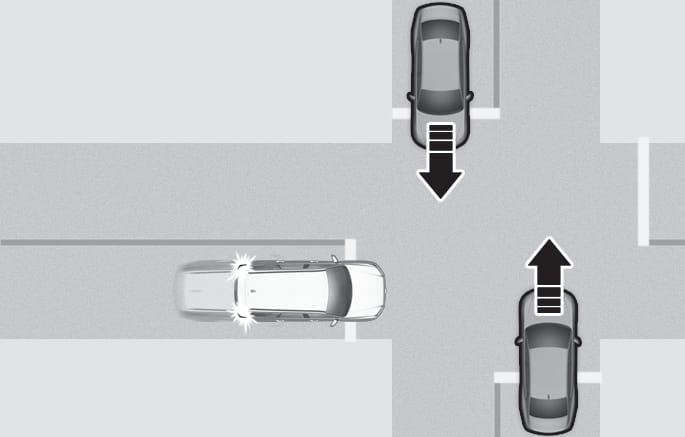

Junction Crossing function

B0311KO03

Junction Crossing function helps avoid a collision with oncoming vehicles on the left or right side when crossing an intersection by applying emergency braking.

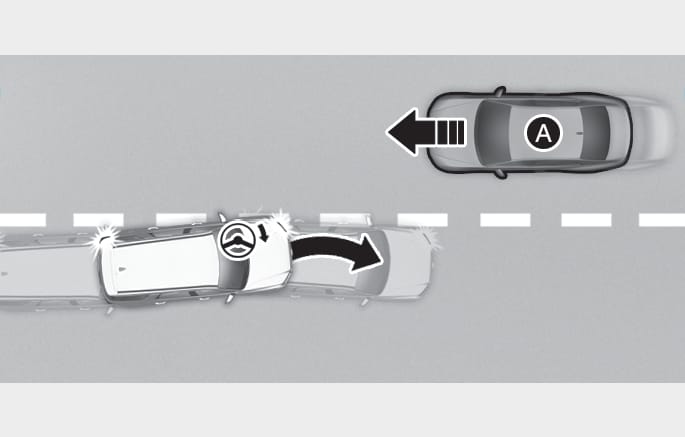

Lane-Change Oncoming function

B0311KO04

  1. : Oncoming vehicle

Lane-Change Oncoming function helps avoid a collision with an oncoming vehicle when changing lanes by assisting the driver’s steering.

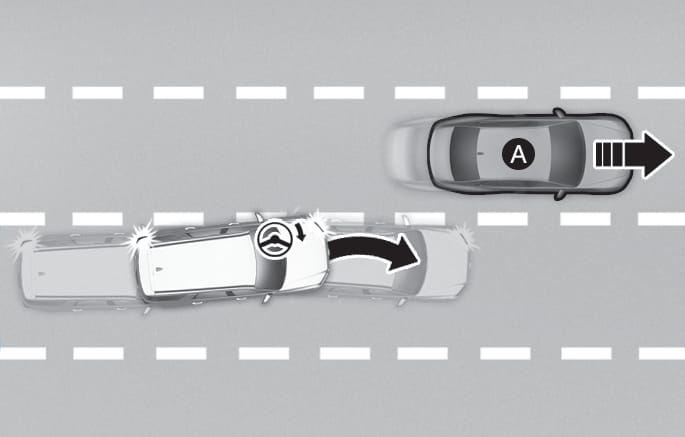

Lane-Change Side function

B0311KO05

  1. : Front-side vehicle

Lane-Change Side function helps avoid a collision with the vehicle ahead in the next lane when changing lanes by assisting the driver’s steering.

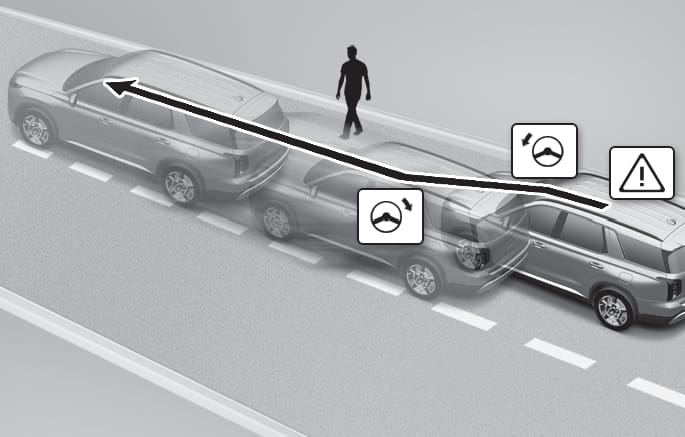

Evasive Steering Assist function

B0311KO06

  • Driver steering assist

    Evasive Steering Assist function helps avoid a collision with a vehicle, pedestrian or cyclist ahead in the same lane. When a risk of collision is detected, Evasive Steering Assist function will warn the driver and if the driver steers to avoid collision it will assist the driver’s steering.

  • Evasive steering assist

    Evasive Steering Assist function helps avoid a collision with a pedestrian or cyclist ahead in the same lane. When a risk of collision is detected, Evasive Steering Assist function will warn the driver and if there is space to avoid collision in the lane, it will assist the driver’s steering.

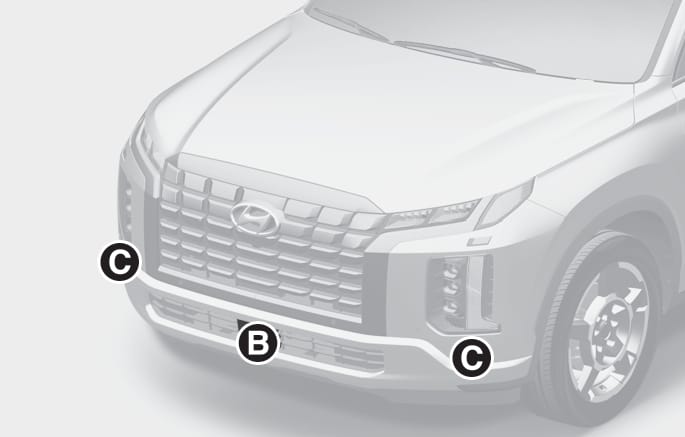

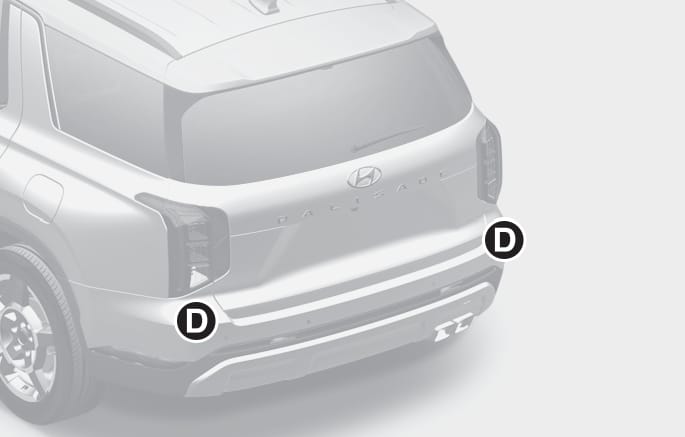

Detecting sensor

B0311KO07

B0311KO08

B0311KO09

  1. : Front view camera
  2. : Front radar
  3. : Front corner radar (if equipped)
  4. : Rear corner radar (if equipped)

Refer to the picture above for the detailed location of the detecting sensors.

Take the following precautions to maintain optimal performance of the detecting sensor:

  • Never disassemble the detecting sensor or sensor assembly, or cause any damage to it.

  • If the detecting sensors have been replaced or repaired, have the vehicle inspected by an authorized HYUNDAI dealer.

  • Never install any accessories or stickers on the front windshield, or tint the front windshield.

  • Exercise extreme caution to keep the front view camera dry.

  • Never place any reflective objects (for example, white paper, mirror) over the dashboard.

  • Do not place any objects near the front windshield or install any accessories on the front windshield. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.

  • Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard, near the front radar cover.

  • Do not change the position of the license plate. The front radar’s detection and control performance may be affected.

  • Always keep the front radar and cover clean and free of dirt and debris.

    Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.

  • If the radar or around the radar has been damaged or impacted in any way, Forward Collision-Avoidance Assist may not properly operate even though a warning message does not appear on the cluster. Have the vehicle inspected by an authorized HYUNDAI dealer.

  • Use only genuine HYUNDAI parts to repair or replace a damaged front radar cover. Do not apply paint to the front radar cover.

  • Vehicles equipped with front corner radar and/or rear corner radar

    • Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard, near the front corner radar or rear corner radar.

    • The function may not work properly when the bumper has been replaced, or the surroundings of the front corner radar or rear corner radar has been damaged or paint has been applied.

    • If a trailer, carrier, etc., is installed, it may adversely affect the performance of the rear corner radar or Forward Collision-Avoidance Assist may not operate properly.
