Engine Start/Stop Button

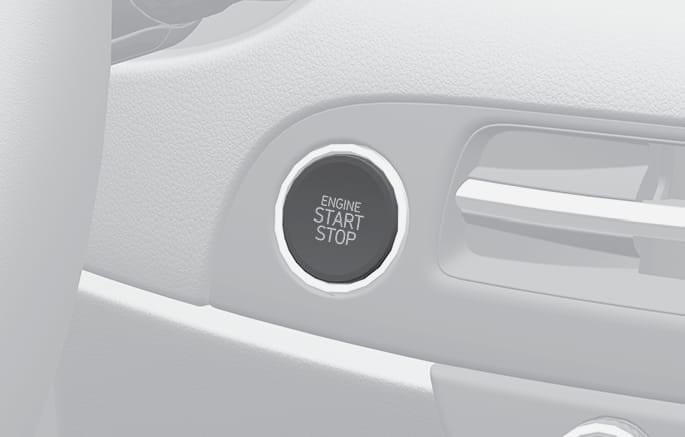

B0246KO01

Whenever the front door is opened, the Engine Start/Stop button will illuminate and will go off 30 seconds after the door is closed.

  • To reduce risk of serious injury or death, NEVER allow children or any person who is unfamiliar with the vehicle to touch the Engine Start/Stop button or related parts. Unexpected and sudden vehicle movement can occur.

  • To turn the vehicle off in an emergency:

    Press and hold the Engine Start/Stop button for more than two seconds OR Rapidly press and release the Engine Start/Stop button three times (within three seconds).

    If the vehicle is still moving, you can restart the vehicle without depressing the brake pedal by pressing the Engine Start/Stop button with the gear in the N (Neutral) position.

  • NEVER press the Engine Start/Stop button while the vehicle is in motion except in an emergency. This will result in the vehicle turning off and loss of power assist for the steering and brake systems. This may lead to loss of directional control and braking function, which could cause an accident.

  • Before leaving the driver's seat, always make sure the gear is in the P (Park) position, set the parking brake, press the Engine Start/Stop button to the OFF position, and take the Smart Key with you. Unexpected vehicle movement may occur if these precautions are not followed.

  • NEVER reach through the steering wheel for the Engine Start/Stop button or any other control while the vehicle is in motion. The presence of your hand or arm in this area may cause a loss of vehicle control resulting in an accident.

Engine Stop/Start Button Positions

Button Position

Action

Notes

OFF

To turn off the engine, press the Engine Start/Stop button with the vehicle shifted to P (Park).If the Engine Start/Stop button is pressed with the vehicle shifted to D (Drive), R (Reverse) or N (Neutral), the gear automatically shift to P (Park).

ACC

Press the Engine Start/Stop button when the button is in the OFF position without depressing the brake pedal.

Some of the electrical accessories are usable.

If you leave the Engine Start/Stop button in the ACC position for more than one hour, the battery power will turn off automatically to prevent the battery from discharging.

ON

Press the Engine Start/Stop button while it is in the ACC position without depressing the brake pedal.

The warning lights can be checked before the engine is started.

Do not leave the Engine Start/Stop button in the ON position when the engine is not running to prevent the battery from discharging.

START

To start the engine, depress the brake pedal and press the Engine Start/ Stop button with the gear shifted to the P (Park) or the N (Neutral) position.

For your safety, start the engine with the gear shifted to the P (Park) position.

If you press the Engine Start/Stop button without depressing the brake pedal, the engine does not start and the Engine Start/Stop button changes as follows:

OFF > ACC > ON > OFF

To prevent vehicle battery discharge, the Engine Start/Stop button changes to the OFF position when the Engine Start/Stop button is in the ACC or ON position with the gear in P (Park) for a certain period of time. When the function operates, the tail lamps will turn off. To use the tail lamps again, turn the headlight switch located on the steering column to the OFF and ON position again.

Starting the Engine

  • Always wear appropriate shoes when operating your vehicle. Unsuitable shoes, such as high heels, ski boots, sandals, flipflops, etc., may interfere with your ability to use the brake and accelerator pedals.

  • Do not start the vehicle with the accelerator pedal depressed.

    The vehicle can move which can lead to an accident.

  • Wait until the engine RPM is normal. The vehicle may suddenly move if the brake pedal is released when the RPM is high.

  • The vehicle will start by pressing the Engine Start/Stop button, only when the smart key is in the vehicle.

  • Even if the smart key is in the vehicle, and when it is far away from the driver, the engine may not start.

  • When the Engine Start/Stop button is in the ACC or ON position, if any door is open, the system checks for the smart key. When the smart key is not in the vehicle, the '' indicator will blink and the warning 'Key not in vehicle' will come on. When all doors are closed, the chime will also sound for about 5 seconds. Keep the smart key in the vehicle.

  1. Always carry the smart key with you.

  2. Make sure the parking brake is applied.

  3. Make sure the gear is shifted to P (Park) by pressing the P button.

  4. Depress the brake pedal.

  5. Press the Engine Start/Stop button.

  • Do not wait for the engine to warm up while the vehicle remains stationary.

    Start driving at moderate engine speeds. Steep accelerating and decelerating should be avoided.

  • Always start the vehicle with your foot on the brake pedal. Do not depress the accelerator while starting the vehicle. Do not race the engine while warming it up.

To prevent damage to the vehicle:

  • If the engine stalls while you are in motion, do not attempt to shift the gear to the P (Park) position.

    If traffic and road conditions permit, you may put the gear in N (Neutral) while the vehicle is still moving and press the Engine Start/Stop button in an attempt to restart the engine.

  • Do not push or tow your vehicle to start the vehicle.

To prevent damage to the vehicle:

Do not press the Engine Start/Stop button for more than 10 seconds except when the stop lamp fuse is blown.

When the stop lamp fuse is blown, you cannot normally start the engine. Replace the fuse with a new one. If you are not able to replace the fuse, you can start the engine by pressing and holding the Engine Start/Stop button for 10 seconds with the Engine Start/Stop button in the ACC position.

For your safety always depress the brake pedal before starting the vehicle.

Emergency Starting

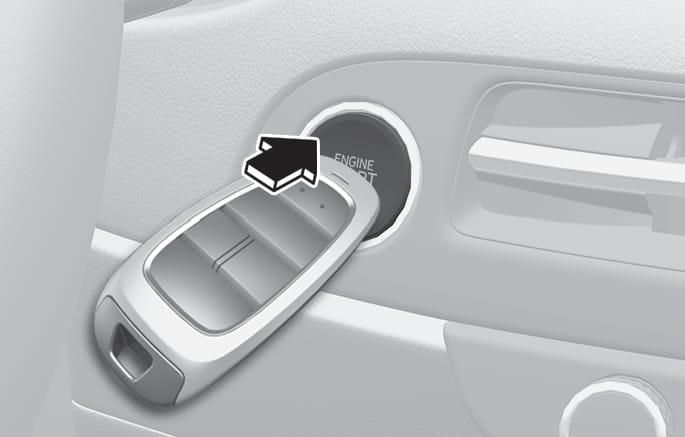

B0248KO01

If the smart key battery is weak or the smart key does not work correctly, you can start the vehicle by pressing the Engine Start/Stop button with the smart key in the direction of the picture above.

Turning Off the Engine

  1. Stop the vehicle and depress the brake pedal fully.

  2. Press the P button to shift to P (Park).

  3. Press the Engine Start/Stop button to the OFF position and apply the parking brake.

Remote Start

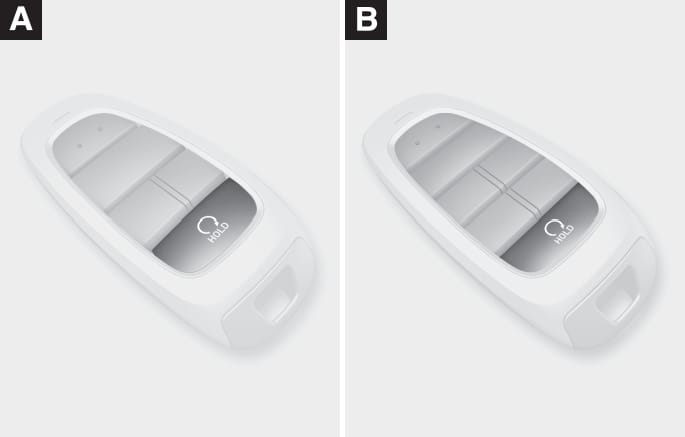

B0250EU01

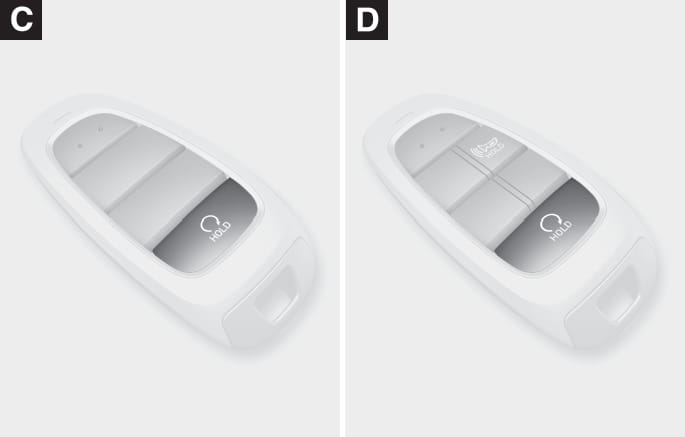

B0250EU02

You can start the vehicle using the Remote Start button of the smart key.

To start the vehicle remotely:

  1. Press the door lock button within 32 ft. (10 m) from the vehicle.

  2. Press the remote start () button for over 2 seconds within 4 seconds after locking the doors. The hazard warning lights will blink.

  3. To turn off the remote start function, press the remote start () button once.

  • The remote start () button may not operate if the smart key is not within 32 ft. (10 m).

  • The vehicle will not remotely start if the engine hood or liftgate is opened.

  • The vehicle must be in P (Park) for the remote start function to start.

  • The engine turns off if you get in the vehicle without a registered smart key.

  • The engine turns off if you do not get in the vehicle within 10 minutes after remotely starting the vehicle.

  • Do not idle the engine for a long period.
