Engine Compartment Panel Fuse Replacement

Blade fuse/Cartridge fuse

B0468KO03

B0468KO04

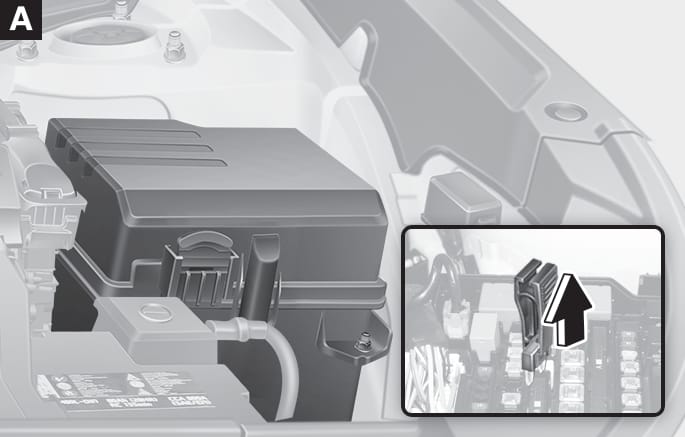

  1. : Blade type

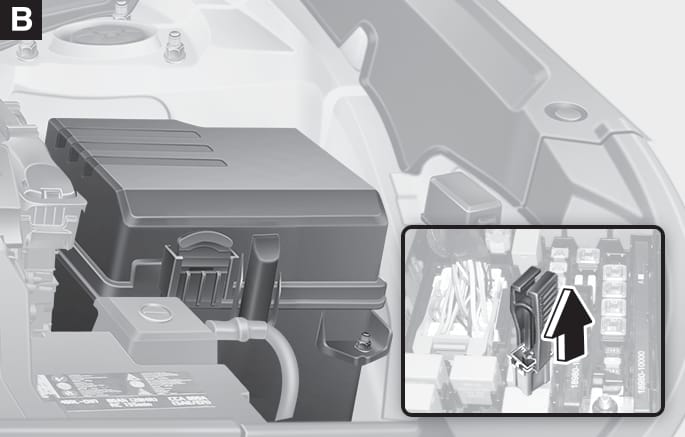

  2. : Cartridge type

  1. Turn the vehicle off.

  2. Turn all other switches off.

  3. Remove the fuse panel cover by pressing the tap and pulling up.

  4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

  5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

After checking the fuse panel in the engine compartment, securely install the fuse panel cover. You may hear a clicking sound if the cover is securely latched. If it is not securely latched, electrical failure may occur from water contact.

Multi fuse

B0468KO02

If the multi fuse is blown, it must be removed as follows:

  1. Turn off the engine.

  2. Disconnect the negative battery cable.

  3. Remove the fuse panel cover by pressing the tab and pulling it up.

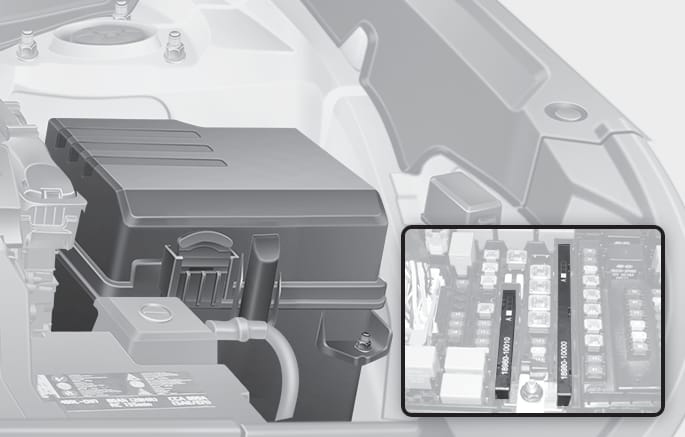

  4. Remove the nuts shown in the picture above.

  5. Replace the fuse with a new one of the same rating.

  6. Reinstall in the reverse order of removal.

If the multi fuse is blown, consult an authorized HYUNDAI dealer.
