Air Ventilation Seats

The air ventilation seats are provided to cool the front seats by blowing air through small vent holes on the surface of the seat cushions and seatbacks.

When the operation of the air ventilation seat is not needed, keep the air ventilation seats OFF.

To prevent damage to the air ventilation seats:

  • Never use a solvent such as paint thinner, benzene, alcohol or gasoline to clean the seats.

  • Avoid spilling liquids on the surface of the front seats and seatbacks; this may cause the air vent holes to block and not work properly.

  • Do not place materials such as plastic bags or newspapers under the seats. They may block the air intake causing malfunction of the air vent.

  • Do not change the seat covers. It may damage the air ventilation seat.

  • If the air vents do not operate, restart the vehicle. If there is no change, have your vehicle inspected by an authorized HYUNDAI dealer.

B0057KO01

B0057KO02

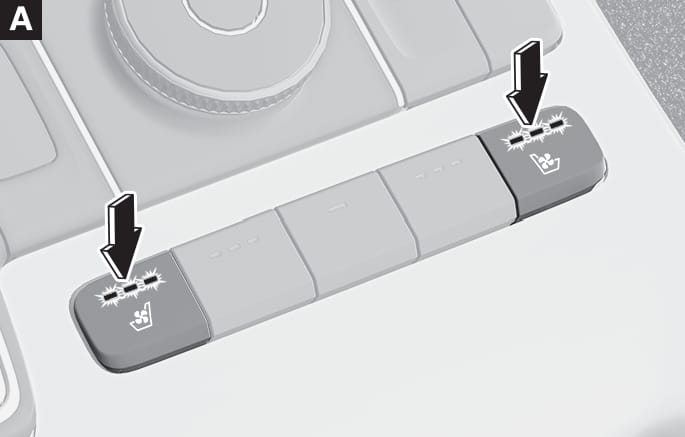

  1. : Front seat
  2. : Rear seat

  • Each time you push the switch, the temperature setting of the seat changed as shown below:

  • Front seat

  • 2nd row seat

  • If the air ventilation seat is positioned at HIGH, the airflow speed will increase according to vehicle speed.

  • Use the air ventilation seat with the air conditioning on for more effective ventilation.

  • It may take 3-5 minutes after switch operation to feel the temperature change.

  • When pressing the switch for more than 1.5 seconds with the air ventilation seat operating, the operation will turn OFF.

  • The air ventilation seats defaults to the OFF position whenever the ignition switch is placed to the ON position.

  • Climate Settings for Auto-Adjustment (for driver’s seat)

    The air ventilation seat automatically controls the seat temperature depending on the ambient temperature when the vehicle is running. To use this function, it must be enabled from the Settings menu in the infotainment system screen.

    Select:

    • Setup > Vehicle > Seat > Warmer/Ventilation Features > Driver Seat Warmer/Ventilation

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

  • If the outside temperature is under approximately 33 °F (2 °C), the air ventilation seat may not operate.

  • Use the air ventilation seat when the climate control system is on. Using the air ventilation seat for prolonged periods of time with the climate control system off could cause the climate control seat performance to be reduced.

To prevent damage to the air ventilation seat:

  • Use the air ventilation seat ONLY when the climate control system is on. Using the air ventilation seat for prolonged periods of time with the climate control system off could cause the air ventilation seat to malfunction.

  • Never use a solvent such as paint thinner, benzene, alcohol or gasoline to clean the seats.

  • Avoid spilling liquids on the surface of the front seats and seatbacks; this may cause the air vent holes to become blocked and not work properly.

  • Do not place materials such as plastic bags or newspapers under the seats. They may block the air intake causing the air vents to not work properly.

  • Do not change the seat covers. It may damage the air ventilation seat.

  • If the air vents do not operate, restart the vehicle. If there is no change, have the vehicle inspected by an authorized HYUNDAI dealer.
