Rear Seats

Take the following precautions:

  • Adjusting the seats

    • NEVER attempt to adjust the seat while the vehicle is moving. The seat may suddenly move and may injure the passenger.

    • Make sure that the seat is locked in place after the adjustment. If not, the seat might move unexpectedly resulting in an accident.

  • Folding the seats

    • Do not fold the seatback when the seat is occupied (for example, passenger, pets or luggage). It may injure the passenger or pet, or damage the luggage.

    • Never allow passengers to sit on top of the folded down seatback while the vehicle is moving. This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in case of an accident or sudden stop.

    • Objects carried on the folded down seatback should not extend higher than the top of the front seatbacks. This could allow cargo to slide forward and cause injury or damage during sudden stops.

    • When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback. In an accident or sudden stop, the unlocked seatback could allow cargo to move forward with great force and enter the passenger compartment, which could result in serious injury or death.

  • Loading cargo

    • Make sure the engine is off, the gear shifted to P (Park), and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shift button or shift dial is inadvertently pressed or rotated to another position.

    • When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.

  • Do not place objects in the rear seats, since they cannot be properly secured and may hit vehicle occupants in a collision causing serious injury or death.

Do not allow your hands or fingers to get caught in the seat mechanisms while adjusting the seats.

To prevent damage to the vehicle:

  • Rear seat belts

    Before folding the seatback, insert the seat belt buckle in the holder between the seatback and cushion. And insert the seat belt webbing in the guide to prevent the seat belt from being damaged.

  • Cargo

    Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.

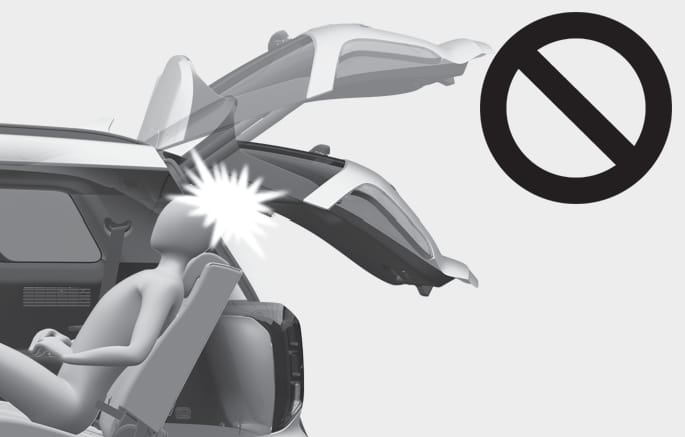

B0053EU01

Be careful when closing the liftgate with passengers seated on the third row seat. If the passengers head is not properly against an adjusted head restraint or a tall person is seated, the liftgate may hit the passengers head, which could cause injury.

Manual adjustment (second row)

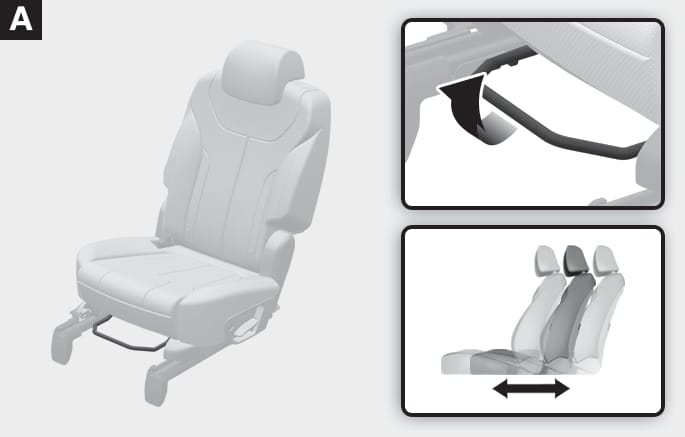

B0053EU02

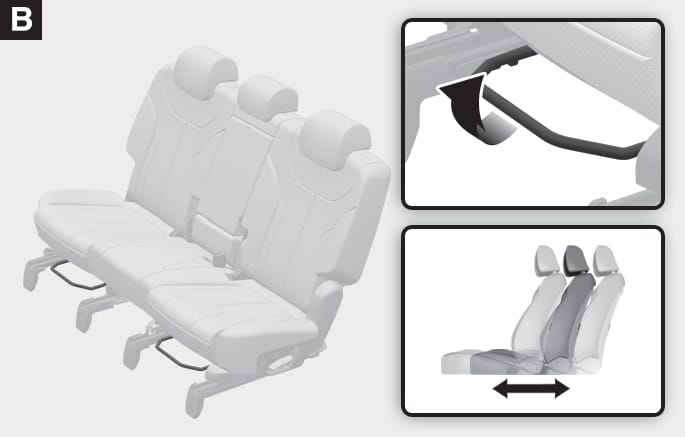

B0053EU14

  1. : 7-seater
  2. : 8-seater

Forward and rearward

To move the seat forward or rearward:

  1. Pull the seat slide adjustment lever up and hold it.

  2. Slide the seat to the position you desire.

  3. Release the lever and make sure the seat is locked in place.

If equipped with 7-seater or 8-seater, the central seat moves together with the drivers side second row seat.

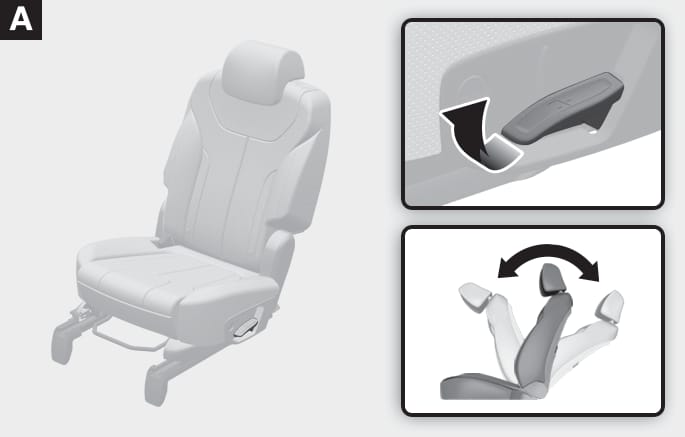

B0053EU03

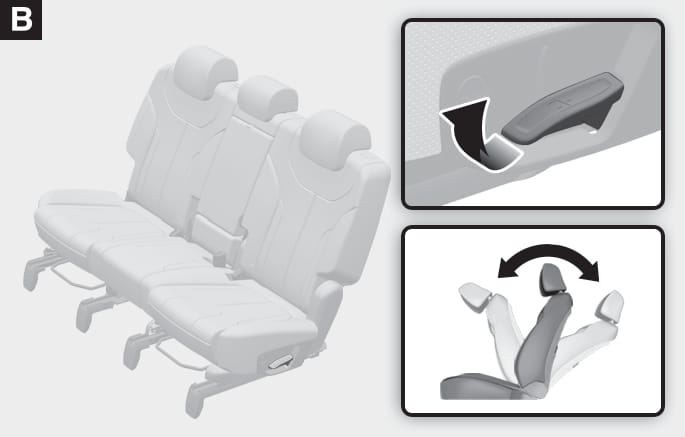

B0053EU15

  1. : 7-seater
  2. : 8-seater

Seatback angle

To recline the seatback:

  1. Pull up the seatback recline lever.

  2. Hold the lever and adjust the seatback of the seat to the position you desire.

  3. Release the lever and make sure the seatback is locked in place. The lever MUST return to its original position for the seatback to lock.

If equipped with 7-seater or 8-seater, the central seat moves together with the drivers side second row seat.

* The seatbacks can be folded with the seatback recline lever.

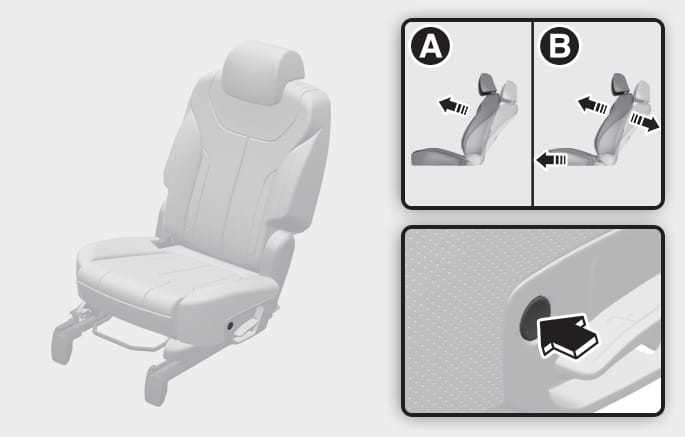

B0053EU04

Seatback folding / Walk-in function

  • The seatback will fold and the seat will slightly move forward, if the switch is pressed.

  • The function operates when the gear is in P (Park) with the door open.

  • While the seatback folding or walk-in function is operating, if the switch is pressed, the seat will stop moving. If the switch is pressed again, the seat will continue the adjustment.

  • While the seatback folding or walk-in function is operating, if the engine is started, the seat will stop moving momentarily. If the engine starts, the seat will continue the adjustment.

If equipped with 7-seater or 8-seater, the central seat moves together with the drivers side second row seat.

Manual adjustment (third row)

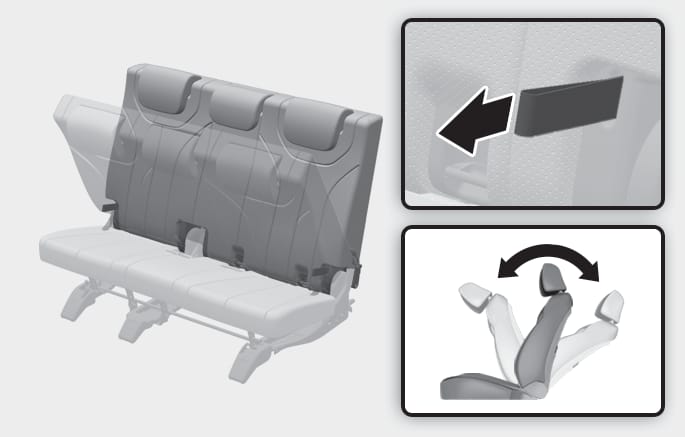

B0053EU05

Seatback angle

To recline the seatback:

  1. Pull the seatback recline strap.

  2. Hold the strap and adjust the seatback angle to the position you desire.

  3. Release the strap and make sure the seatback is locked in place. The strap MUST return to its original position for the seatback to lock.

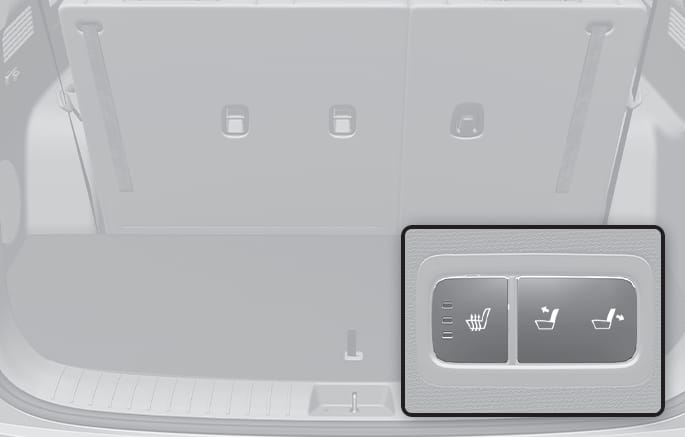

Power adjustment (third row)

B0053EU06

Seatback angle

Press the switch () or () to adjust the seatback angle.

When the seatback is folded, press the switch (), the seatback will automatically unfold.

Walk-in seat (2nd row seat)

B0053KO11

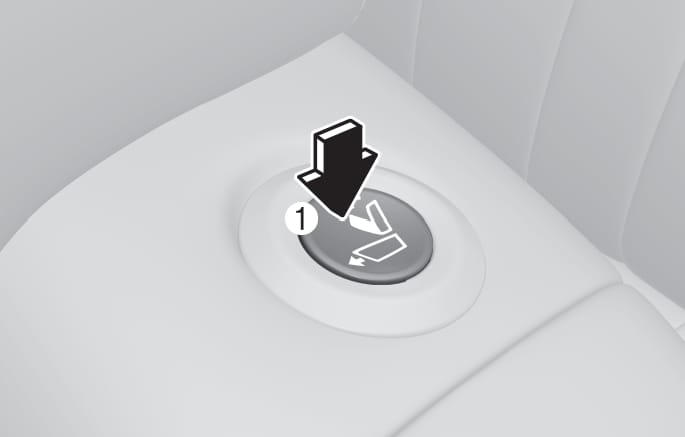

B0053KO12

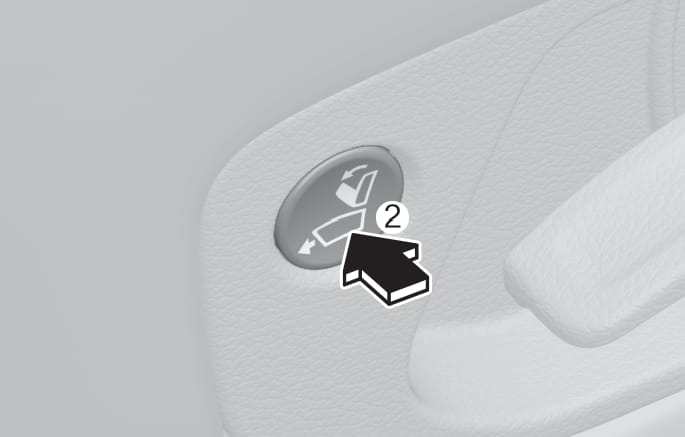

B0053KO13

To get in or out of the 3rd row seat,

  1. Routing the seat belt webbing through the rear seat belt guide clip. After inserting the seat belt, tighten the belt webbing by pulling it up.

  2. Push the walk-in switch located in upper part (1) of 2nd row seat or side part (2) of 2nd row seat.

  3. The 2nd row seatback will be folded and push the seat to the farthest forward position.

After getting in or out, slide the 2nd row seat to the farthest rearward position and pull the seatback firmly backward until it clicks into place. Make sure that the seat is locked in place.

Never attempt to adjust while the vehicle is moving or the 2nd row seat is occupied as the seat may suddenly move and cause the passenger on the seat to be injured.

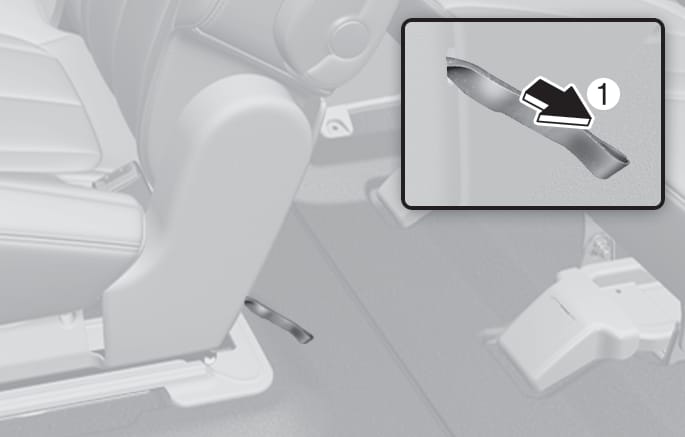

B0053EU16

  • If the walk-in switch does not work, pull the strap (1) located on the lower left side of the seat. Then you can move the 2nd row seat forward.

    (7 passenger vehicle

    • Left seat: lower right side

    • Right seat: lower left side

      8 passenger vehicle

    • Right seat: lower left side)

  • Never attempt to pull the strap (1) while the 2nd row seat is occupied as the seat may suddenly move and cause the passenger on the seat to be injured. Use only the strap when the walk-in switch does not work.

Folding the rear seats

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

Before folding the rear seats, lower the head restraint to the lowest position and store the seat belt buckles in the holders and webbing in the guide.

If you want to use the rear seats, make sure the seatbacks are upright and securely locked in place. Always return the head restraint and seatbelt to its proper position.

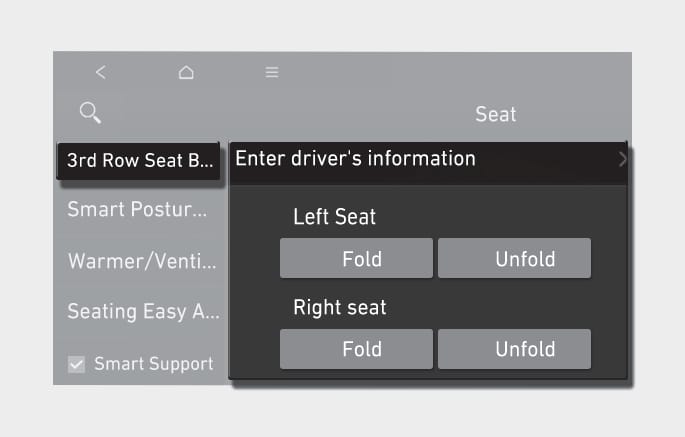

B0053EE24

Third row seatback folding

Second and third row seatback folding can be done from the Settings menu in the infotainment system screen. Select:

  • Setup > Vehicle > Seat > 3rd Row Seat Back Folding

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

Rear seatback manual folding

To fold down the rear seatback:

  1. Set the front seatback to the upright position and if necessary, slide the front seat forward.

  2. Lower the rear head restraints to the lowest position.

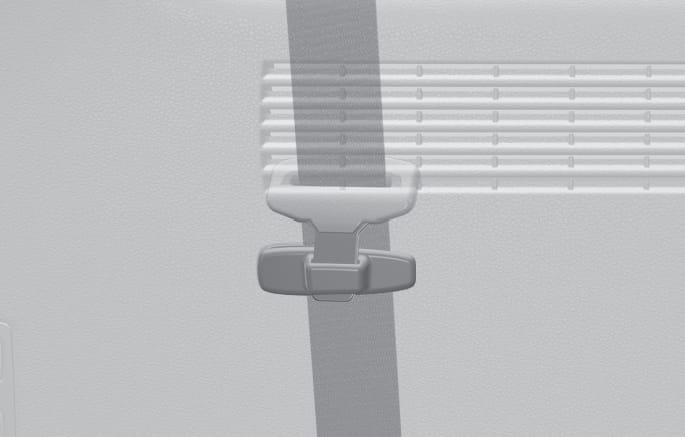

    B0053KO11

  3. Route the seat belt webbing through the rear seat belt guides to prevent the belts from being trapped behind or under the seats.

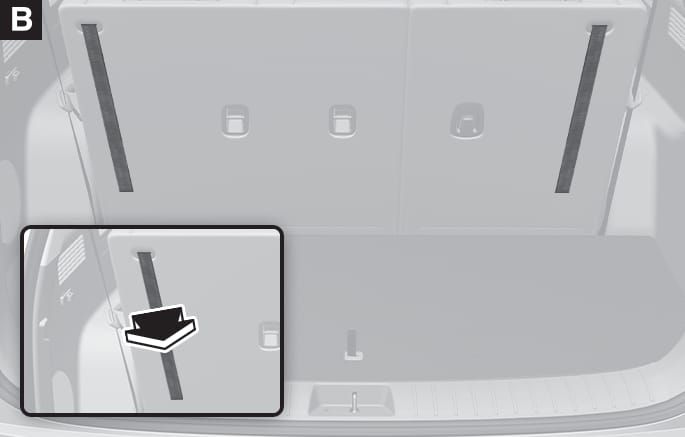

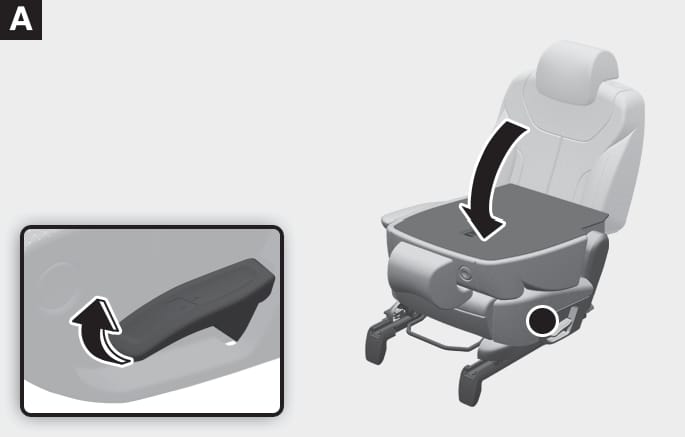

    B0053EU07

    B0053EU08

    1. : 2nd row seat
    2. : 3rd row seat

  4. Pull on the seatback folding lever (2nd row seat) or pull the strap backward (3rd row seat), then fold the seat toward the front of the vehicle. When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback.

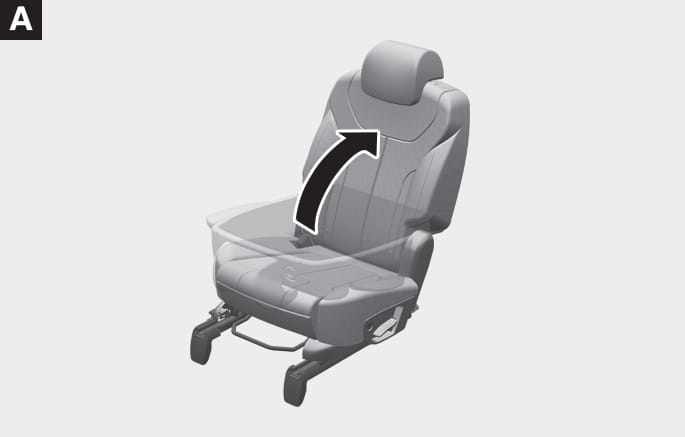

    B0053EU09

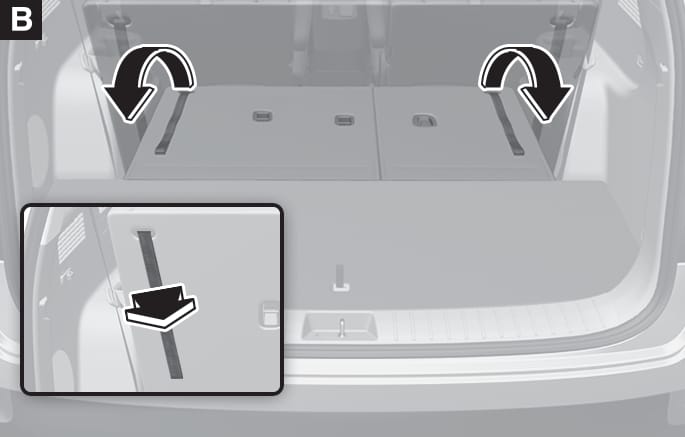

    B0053EU10

    1. : 2nd row seat
    2. : 3rd row seat

  5. To use the rear seat, lift and unfold the seatback to the upright position by pulling up the folding lever (2nd row seat) or pulling strap backward (3rd row seat). Push the seatback firmly until it clicks into place. Make sure the seatback is locked in place.

  6. Return the rear seat belt to the proper position.

When returning the rear seatback from a folded to an upright position, hold the seatback and return it slowly. Ensure that the seatback is completely locked into its upright position by pushing on the top of the seatback. In an accident or sudden stop, the unlocked seatback could allow cargo to move forward with great force and enter the passenger compartment, which could result in serious injury or death.

Do not place objects in the rear seats, since they cannot be properly secured and may hit vehicle occupants in a collision causing serious injury or death.

Make sure the engine is off, the shift button is in P (Park), and the parking brake is securely applied whenever loading or unloading cargo. Failure to take these steps may allow the vehicle to move if the shift button is inadvertently shifted to another position.

  • Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.

  • When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.

  • Unsecured cargo in the passenger compartment can cause damage to the vehicle or injury to it's occupants.

Seatback remote folding/unfolding (luggage compartment)

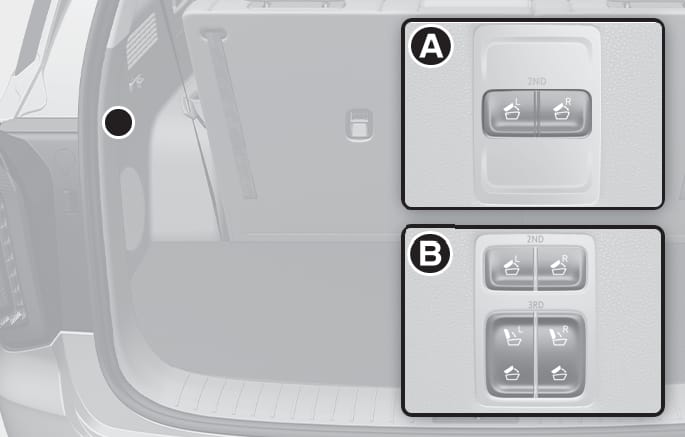

B0053EU11

  • The function operates when the gear is in P (Park) with the door open.

  • While the seatback is folding or unfolding, if the switch is pressed, the seat will stop moving. If the switch is pressed again, the seat will continue the adjustment.

  • While the seatback is folding or unfolding, if the engine is started, the seat will stop moving momentarily. If the engine starts, the seat will continue the adjustment.

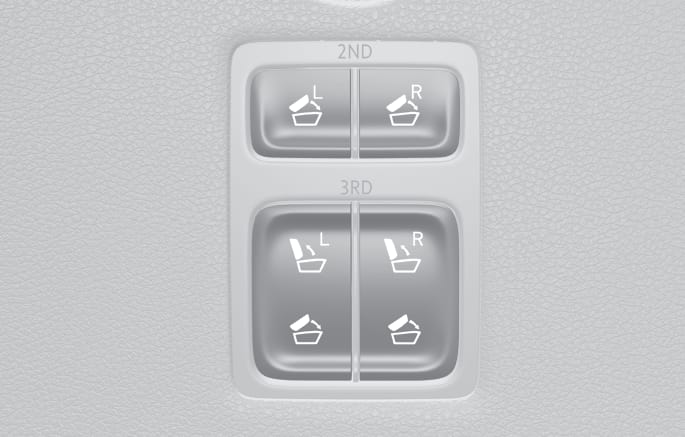

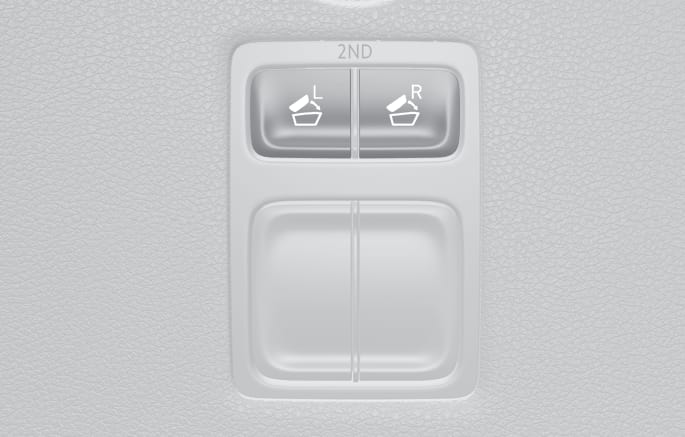

Switch type

Seat adjustment

Type A

Press switch or switch, the second row left or right seatback will fold.

Type B

Press switch or switch, the second row left or right seatback will fold.Press switch or switch, the third row left or right seatback will fold. If the switch is pressed again, the seatback will unfold.

The 3rd row seat that is remotely folded or unfolded, is controlled only when the shift button is in “P” with Start ON, or the shift button is in “N” and the parking brake is in “ON.”

However, the seat is controlled at any condition in Start OFF state. When the vehicle moves or shifts while the seat is being controlled, the seat may stop operation.

When you press the switch once more while folding and unfolding the seat, operation stops. When you press the switch again, the operation resumes.

With the seat folded, when you press the angle adjusting switch, the seat is unfolded.

Without starting the engine, the 3rd row seat can be folded or unfolded. When this is attempted more than 10 times, the battery may discharge prematurely.

Do not apply excessive force to the 3rd row seat while in operation. It may damage the seat.

When you operate the seat over 5 times with no rest, the electric motor may be overloaded. In this case, the seat changes to overheat prevention mode. Then you cannot operate the seat by pressing the switch. Leave the seat for over 1 minute for later operation.

Detection of object caught

While folding or unfolding the 3rd row seat, when a consistent force is detected, the seat returns to its original position or stops operation.

However, this function may not work when the detected resistance is below a specific level or the seat is almost folded or unfolded. When a strong impact is applied to the seat, the object detection function may be activated even if no obstacle is present.

When any object caught is detected multiple times while operating the seat once, folding and unfolding are repeated consecutively and then the operation may stop. In this case, check that any object is caught and then operate the switch again to check for abnormality.

When the object detection is enabled, the angle of the seat back may be changed. When you operate the seat once by pressing the folding button, the angle of the seat back is reset.

Do not place any part of your body or anything in the operating area to intentionally check the detection of any object caught.

For safety, when folding or unfolding the 3rd row seat, make sure that there is no part of body or object. To prevent damage to the seatbelt, insert it into its holder and store it in the retractor inside a seat.

When the child restraint system (CRS) is installed on the 3rd row seat, remove the CRS and then operate the seat.

When there is any object on the cushion of the 3rd row seat, remove it and then operate the seat.

To avoid interference with a front seat, keep the backrest of the front seat straight and move it forward for smooth operation.

Armrest (Second row seat)

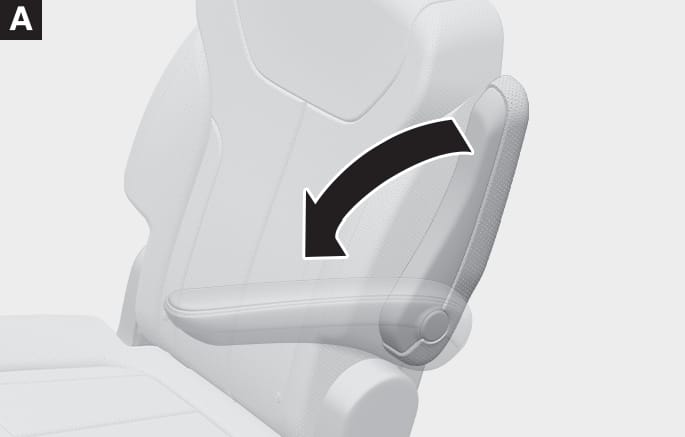

B0053KO09

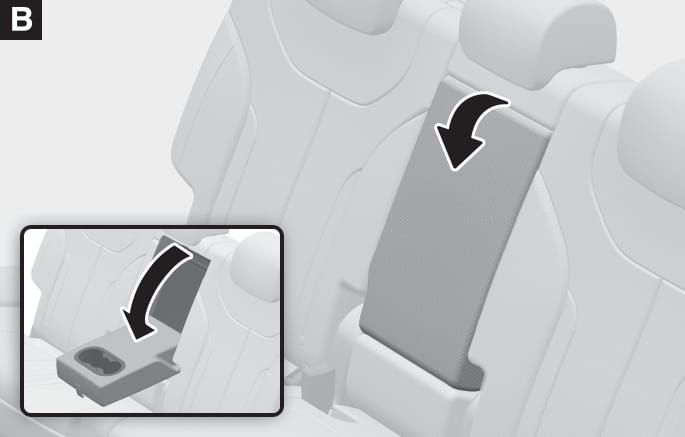

B0053KO10

  1. : 7-seater
  2. : 8-seater

The armrest is located in the center of the rear seat. Pull the armrest down from the seatback to use it.

To adjust the armrest at a convenient angle, lower the armrest from the highest position to the lowest position, and lift it up to fixed on it.

Since it cannot be adjusted downward after fixing, lift the armrest slightly more than the highest position, then lower it to the lowest position and adjust while lift it up.
