Rear climate control

2nd row air conditioning control

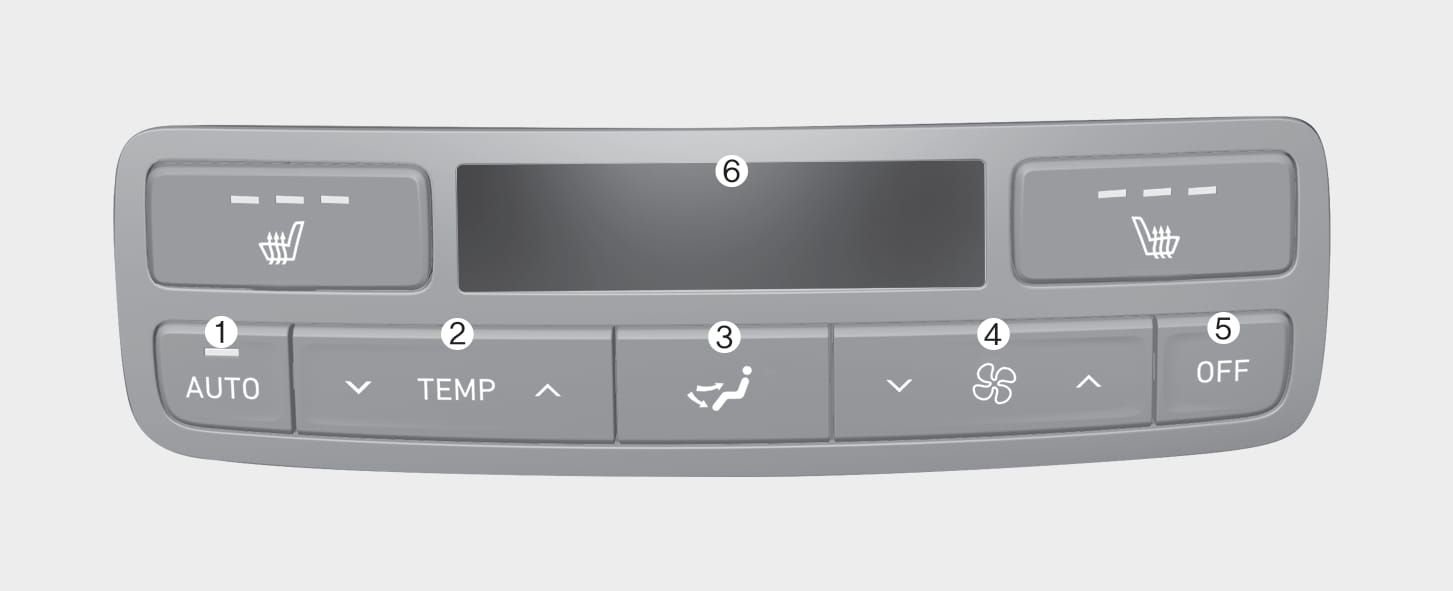

A0202KO02

  1. AUTO button
  2. Temperature control button
  3. Mode selection button
  4. Fan speed control button
  5. OFF button
  6. Climate control information screen

If you press the rear climate control button of the front climate control system, rear passengers can control the rear climate system by using the rear climate control system.

When you want to use the rear climate control (heating and air conditioning)

  1. Press the air conditioning button of the front climate control.

  2. Adjust the rear climate control (temperature, air direction and fan speed).

  3. Check that “Lock Control” is not selected in the infotainment system. If “Lock Control” is selected, the rear climate control is not adjusted in the rear climate control panel.

Fan speed control

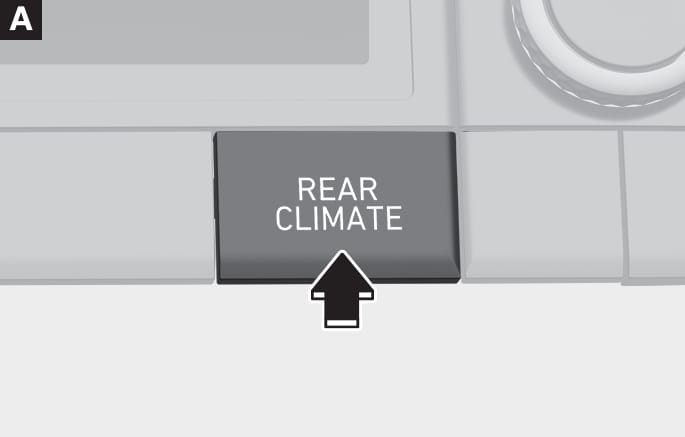

B9029EU07

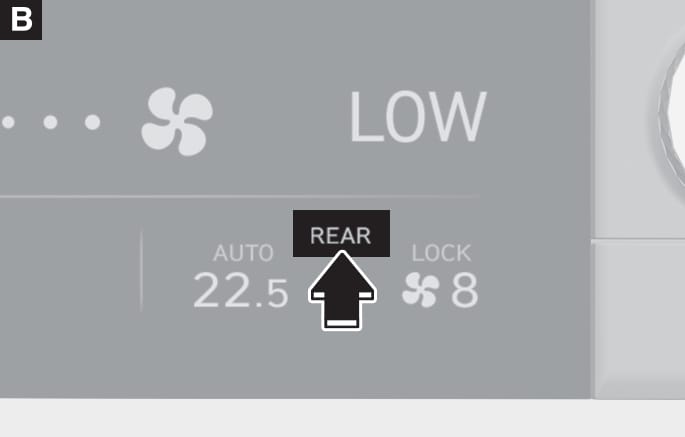

B9029EU08

  1. Press the rear climate control button or icon of the front climate control system.

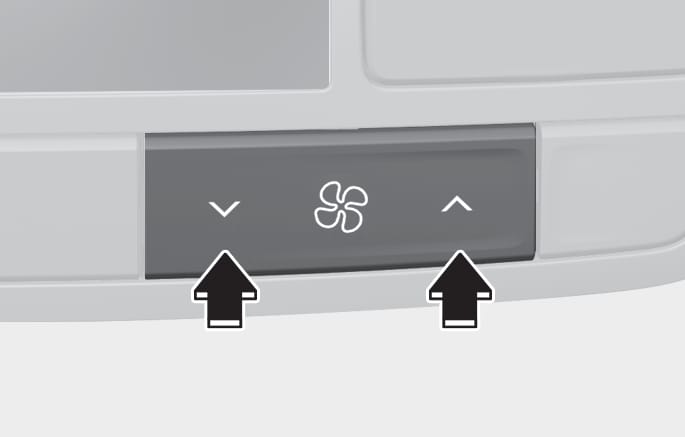

    B9030EU01

  2. The fan speed can be set to the desired speed by pushing the fan speed control button. The higher the fan speed is, the more air is delivered. Pressing the OFF button turns off the fan.

Temperature control

B9029EU07

B9029EU08

  1. Press the rear climate control button of the front climate control system.

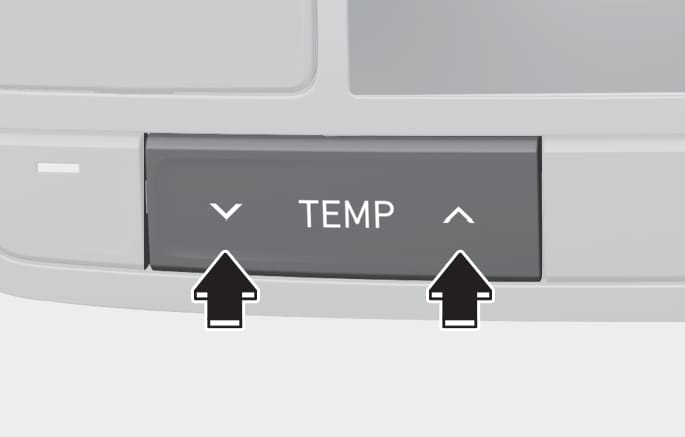

    B0204KO15

  2. The temperature of delivered air can be set to the desired temperature by pushing the temperature control button.

    Pressing the Off button turns off the fan.

AUTO mode

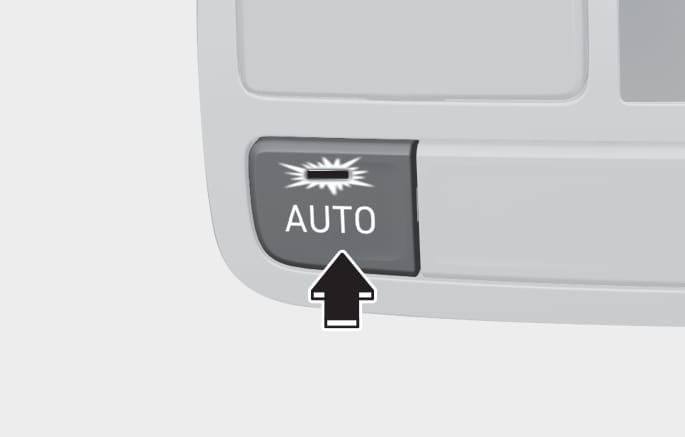

B9030EU02

The rear automatic climate control system is controlled by setting the desired temperature.

  1. Press the AUTO button. The modes, fan speeds, air intake and air-conditioning will be controlled automatically by the temperature setting you select.

  2. Press the temperature control button to the desired temperature.

OFF mode

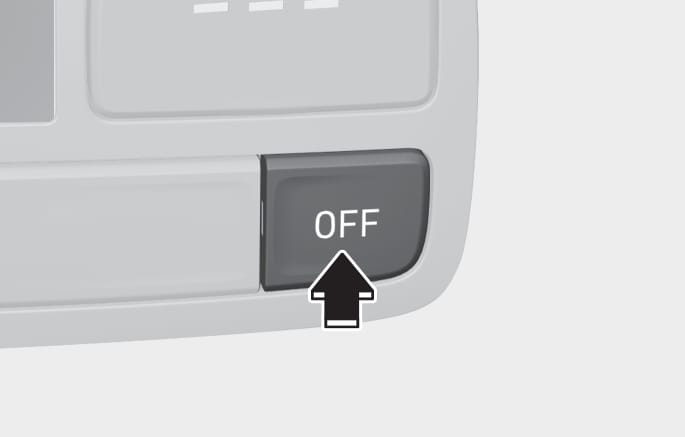

B9030EU04

Press the OFF button to turn the rear climate control system off.

Mode selection

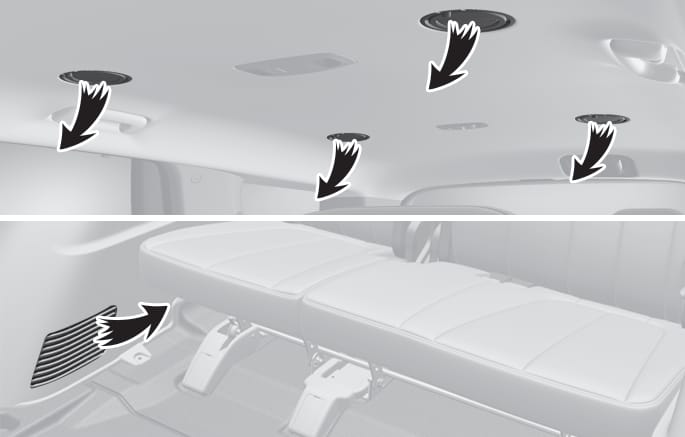

B9025EU05

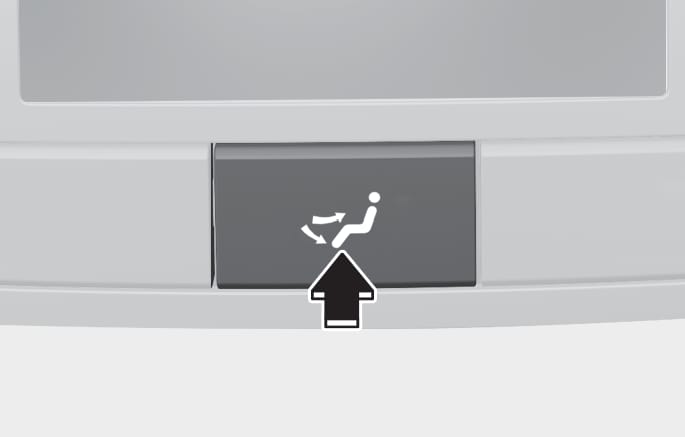

B9030EU03

You can select the direction of the air flow through the ventilation system.

You can adjust the front climate control system for heating or cooling to passengers on 2nd row seats. The air flow is directed from the floor.

: Air flow is directed toward the upper body from the rear headliner.

: Air flow is directed toward the upper body and the floor.

: Air flow is directed toward the floor.

Rear vents on the headliner

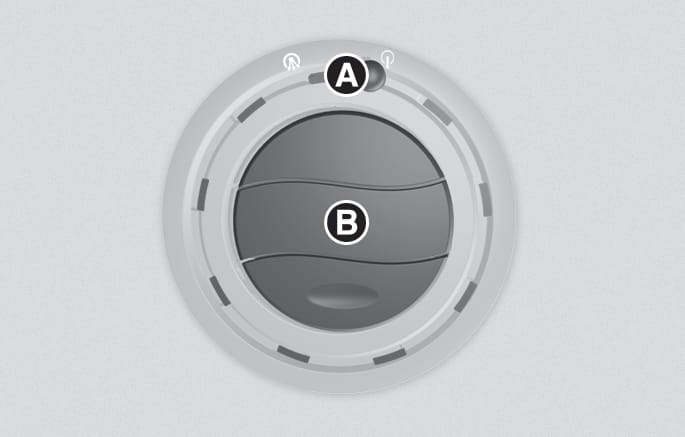

B0204KO17

The rear passengers can adjust the direction of air flow from the rear vents on the headliner.

If you operate the rear climate control with rear vents closed, a noise may sound. When operating the rear climate control, open two or more rear vents.

No

Diffusion lever (A)

Direction thumbwheel (B)

Description

1

Open

()

Close

The air is delivered widely toward the surroundings of rear passengers. However, the fan speed may be decreased.

2

Open

()

Open

The air is delivered widely toward the rear passengers and surrounding of rear passengers.

3

Close

()

Open

The air is only delivered toward the rear passengers.
