Filter Replacement

B0449KO01

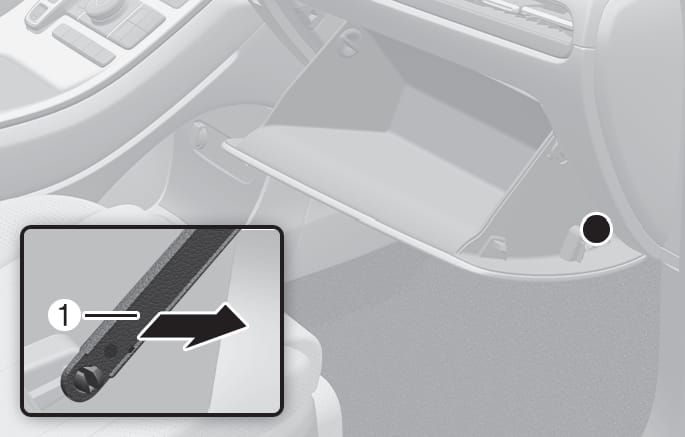

  1. Open the glove box and remove the support rod (1).

    B0449KO02

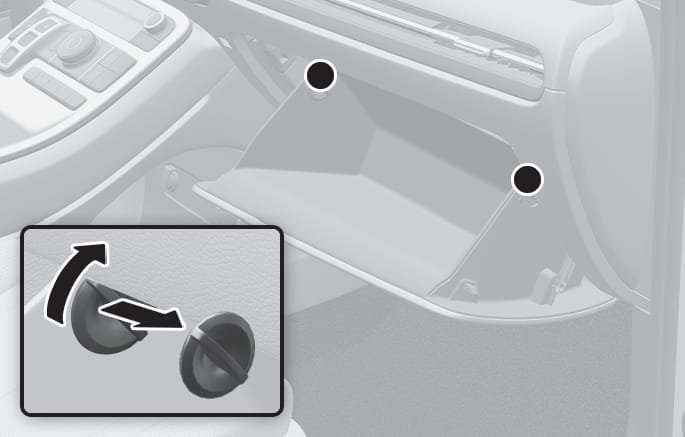

  2. Remove the stoppers on both sides to allow the glove box to hang freely on the hinges.

    B0449KO03

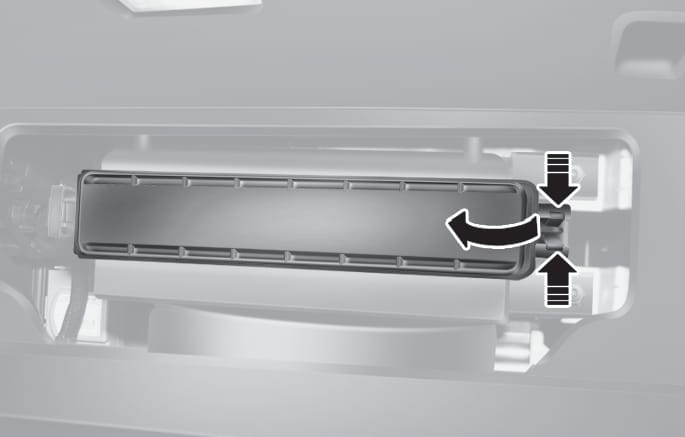

  3. Press and hold the lock on the left side of the cover.

  4. Pull out the cover.

  5. Replace the cabin air filter.

  6. Reassemble in the reverse order of disassembly.

B0449KO04

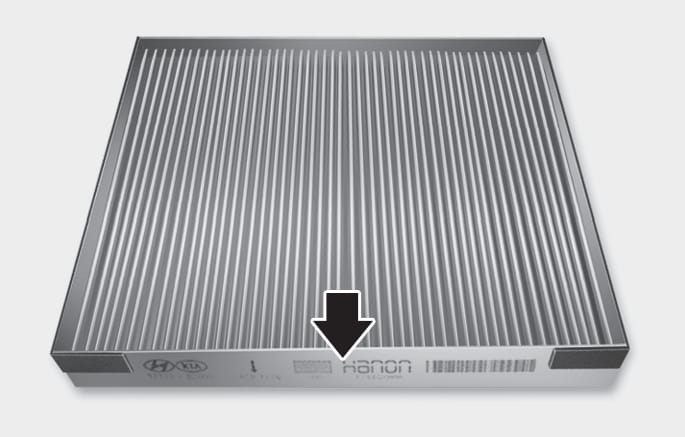

Install a new cabin air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and reduce effectiveness.
