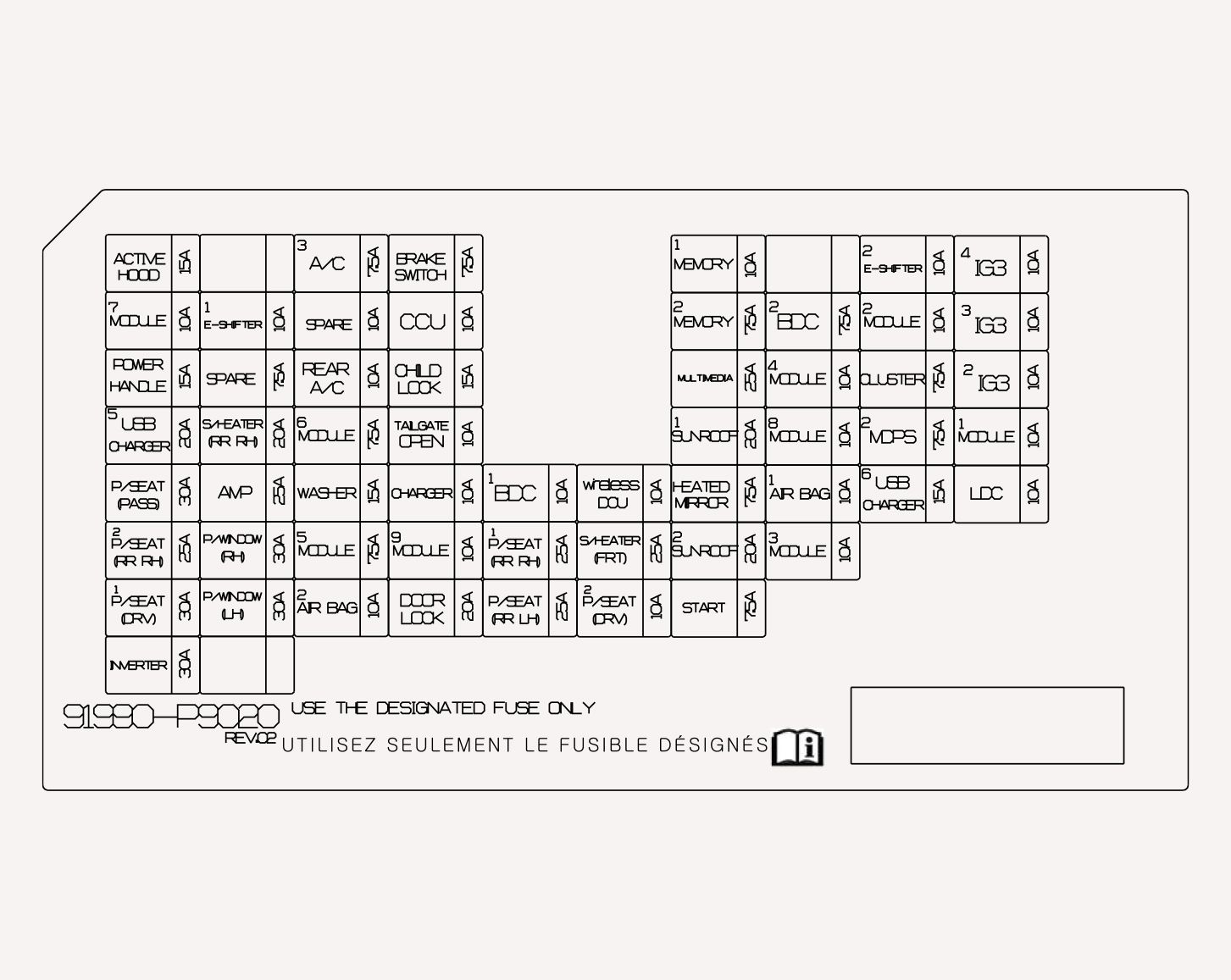

A/C 3

7.5 A

Front A/C Control Panel, Front A/C Control Module, Incar Temperature Sensor, E/R Junction Block (PTC HEATER1/2 RELAY)

BRAKE SWITCH

7.5 A

BDC, Stop Lamp Switch

MEMORY 1

10 A

Rear A/C Control Module, Driver/Passenger Door Mood Lamp, Smart Ambient Light Control Unit (Mood Lamp), Rear Door Mood Lamp LH/RH, BDC

E-SHIFTER 2

10 A

Electronic Atm Shift Lever & Start/Stop Button

MODULE 7

10 A

Hazard Switch, ICC Unit, Rain Sensor, Multifunction Switch, Data Link Connector, 3RD Power Seat Module, Driver/Passenger Power Outside Mirror, Driver Power Window Module, Driver/Passenger Power Seat Module,2ND Power Seat Module LH/RH, Rear Junction Block (Rear Blower Relay), Crash Pad Switch, Driver/Passenger Door Outside Handle, Power Tailgate Unit, 2ND & 3RD Seat Reclining Switch (Luggage)

E-SHIFTER 1

10 A

Electronic Atm Shift Lever & Start/Stop Button

SPARE (IG2)

10 A

Standby Power (IG2)

CCU

10 A

CCU

MEMORY 2

7.5 A

Head-Up Display, Front A/C Control Panel, Front A/C Control Module

BDC 2

7.5 A

BDC

MODULE 2

10 A

CCU, DCU, Stop Lamp Switch

SPARE (B+)

7.5 A

Standby Power (B+)

REAR A/C

10 A

Rear A/C Control Module

CHILD LOCK

15 A

Child Lock/Unlock Relay

MULTIMEDIA

25 A

Low DC-DC Converter

MODULE 4

10 A

Floor Console UVC Switch, AMP, Smart Phone Wireless Charger Unit, USB Connector Assembly, Driver Power Seat Module, 3RD Seat Switch LH/RH, 2ND Power Seat Module LH/RH, 3RD Power Seat Module, 2ND Seat LH/RH Switch Unit, ICC Unit, Overhead Console Lamp, Electro Chromic Mirror, Data Link Connector, CCNC Head Unit, Front A/C Control Panel, Trailer Control Module, Low DC-DC Converter, Built-In Cam Unit

CLUSTER

7.5 A

Cluster Unit, Head-Up Display

USB CHARGER 5

20 A

USB Connector Assembly

S/HEATER RR RH

20 A

2ND Warmer/Air Ventilation Control Module

MODULE 6

7.5 A

Head Lamp LH/RH, AC Inverter Outlet, Inverter Unit, 12V Lithium Auxiliary Battery

TAILGATE OPEN

10 A

Tailgate Open Relay, Passenger Occupant Detection Sensor

SUNROOF 1

20 A

Front Sunroof Control Module

MODULE 8

10 A

Multifunction Switch, Driver Power Window Module, 2ND Seat Belt Buckle Switch LH/RH/Center

MDPS 2

7.5 A

MDPS Unit

MODULE 1

10 A

BDC, CCU, DCU, ADAS Unit (Parking), Built-In Cam Unit, Low DC-DC Converter

P/SEAT PASS

30 A

Passenger Power Seat Module, Passenger Relay Unit, Passenger Power Seat Switch

AMP

25 A

[400W] Low DC-DC Converter

WASHER

15 A

Multifunction Switch

wireless DCU

10 A

DCU

BDC 1

10 A

Front/Rear UWB Unit LH/RH, UWB Unit (Master/Slave), Driver/Passenger Door Outside Handle, BDC

HEATED MIRROR

7.5 A

Driver/Passenger Power Outside Mirror

AIR BAG 1

10 A

SRS Control Module, Passenger Occupant Detection Sensor

USB CHARGER 6

15 A

USB Connector Assembly

LDC

10 A

CCNC Head Unit, LOW DC-DC Converter, REAR Corner Radar LH/RH, REAR A/C Control Module, Cluster Unit, ADAS Unit(Parking), CCNC Keyboard, FRONT A/C Control Pannel , HEAD-UP Display

P/SEAT RR RH 2

25 A

2ND Seat RH Walk In Communication Switch (Cushion/Reclining), 2ND Power Seat Module RH

P/WINDOW RH

30 A

Passenger Safety Power Window Module,

[With Safety] Rear Safety Power Window Module RH,

[W/O Safety] Rear Power Window Switch RH

MODULE 5

7.5 A

BDC

P/SEAT RR RH 1

25 A

[With Power Seat] 2ND Power Seat Module RH, [8P] 2ND Seat Rh Walk In & Folding Switch, 2ND Seat RH Walk In Communication Switch (Cushion/Reclining)

[With 2nd Folding & Walk In - 8P] 2ND Seat RH Walk In & Folding Switch

S/HEATER FRT

25 A

1ST Seat Warmer/Air Ventilation Seat Control Module

SUNROOF 2

20 A

Rear Sunroof Control Module

MODULE 3

10 A

AWD ECM, Front View Camera, ADAS Unit (Driving), ADAS Unit (Parking), Front/Rear Corner Radar LH/RH, Front Radar, Center Fascia Switch (Driver), Crash Pad Switch, Rear Corner Radar LH/RH

P/SEAT DRV 1

30 A

Driver Power Seat Module, Driver Power Seat Switch

P/WINDOW LH

30 A

Driver Safety Power Window Module,

[With Safety] Rear Safety Power Window Module LH,

[W/O Safety] Rear Power Window Switch LH

AIR BAG 2

10 A

SRS Control Module

DOOR LOCK

20 A

Door Lock/Unlock Relay, Two Turn Unlock Relay

P/SEAT RR LH

25 A

[With Power Seat] 2ND Power Seat Module LH, [8P] 2ND Seat Rh Walk In & Folding Switch, 2ND Seat LH Walk In Communication Switch (Cushion/Reclining)

[With 2nd Folding & Walk In - 8P] 2ND Seat LH Walk In & Folding Switch

P/SEAT DRV 2

10 A

Driver Lumbar Support Unit

START

7.5 A

BDC, ECM

INVERTER

30 A

Inverter Unit
