Automatic Climate Control System

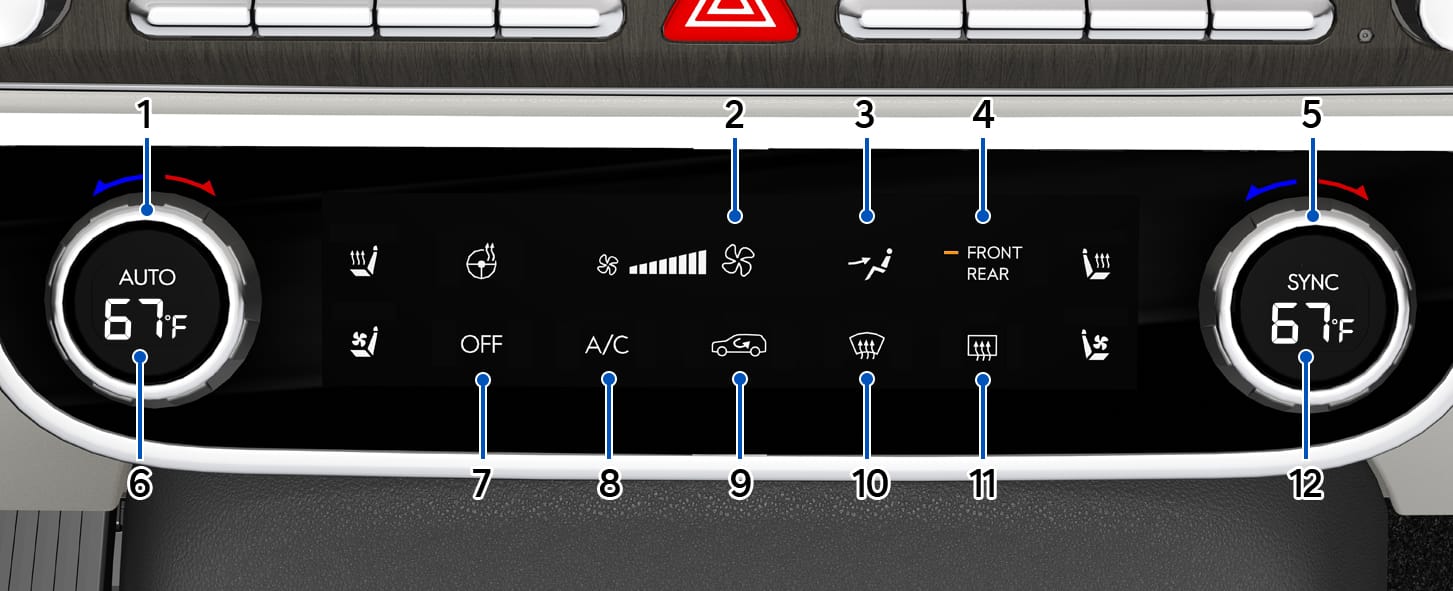

Front seat control

1C_Aircon

  1. Driver's temperature control
  2. Fan speed control
  3. Mode selection
  4. Front/Rear climate control selection
  5. Passenger's temperature control
  6. AUTO (automatic control)
  7. OFF
  8. A/C (air conditioning)
  9. Air intake control
  10. Front windshield defroster
  11. Rear window defroster
  12. SYNC

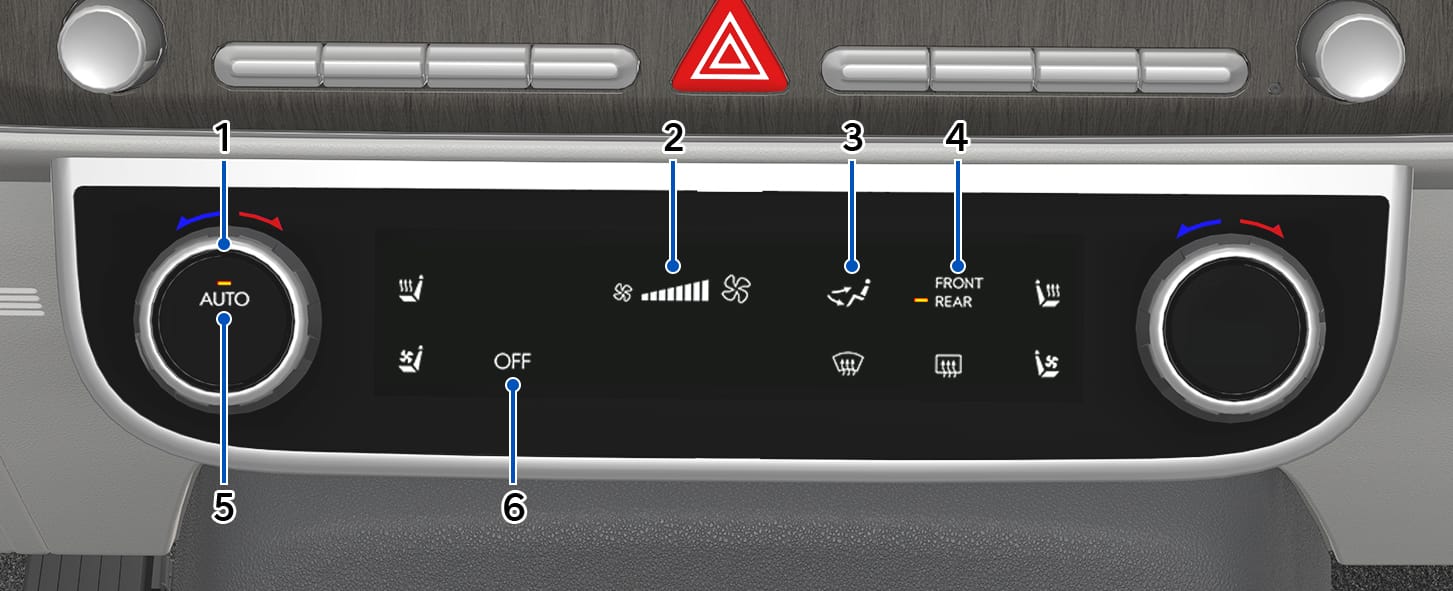

Rear seat control from the front

1C_Aircon_2

  1. Temperature control
  2. Fan speed control
  3. Mode selection
  4. Front/Rear climate control information screen
  5. AUTO (automatic control)
  6. OFF

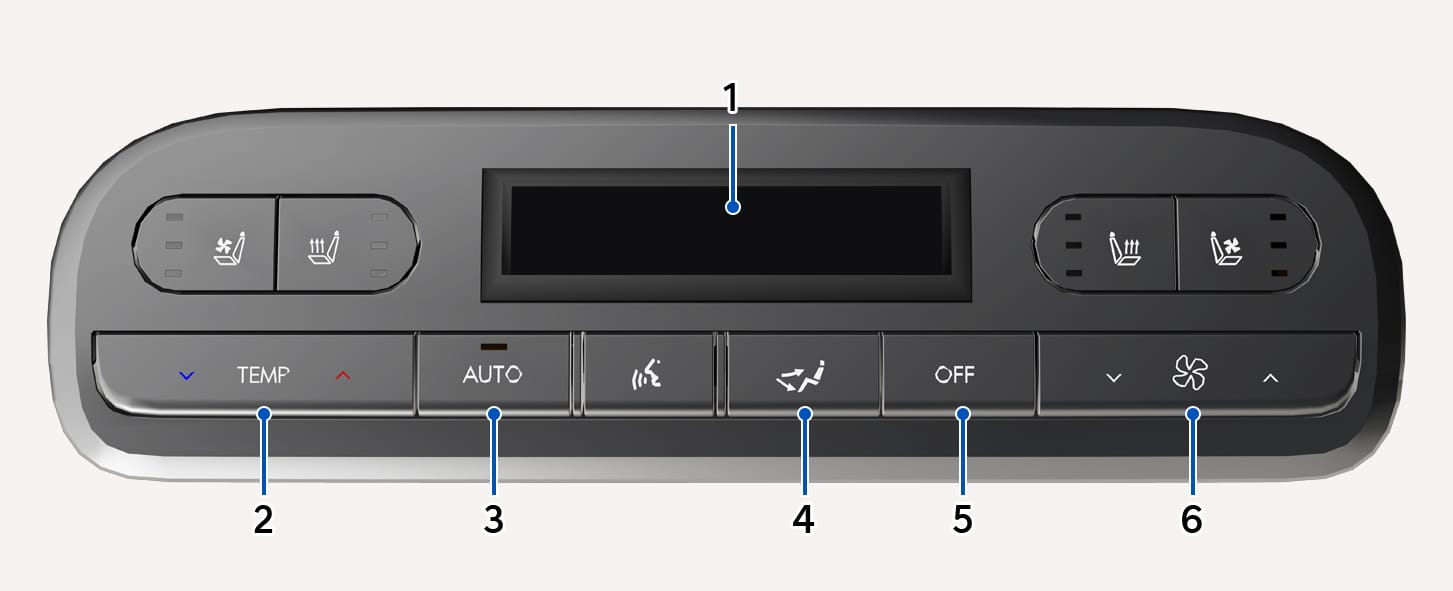

Rear seat control

1C_RearAircon

  1. Climate control information screen
  2. Temperature control
  3. AUTO
  4. Mode selection
  5. OFF
  6. Fan speed control

Temperature, Mode selection (air flow direction), and Fan speed can be controlled from the rear seat. However, if Setup > Vehicle > Climate > Climate Features > Lock Rear Climate Controls is selected, the rear climate control can be operated only from the front seat.

  • Do not sleep in your vehicle with the air conditioning ON. It may lead to serious injury or death.

  • Do not drive for a long time while the air conditioning is ON in a confined space as it may cause headaches or drowsiness.

Heater/air conditioning can operate while the engine is turned off, but it may lower its efficiency and quickly discharge the battery. We recommend that you turn on the engine when operating the climate control.

Screen distortion that occurs when you press the screen strongly is a normal phenomenon that can occur due to the characteristics of LCD.
