Replacing Fuses

Instrument panel fuse replacement

  1. Turn off the vehicle and all other switches.

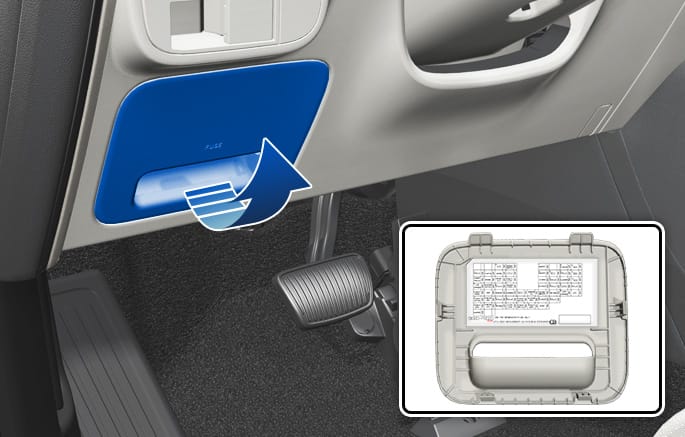

  2. Open the fuse panel cover. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.

    2C_InstrumentPanelFuseLabel

  3. Pull the suspected tool straight out. Use the removal tool provided in the engine compartment fuses panel.

  4. Check the removed fuse and replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).

  5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it is not tight, contact an authorized HYUNDAI dealer.

In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.

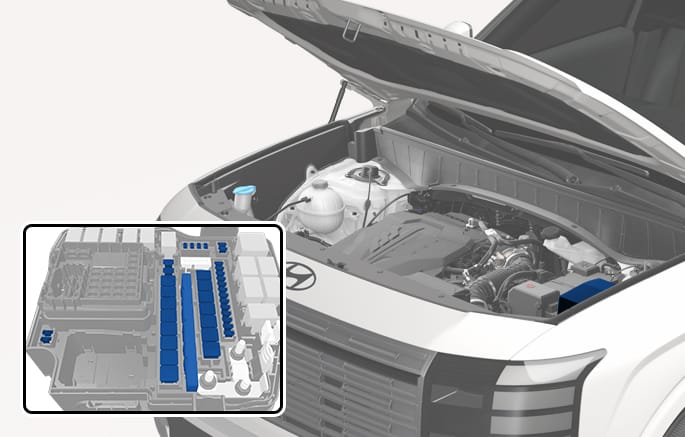

Engine compartment panel fuse replacement

2C_EngineRoomFuseReplacement

Blade fuse/Cartridge fuse

  1. Turn off the vehicle and all other switches.

  2. Remove the fuse panel cover by pressing the tap and pulling up. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.

  3. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuses panel .

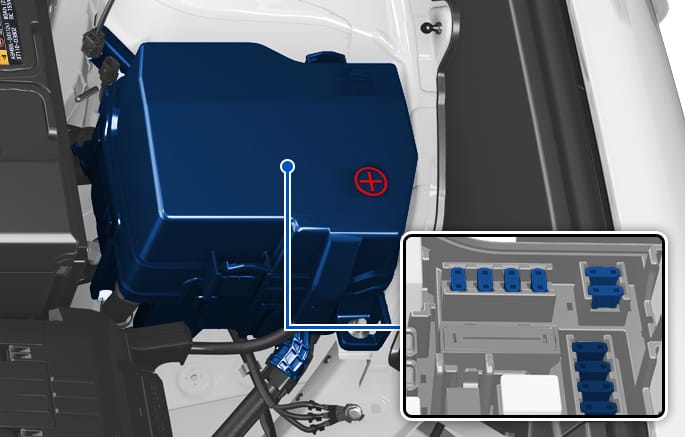

    Blade type

    2C_EngineRoomFuseReplacement_2

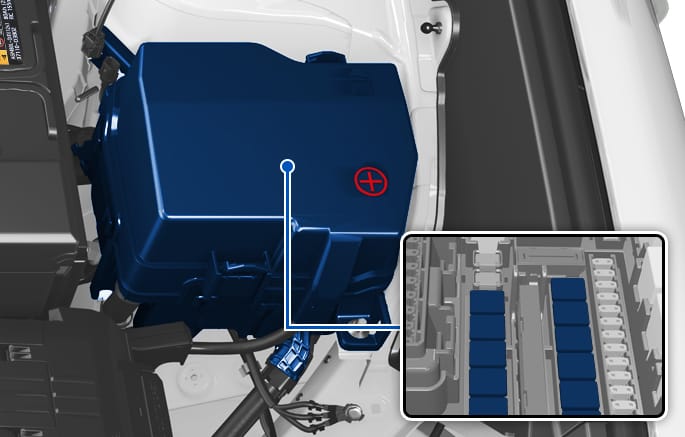

    Cartridge type

    2C_EngineRoomFuseReplacement_3

  4. Check the removed fuse and replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

  5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it is not tight, contact an authorized HYUNDAI dealer.

Always securely install the fuse panel cover. Water may contact the fuse and cause an electrical failure.

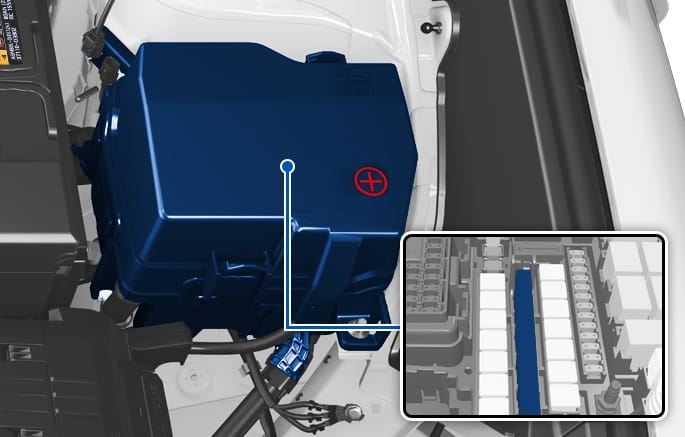

Multi fuse

2C_EngineRoomFuseReplacement_4

If the multi fuse or midi fuse is blown, contact an authorized HYUNDAI dealer.
