Manual Heating and Air Conditioning

Set the various heating and air conditioning system such as fan speed, mode, temperature, air intake, etc., as desired.

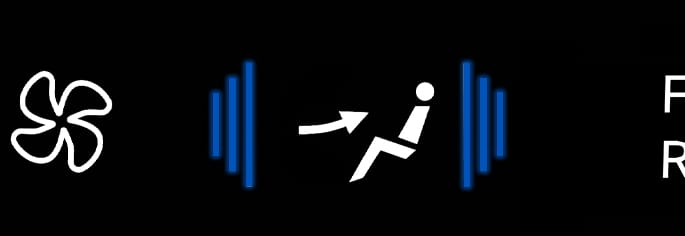

Mode selection

Front seat mode selection

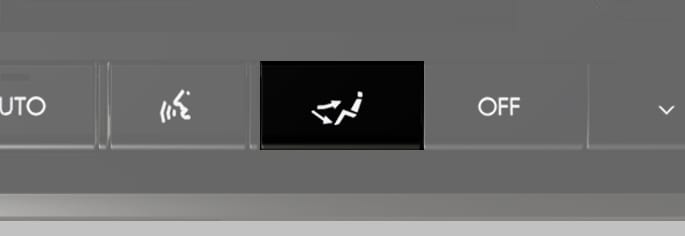

Rear seat mode selection

The mode selection button controls the direction of the air flow through the ventilation system.
If you want to adjust the mode section of the rear seat from the front seat, press the ǧ button and then when the rear seat air conditioning screen appears.

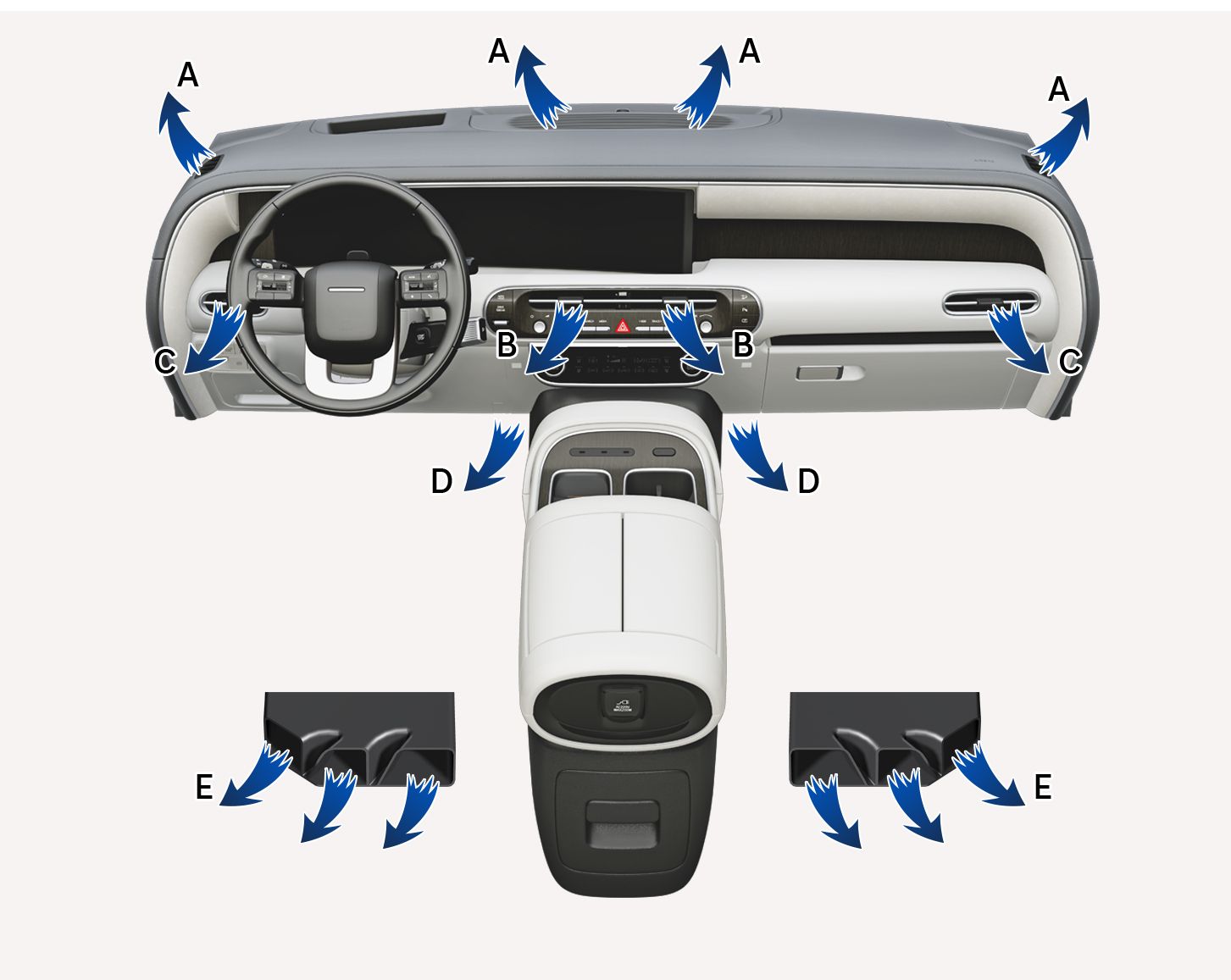

Air flow direction

Front

Symbol	Operation
Ř B, C	Select for effective cooling. Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
ś B, C, D, E	Air flow is directed toward the face and the floor.
ř A, C, D, E	Select for effective heating. Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.
Ŝ A, C, D, E	Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.

Symbol

Operation

B, C

Select for effective cooling.

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

B, C, D, E

Air flow is directed toward the face and the floor.

A, C, D, E

Select for effective heating.

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield and side window defrosters.

A, C, D, E

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters.

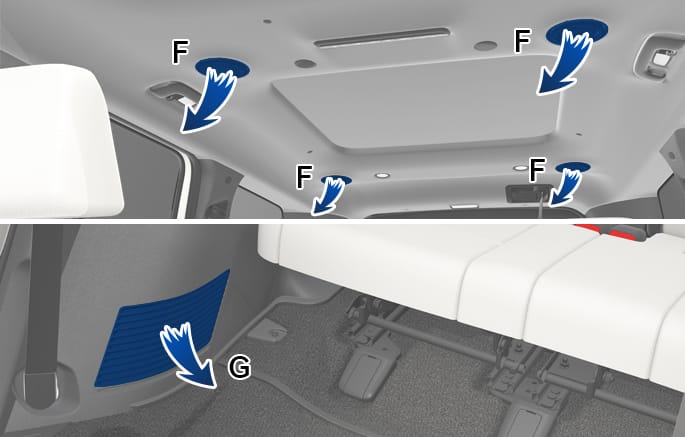

Rear

Symbol	Operation
Ř F	Select for effective cooling Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
ś F, G	Air flow is directed toward the face and the floor.
ř G	Select for effective heating Most of the air flow is directed to the floor.

Symbol

Operation

Select for effective cooling

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

F, G

Air flow is directed toward the face and the floor.

Select for effective heating

Most of the air flow is directed to the floor.

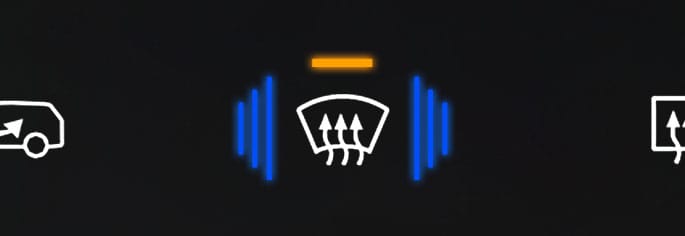

Front windshield defroster (A)

Press the front windshield defroster button (indicator light ON) to turn on the front windshield defroster. The outside (fresh) mode is automatically selected and the air conditioning turns on according to the detected ambient temperature.

Press the front windshield defroster button once more (indicator light OFF) to turn the function off. Each climate control setting reverts to the setting prior to selecting the front windshield defrost.

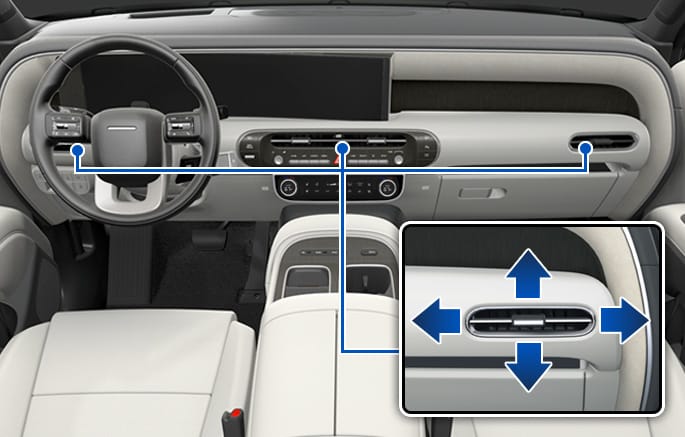

Instrument panel vents (B, C, F)

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever.

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever.

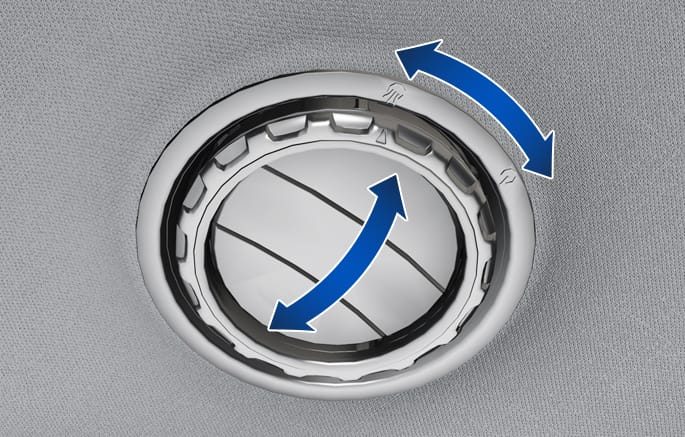

The outlet vents can be opened or closed separately using the vent control lever.

Move the lever to Á position to close, and to Â position to open.

If you operate the rear climate control with rear vents closed, a noise may sound. When operating the rear climate control, open two or more rear vents.

Temperature control

Front seat control

Turn the knob to the right to increase the temperature. Turn the knob to the left to decrease temperature.
To adjust the temperature of the rear seat from the front seat, press the ǧ button and turn the knob to adjust when the rear seat air conditioning screen appears.

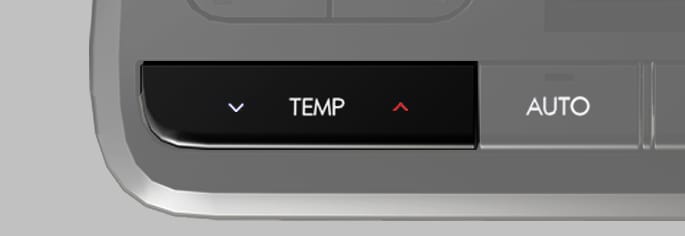

Rear seat control from the rear

Press the ñ button to increase the temperature.

Press the ò button to decrease the temperature.

Temperature conversion (°C ↔ °F)

To change the temperature unit from °C to °F or °F to °C, select Setup > General > Units > Temperature Unit > °C/°F in the infotainment system.

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

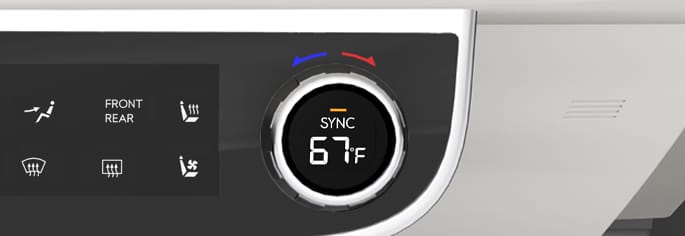

SYNC (Adjusting the driver and passenger side temperature equally)

Press the SYNC button (indicator light ON) to adjust the driver and passenger side temperature equally.
Press the SYNC button (indicator light OFF) again to adjust the driver and passenger side temperature individually.

Air intake control

Recirculated air position

With the recirculated air selected, air from the passenger compartment is drawn through the climate control system.

Outside (fresh) air position

With the outside (fresh) air selected, air enters the vehicle from outside and is drawn through the climate control system.

To prevent serious injury or death:

Continued climate control system operation in the recirculated air position may allow humidity to increase inside the vehicle that could fog the windshield and the side windows and obscure visibility.
Do not sleep in a vehicle with the air conditioning or heating system on.
Continued climate use of recirculated air may cause drowsiness or sleepiness, and loss of vehicle control. Set the air intake control to the outside (fresh) air position while driving.

Using the system in the fresh air position is recommended.

Prolonged operation of the heater in the recirculated air position (without air conditioning selected) can cause fogging of the windshield and side windows and the air within the passenger compartment will become stale.

In addition, prolonged use of the air conditioning with the recirculated air position selected will result in excessively dry air in the passenger compartment.

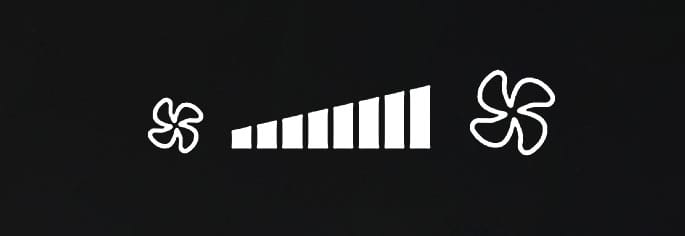

Fan speed control

Front seat control

Press the ŭ button to increase fan speed and airflow. Press the Ǣ button to decrease fan speed and airflow.
If you want to adjust the fan speed of the rear seat from the front seat, press the ǧ button and then when the rear seat air conditioning screen appears, press the Ǣ, ŭ button.

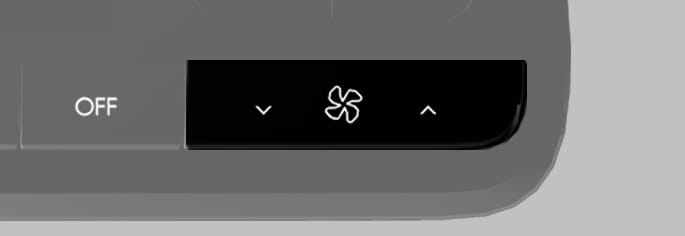

Rear seat control from the rear

Press the ñ button to increase the fan speed.

Press the ò button to decrease the fan speed.

Operating the fan speed when the Engine Start/Stop button is in the ON position may cause the battery to discharge.

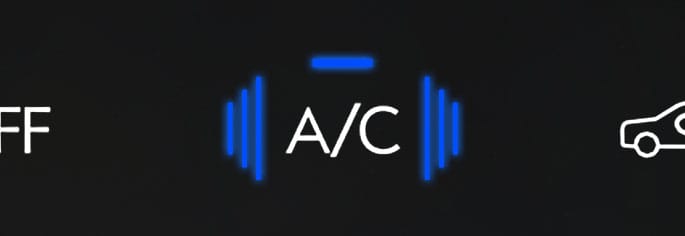

Air conditioning

Press the A/C button to manually turn on the air conditioning system (indicator light ON) and off.

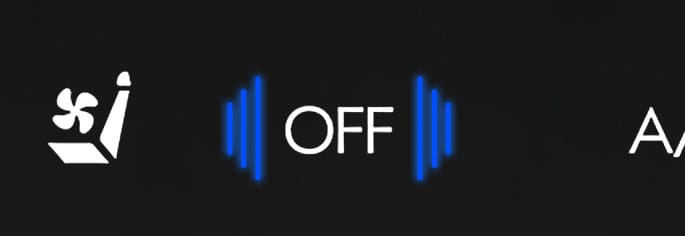

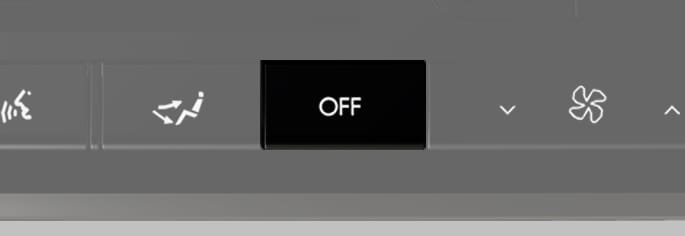

OFF mode

Press the OFF button to turn off the climate control system.

You can still operate the mode buttons and air intake buttons as long as the Engine Start/Stop button is in the ON position.

Water dripping on the ground of the vehicle is normal after the use of the air conditioning.
Avoid prolonged operation of the air conditioning in the circulated air position when operating in/outside mode. Carefully adjust to let outdoor air circulate regularly.
Use the air conditioning system every week for around 5 minutes at once to avoid the potential breakdown of the system.
Open the windows for a short time to let the hot air inside the vehicle escape.
Excessive use of air conditioning during the hot summer may increase moisture outside the window due to the difference between the temperature of the outside and inside the vehicle. Change the air flow direction and adjust the air control to the lowest level.
In humid weather, if the windows are open and the air conditioning is running, water droplets may form inside the vehicle and around the air vent. In this case, use the air conditioning system with the windows closed to prevent any potential damage to electrical equipment.

Avoid leaves, snow, or other objects to block the grill as the source of air for the heater and air conditioning flows into the grill. When cooling, foggy air can be seen as the outside air draws into the vehicle. This is a normal condition since the humid air flows into the vehicle while cooling the vehicle rapidly.
