RSPA Operation

RSPA button

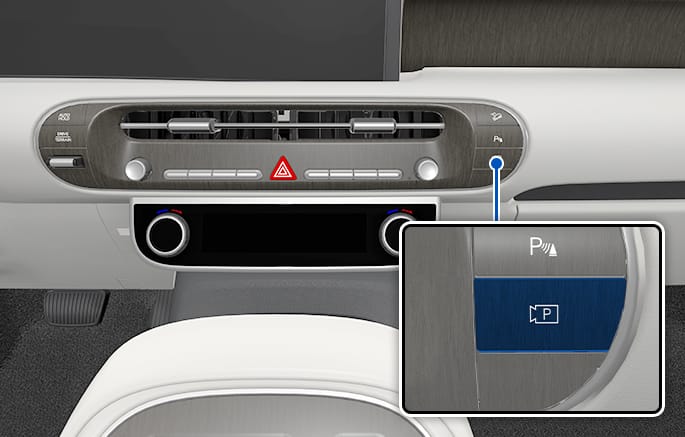

Parking/View button

2C_RSPAParkingViewButton

Press and hold the Parking/View ā button to turn on RSPA. Also, Parking Distance Warning (PDW) ) and Surround View Monitor (SVM) automatically turns on.

System operation may differ depending on the situations. For more information, refer to each system description.

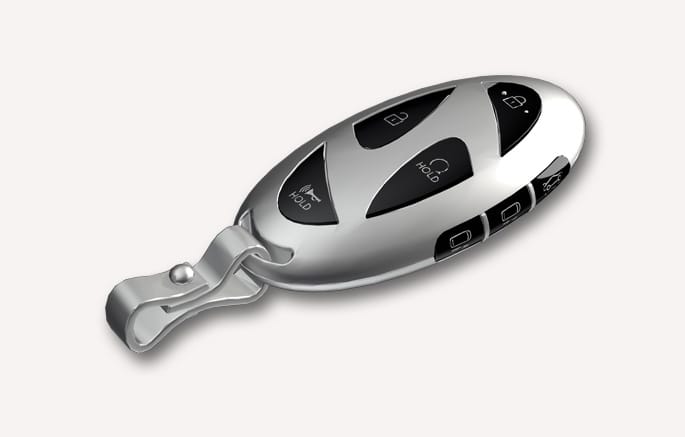

Forward/Backward button (Smart key)

2C_SmartKey

When using Remote Parking function, parking is supported while the đ or Į button is pressed, regardless of the button direction. When using the Remote Operation function, the vehicle moves in the direction of the đ or Į button while the button is pressed.

System operation may differ depending on the situations. For more information, refer to each system description.

Remote Operation

The function can be operated from outside the vehicle using the smart key.

Following is an example of using Remote Operation.

Using the function with vehicle off.

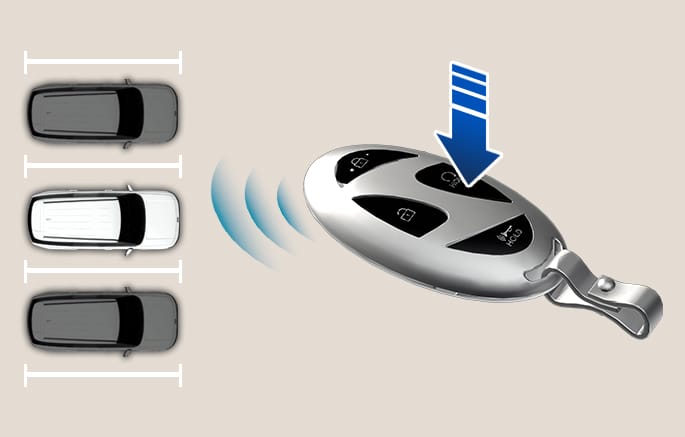

2C_RSPARemoteForwardRewardProcedure

  1. Within a certain range from the vehicle press the door lock Ď button on the smart key and lock all doors.

  2. Press and hold the Remote Start Ĕ button within 4 seconds until the engine starts.

  3. Hold down the Forward đ or Backward Į button until the vehicle reaches the target location.

    • For moving remotely backward, the steering wheel is aligned first, and then the vehicle only moves straight.

  4. When the vehicle reaches the target location and the door is opened, the vehicle automatically shifts to P (Park), Electronic Parking Brake (EPB) engages, but the vehicle remains on. You can drive the vehicle when you get on the vehicle with the smart key.

    • When the vehicle reaches the target location and the Remote Start Ĕ button is pressed, the vehicle automatically shifts to P (Park), EPB engages, and the vehicle turns off.

For more information on remotely starting the engine, refer to Engine Start/Stop Button.

Using the function with vehicle on

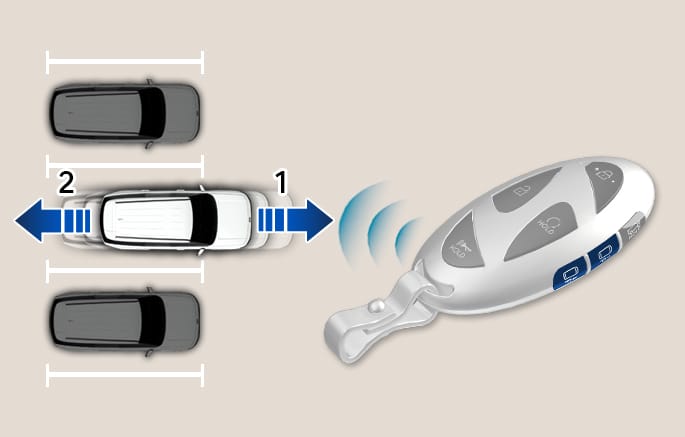

2C_RSPARemoteForwardRewardProcedure_2

  1. Park the vehicle in front of the space where you want to use Remote Operation function, and shift the gear to P (Park).

  2. Press and hold the Parking/View ā button to turn on RSPA. A message 'Under remote control' appears on the infotainment system.

  3. Get out of the vehicle with the smart key and close all doors and liftgate.

  4. Hold down the Forward đ or Backward Į button until the vehicle reaches the target location.

    • The function performance may be reduced depending on the pedestrians, animals, and objects near your vehicle or other factors.

    • While the infotainment system guides you through remote operation, press the Parking/View ā button, shift the gear to another gear from P (Park), press the Parking Safety ÿ button or select Cancel on the infotainment system to turn off Remote Operation.

  5. When the vehicle reaches the target location and the door is opened, the vehicle automatically shifts to P (Park), Electronic Parking Brake (EPB) engages, but the vehicle remains on. You can drive the vehicle when you get on the vehicle with the smart key.

    • When the vehicle reaches the target location and the Remote Start Ĕ button is pressed, the vehicle automatically shifts to P (Park), EPB engages, and the vehicle turns off.

  • Before starting moving the vehicle with the Remote Operation function from the outside of the vehicle, make sure that all passengers have gotten out of the vehicle.

  • If the vehicle's battery is discharged or RSPA malfunctions when parked in a narrow parking space, Remote Operation function does not operate. Always park your vehicle in a space wide enough for you to get in or out of your vehicle.

  • After parking, the surrounding may change due to the movement of surrounding vehicles. If this occurs, Remote Operation function may not operate. If you need to change the vehicle's position or location, manually complete parking your vehicle.

  • Before leaving the vehicle, close windows and sunroofs, and make sure the vehicle is off before locking the doors.

  • If you use the Remote Operation function with vehicle on, Agree must be selected on the infotainment system screen and the infotainment system has to operate properly.

  • Check that all smart keys are outside the vehicle when using Remote Operation function.

  • Remote Operation function operates only when the smart key is within 13 ft. (4 m) from the vehicle. If there is no vehicle movement even when the Forward or Backward button is pressed on the smart key, check the distance to the vehicle and press the button again.

  • The detection range of the smart key may differ depending on radio waves in the area such as transmission towers or broadcast stations.

  • The function performance may be reduced depending on the pedestrians, animals, and objects near your vehicle or other factors.

Function operation status

  • The Remote Operation function shows the operating status with the Smart key LED and hazard warning light.

  • The Remote Parking function shows the operating status with the Smart key LED and hazard warning light. During the first reverse, the turn signal light blinks in the parking direction.

Precautions

  • The emergency warning light status indicator may not be applicable, according to the relevant local regulations.

  • If the smart key is outside the effective range (about 4 m) around the vehicle, the smart key LED may not display properly. Use it within the effective range.

Operation status

Smart key LED

Under control

Green LED continuously blinks

Pause

Red LED continuously blinks

Off

Red LED illuminates for 4 seconds and then turns off

Complete

Green LED illuminates for 4 seconds and then turns off
Temporarily pausing RSPA

RSPA pauses in the following conditions when:

  • There is a pedestrian, animal or object in the direction the vehicle is moving

  • The door or liftgate is open

  • During Remote Operation, Remote Parking operation

    • The Forward đ or Backward Į button is not continuously pressed

    • Simultaneously pressing multiple buttons on a smart key

    • The smart key is not operated within 13 ft. (4 m) from the vehicle

    • Button of another smart key is pressed in addition to the operating smart key (except Remote Start button)

    • Blind-Spot Collision-Avoidance Assist (BCA), Parking Collision-Avoidance Assist (PCA) or Rear Cross-Traffic Collision-Avoidance Assist (RCCA) operates

Pausing RSPA

  • The brake pedal or accelerator pedal is depressed

  • The smart key is outside your vehicle when the brake pedal is depressed while the driver's door is open

  • The total travel distance of your vehicle has exceeded about 65.6 ft. (20 m) after Remote Operation function is operated

  • There is a problem with the smart key battery is low

  • Theft Alarm System sounds

  • There are pedestrians, animals or objects at the front and rear of the vehicle at the same time

RSPA cancelled

RSPA is cancelled in the following conditions when:

  • The steering wheel is turned

  • The gear is shifted

  • EPB is operated while your vehicle is moving

  • The hood is open

  • Rapid acceleration occurs

  • Vehicle skid occurs

  • The wheel is stuck by an obstacle and cannot move

  • The slope of the road exceeds the operational range

  • The function is paused for more than 1 minute

  • About 3 minutes and 50 seconds have past after Smart Parking function has started to operate

  • The steering wheel, gearshift, braking, and drive controls are not working properly

  • ABS, TCS ,or ESC system operates due to slippery road conditions

  • The charging door is open
