Seat Belt Warning Light

Driver's and front passenger's seat belt warning

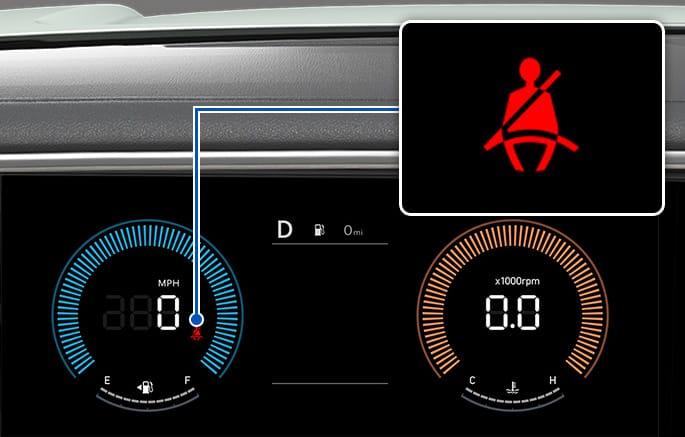

Type A

2C_SeatBeltWarningLampOverview

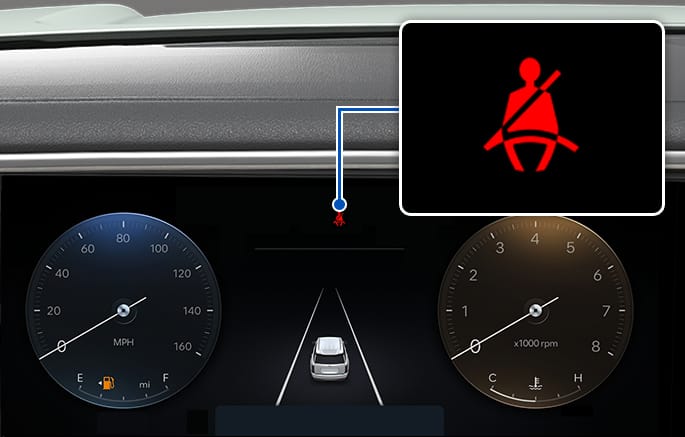

Type B

2C_SeatBeltWarningLampOverview2

  • As a reminder, the driver's and front passenger's seat belt warning lights illuminate for about 6 seconds each time the Engine Start/Stop button is in the ON position regardless of seat belt fastening.

  • The seat belt warning light illuminates until the seat belt is fastened.

  • If the seat belt is unfastened while driving:

    • Below 12 mph (20 km/h): the seat belt warning light illuminates

    • Above 12 mph (20 km/h): the seat belt warning chime sounds for a certain period of time and the warning light blinks

Riding in an improper position may adversely affect the front passenger's seat belt warning system. Instruct the passenger to properly be seated when the vehicle is moving.

  • If the front passenger seat is not occupied, the seat belt warning light blinks or illuminates for 6 seconds.

  • The front passenger's seat belt warning may operate when luggage is placed on the front passenger seat.

Rear passenger's seat belt warning

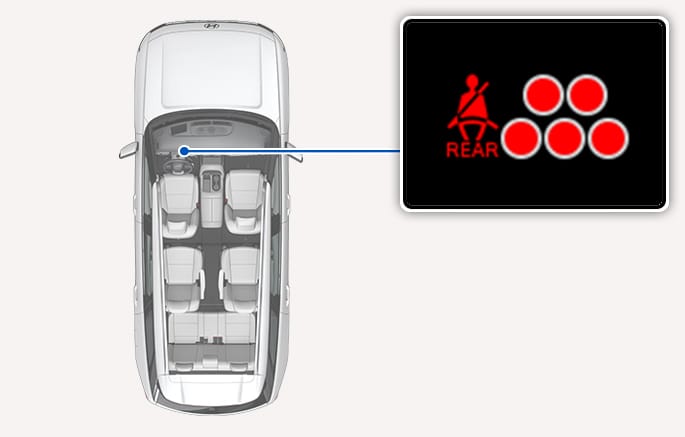

7-Seater

2C_RearSeatBeltWarningLamp

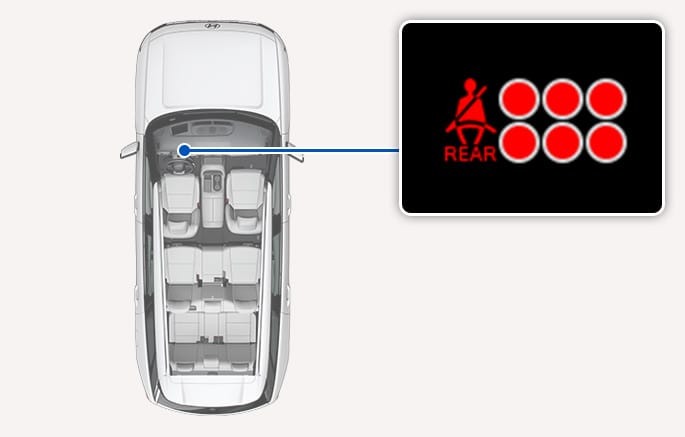

8-Seater

2C_RearSeatBeltWarningLamp_1

For rear seat

  • As a reminder to the rear passenger, the rear passenger’s seat belt warning lights will illuminate for about 6 seconds each time you turn the Engine Start/Stop button is in the ON position regardless of belt fastening.

  • If the seat belt is not fastened when the Engine Start/Stop button is in the ON position, the seat belt warning light will illuminate for about 70 seconds.

  • After wearing the seat belt, if you unfasten it when you drive under 12 mph (20 km/h), the corresponding warning light will continue to illuminate for about 70 seconds.

  • After wearing the seat belt, if you unfasten it when you drive over 12 mph (20 km/h), the seat belt warning chime will sound for about 35 seconds and the corresponding warning light will blink.

  • If the rear door is opened or closed under 6 mph (10 km/h), warning light and warning sound do not work even if driving over 12 mph (20 km/h).

  • If the seatbelt is unbuckled before the vehicle comes to a complete stop, the alarm sound may be triggered and the seatbelt reminder light for that seat may blink.

    Additionally, the warning may continue for up to 35 seconds after the passenger has exited the vehicle. Please unbuckle the seatbelt only after the vehicle has come to a complete stop.
