Automatic Heating and Air Conditioning

The Automatic Climate Control System is controlled by setting the desired temperature.

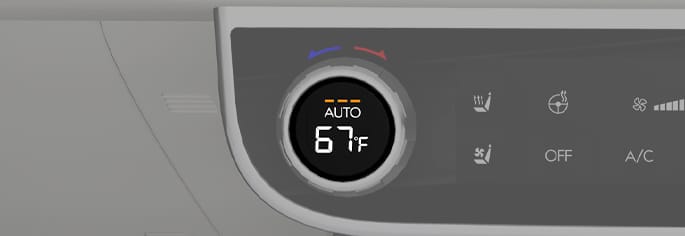

  1. Press the AUTO button.

    2C_AirconAutoButton

    • The modes, fan speeds, air intake, and air conditioning are controlled automatically by the temperature setting.

    • You can control the fan speed in three stages by pressing the AUTO button during automatic operation.

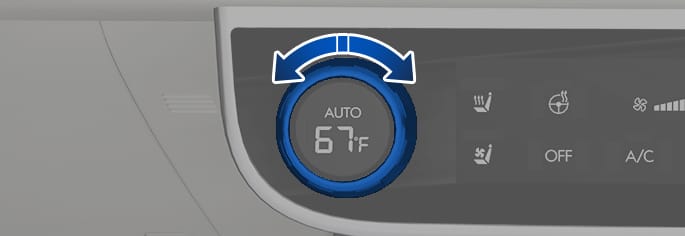

  2. Turn the temperature control knob to set the desired temperature.

    2C_AirconTempButton

    If the temperature is set to the lowest setting, the air conditioning system operates continuously. After the interior has cooled sufficiently, adjust the knob to a higher temperature set point whenever possible.

To turn off the automatic operation, select any button of the following buttons:

  • A/C button

  • Mode selection button

  • Front windshield defroster button (Press the button one more time to deselect the front windshield defroster function. The 'AUTO' sign illuminates on the information screen once again.)

  • Fan speed control button

The selected function is controlled manually while other functions operate automatically.

2C_BatterySaverIndicator

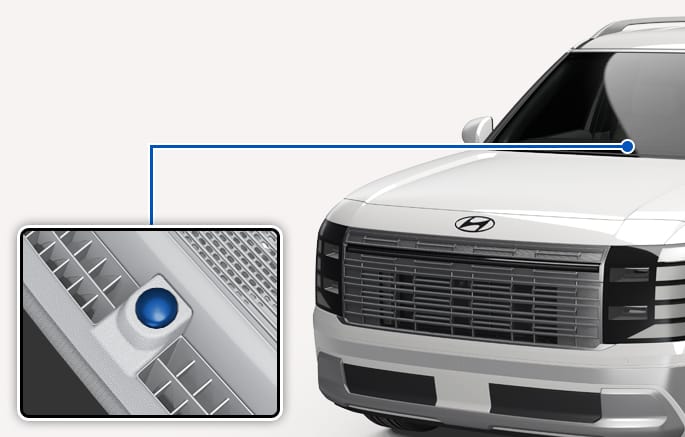

Never place anything near the sensor to ensure better control of the heating and cooling system.

For your convenience and to improve the effectiveness of the climate control, use the AUTO button and set the temperature to 72 °F (22 °C).
