UV-C Sterilizer System

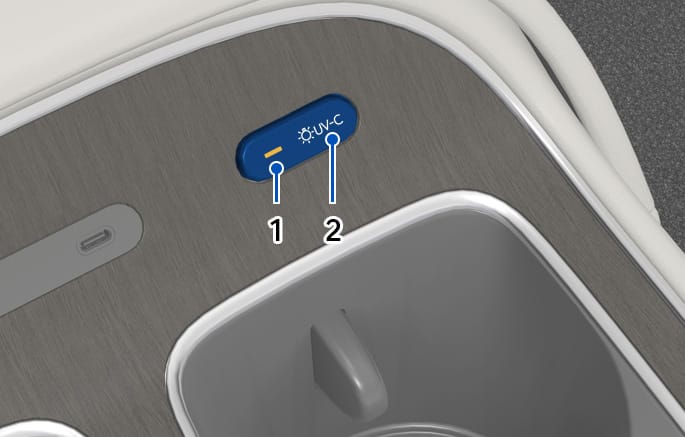

2C_UV_Coverview

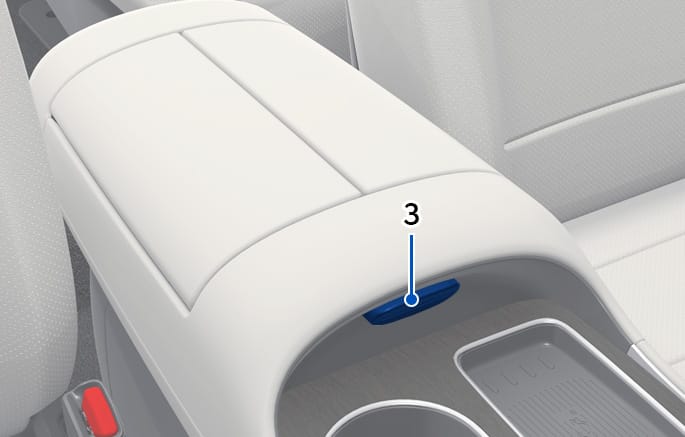

2C_UV_Coverview_2

  1. UV-C Indicator light
  2. UV-C sterilizer system button
  3. UV-C sterilizer storage button

The front seat console is equipped with an antibacterial sterilization system for personal belongings.

  • Press the button to turn UV-C function off when it is not in use. Being exposed to ultraviolet rays from UV-C LED may be harmful to your skin and eyes.

  • Do not place magnetic items (magnets, etc.) near the upper part of the UV-C storage box. It may cause malfunction to the UV-C sensor and unnecessarily operate the UV-C function.

  • Press the button to turn UV-C function off when it is not in use. Prolonged exposure under ultraviolet rays may change the color and shape of the object.

  • Do not sterilize food. Food cannot be sterilized. Prolonged exposure to ultraviolet rays may damage the wrapping or container and affect the food inside.

Using UV-C sterilizer system

Place the item in the UV-C storage box and turn it on. Within 10 minutes, up to 99.9% of germs on the surface can be removed.

  1. Open the UV-C storage box while the vehicle is running.

  2. Press the button inside the storage box.

    • UV-C sterilizer system indicator light illuminates.

    • Antibacterial tray is ready to operate.

  3. Place the item in the center inside the storage box and close the cover.

    • UV-C indicator light illuminates.

    • UV-C LED is turned on and sterilization begins.

    • After 10 minutes, the UV-C indicator light turns off as sterilization is complete.

    • Press the UV-C sterilizer system button to turn off the function after you are finished using the system.

  • Only place the item which requires sterilization. Storing other items in the storage box may reduce the sterilization effect.

  • UV-C sterilizer system does not guarantee 99.9% sterilization. The sterilization effect varies depending on the degree of exposure to UV-C light and the shape of the item. For effective use, change the position of the item and run additional sterilization.

  • UV-C indicator light blinks or does not operate properly, visit an authorized retailer of HYUNDAI dealer.

Unit item verification number

Unit item verification number

KC

Ş

Registration Number: R-R-Uep-LX3_FR

MET/NRTL

š

LISTING NUMBER: E115864

CE

Ţ

Ref No. 36-11018

FCC

ş

FTREFCC24-0067

EPA

Š

ESTABLISHMENT NUMBER: 100891-KOR-1

  • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • For your safety, this appliance complies with the applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Environmental, etc.

  • This product uses the vehicle's battery voltage and should be used only at DC 9 V-16 V.

This product emits ultraviolet rays. Do not gaze upon the UV rays while using the product. Exposing the eyes or skin to UV rays may have a harmful effect on the body.
