Instrument Cluster Overview

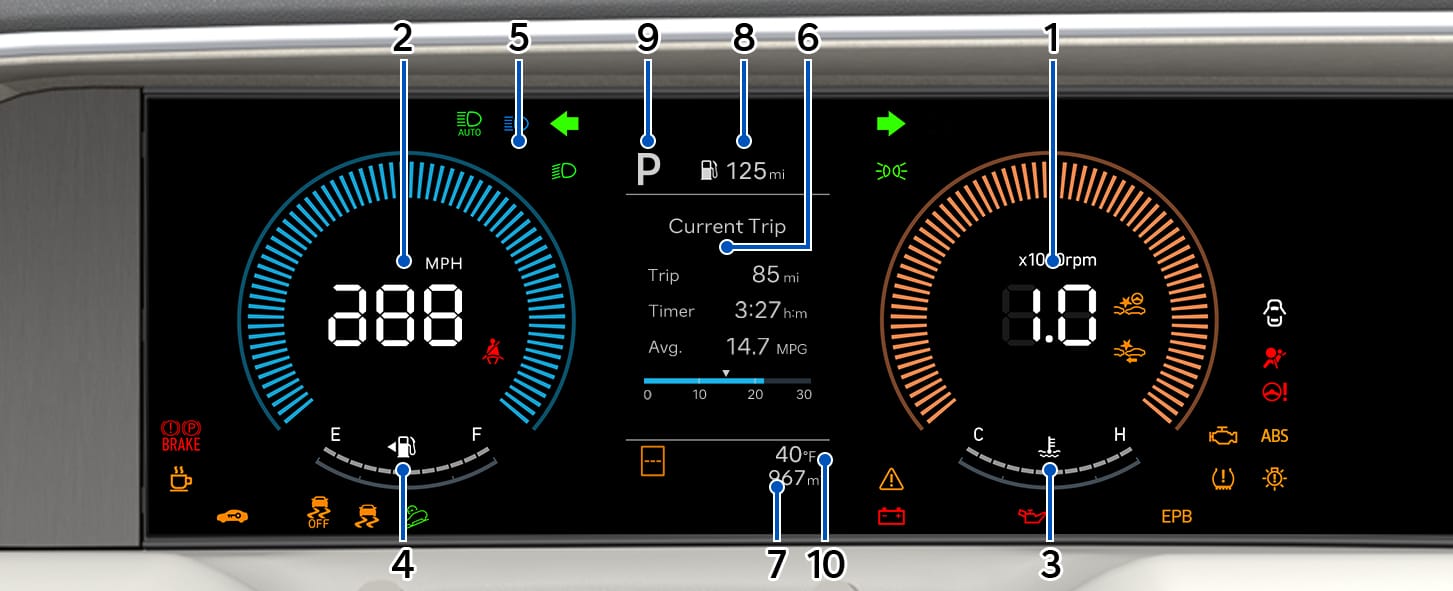

Type A

1C_ClusterOverview_1

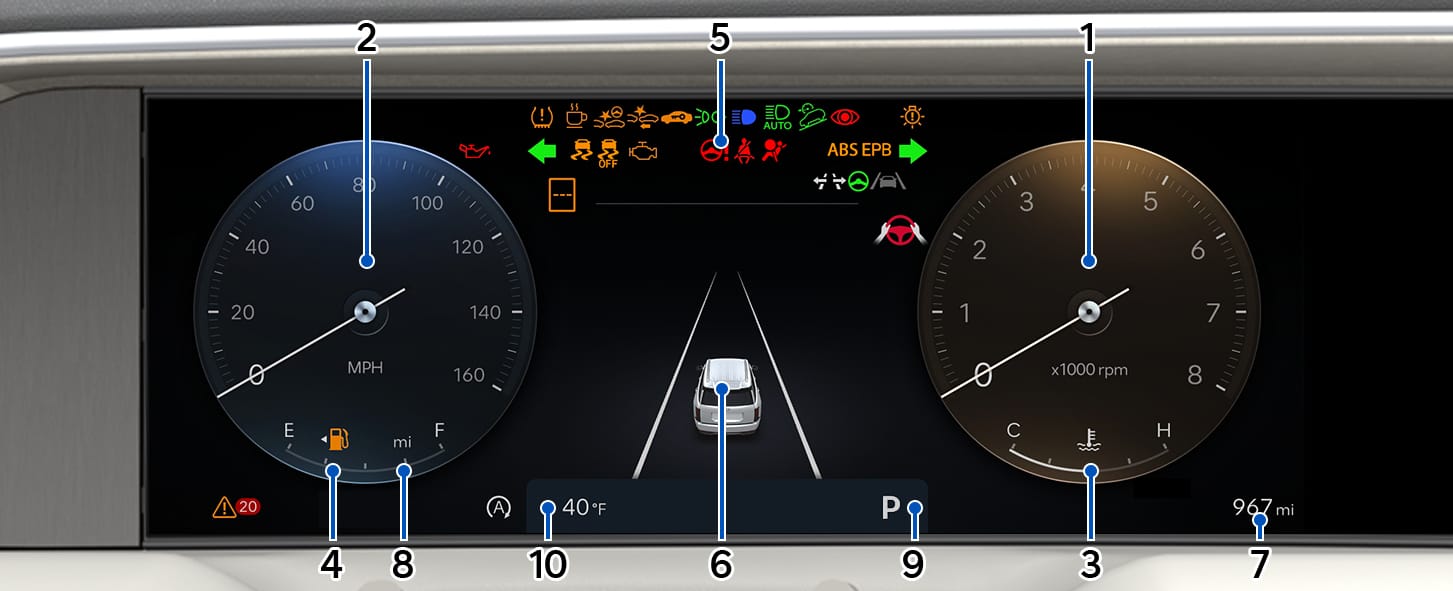

Type B

1C_ClusterOverview_3

1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. Cluster display
7. Odometer
8. Distance to empty
9. Transmission shift indicator
10. Outside temperature gauge
