The cabin air filter must be replaced according to the maintenance schedule. If the vehicle operates in severely air-polluted cities or on dusty rough roads for a long time, have it inspected more frequently and replaced immediately. Replace the cabin air filter by following the procedure below and be careful to avoid damaging other components.

1. Open the glove box and remove the support rod (1).



   2C_AirFilterReplacementProcedure

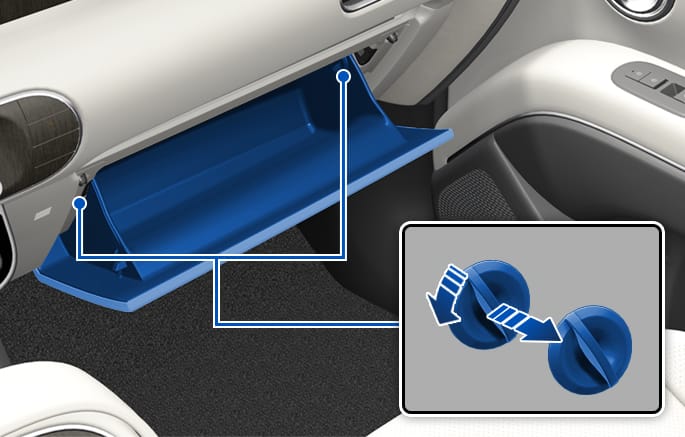

2. Push in both sides of the glove box to release the glove box stopper pins and allow the glove box to hang open.



   2C_AirFilterReplacementProcedure_2

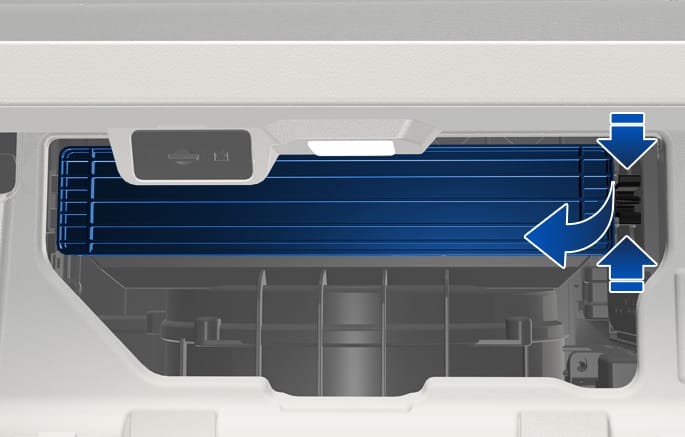

3. Press and hold the lock on the right side of the cover.



   2C_AirFilterReplacementProcedure_3

4. Pull out the cover and replace the cabin air filter.



   2C_AirFilterReplacementCaution

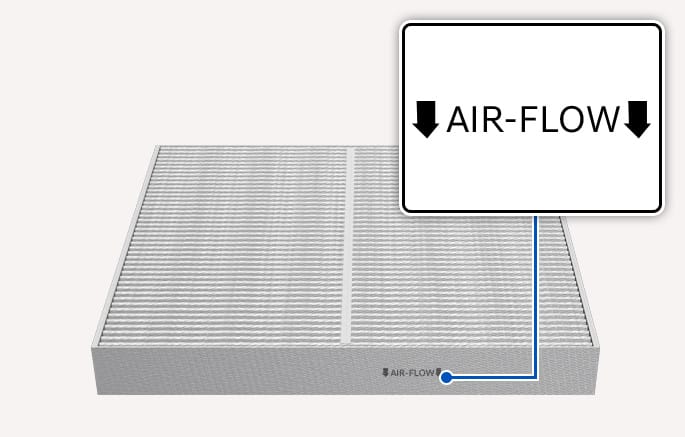

   Install a new cabin air filter with the arrow symbol ↓ facing down, to improve effectiveness.

5. Reassemble in the reverse order of disassembly.
