3rd Row Seat Adjustment (Power)

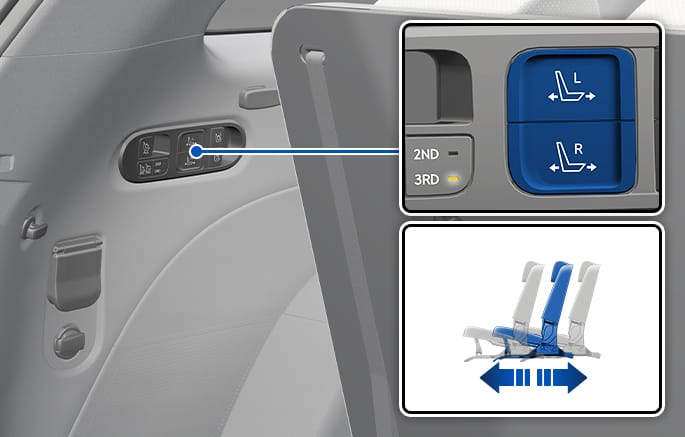

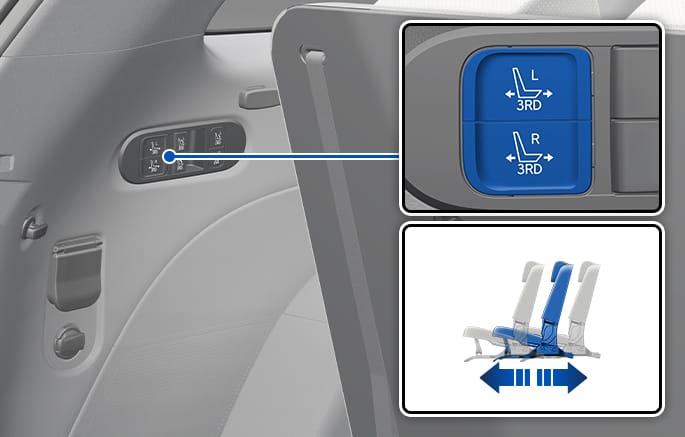

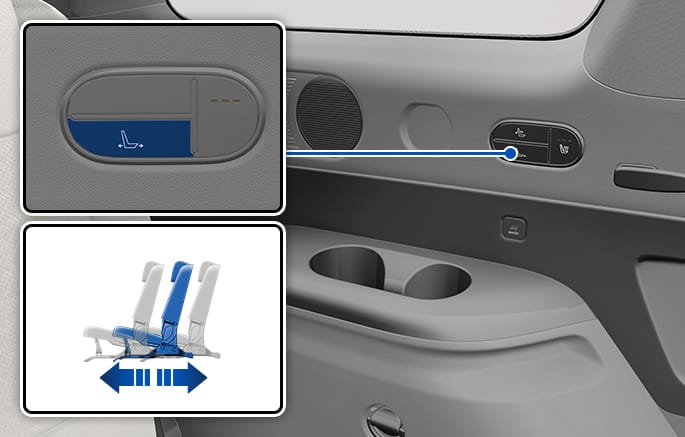

Forward and rearward adjustment

Press the 3rd row seat forward and rearward adjustment switch located on the left and right of the 3rd row side trim and cargo side trim.
When the adjustment is complete, release the switch.

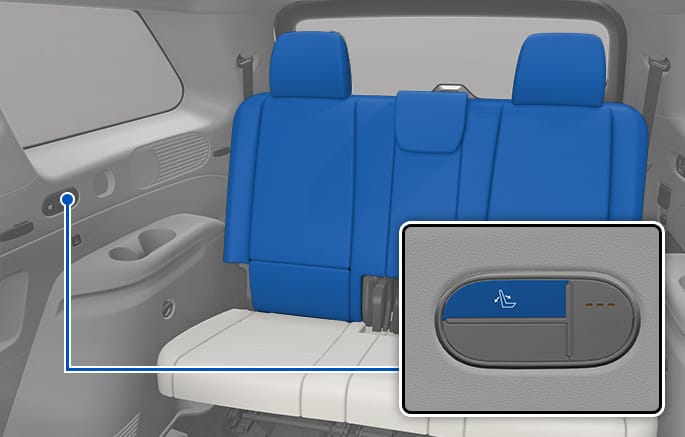

Seatback angle adjustment

Press the 3rd row seat back angle adjustment switch located on the left and right of the 3rd row side trim.
Carefully lean back on the seat and adjust it to the desired position.
When the adjustment is complete, release the switch.

Walk-in switch

When folding and sliding the 2nd row seat to access the 3rd row, ensure the vehicle is completely stopped. Only operate the switch after any occupants or passenger of the 2nd row seat have disembarked. Do not press the button to fold the seat if someone is seated or disembarking from the 2nd row seat, as sudden seat movement may result in injury.

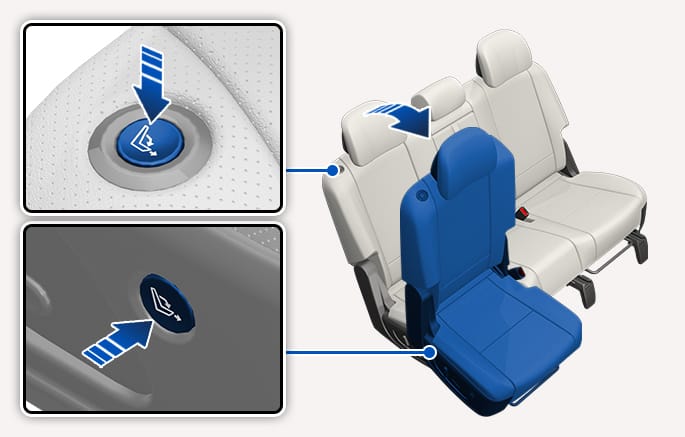

Tilting walk-in seat (7, 8-Seater, right side seat)

This function allows you to get in or out of the 3rd row seats without removing the child safety seat.

If a child seat is installed, operate after checking that the child seat is well fixed to the seat.

Store the 2nd row seat belts in the storage holder.
When the walk-in switch is pressed, both the seat cushion and seatback tilt forward.

2C_2ndSeatworkinSwitchBackTilt
Hold your seat and safely get into or out of the 3rd row seat.

Type A (7,8-seater, manual type): After entering or exiting the 3rd row seats, push the seat rearward and return the seatback to its original upright position.

Type B (7-seater, power type): After entering or exiting the 3rd row seats, return the seat cushion and seatback to their original positions by pressing the walk-in switch or pushing the forward/rearward switch and seatback control switch to return to its original position.

Type C (8-seater, power type): After entering or exiting the 3rd row seats, push the seat rearward, and return the seatback to the upright position by pressing the walk-in switch or pushing the seatback control switch to return to its original position. Return the seat cushion to its original position, using the front lever.

Do not operate the walk-in function when the seatback of the 2nd row seats are folded.

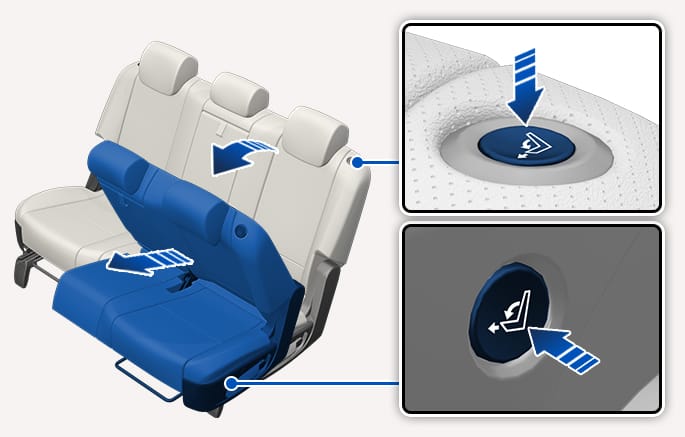

Sliding walk-in seat (8-Seater, left side seat)

Store the 2nd row seat belt in the storage holder.
Press either the 3rd row seat walk-in switch located at the top of the 2nd row seatback or the 3rd row seat walk-in switch on the outer side of the 2nd row seat. Then the seatback will fold and the seat will move forward slightly.

If necessary, pull seat slide adjustment lever below the seat cushion and push the 2nd row seat forward.

2C_2ndSeatWorkin_2
Hold the seat to safely get in or out of the 3rd row seat.

Type A (manual type): After entering or exiting the 3rd row seats, push the seat rearward, and return the seatback to its original upright position.

Type B (power type): After entering or exiting the 3rd row seats, push the seat rearward, press the walk-in switch to return the seatback to the upright position, and return the seat to its original position using the forward/reward lever.

If a seat is located in the center of 7-seater, it moves together when using the seat adjustment of the 2nd row seat behind the driver seat.

Walk-in switch may not operate properly when:

When the 2nd row seat belt is fastened
When the vehicle is moving more than 1.8 mph (3 km/h)
When the gear is not in P (Park)

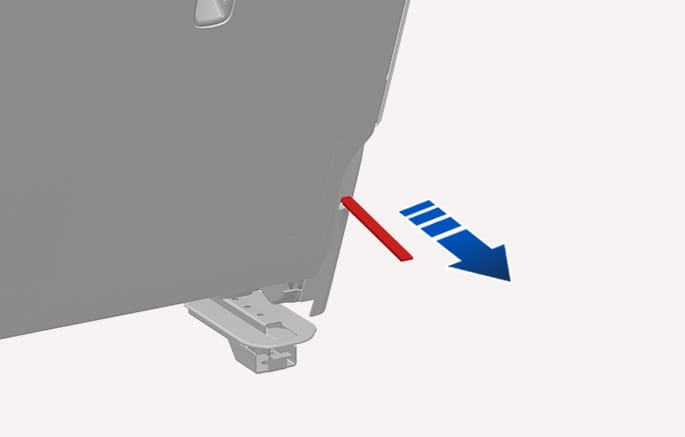

Emergency seat folding strap (8-Seater)

If the walk-in switch does not work, get out of the vehicle by pulling the seat folding strap in case of an emergency.

Manual adjustment: Pull the seat folding strap to fold 2nd row seats. Hold the seat and lower it safely.
Power adjustment: Pull the seat folding strap to move forward the 2nd row seats.

Never attempt to pull the strap while the 2nd row seat is occupied as the seat may suddenly move and cause the passenger on the seat to be injured. Use only the strap when the walk-in switch does not work.
