Folding the Rear Seats

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

Never allow a passenger to sit on a seat that is folded or not fully unfolded while the vehicle is moving. Serious injuries or fatalities may occur if the seatbelt fails to provide normal protection during sudden braking or a collision.

  1. Locate the seat belt toward the outboard position before folding down the seatback to avoid the seat belt system interfering with the seatback.

  2. Lower the rear head restraints to the lowest position.

  3. Route the seat belt webbing through the rear seat belt guides to prevent the belts from being trapped behind or under the seats.

  • Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.

  • When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.

  • Unsecured cargo in the passenger compartment can cause damage to the vehicle or injury to its occupants.

Manual adjustment

2nd row seat

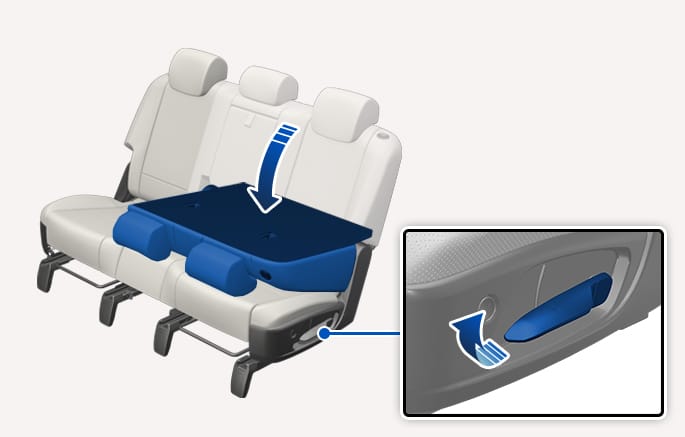

  • Pull the seatback folding lever (2nd row seat) to completely fold the seat toward the front of the vehicle. Make sure the seatback is locked in place.

    2C_RearSeatFoldingStep_1

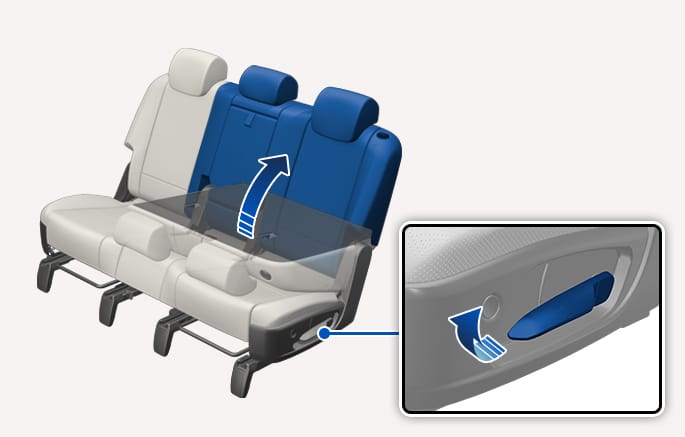

  • When using it as a seat, pull the seatback folding lever (2nd row seat) to fully raise the seatback. Adjust the seatback to the desired angle and release the lever to lock in place.

    2C_RearSeatFoldingStep_2

3rd row seat

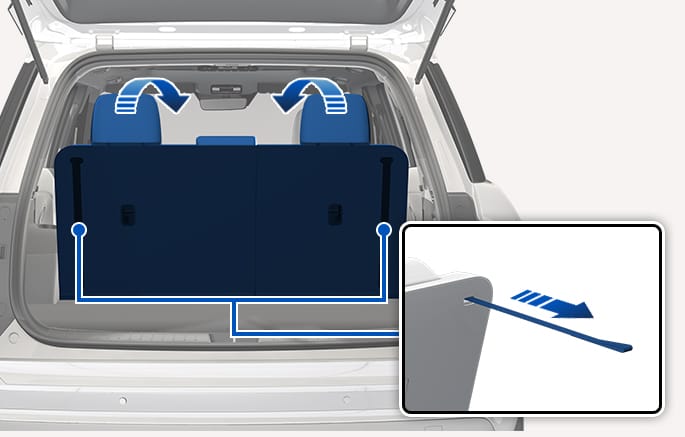

  • Pull the seatback angle adjustment strap to completely fold the seatback forward. Make sure the seatback is securely locked in place.

    2C_3ndSwitchFoldingStrap

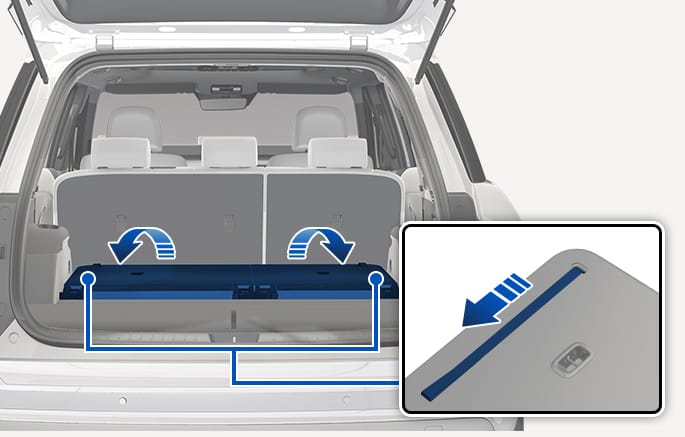

  • When using it as a seat, pull the seatback angle adjustment strap to fully raise the seatback. Adjust the seatback to the desired angle, and release the upper angle adjustment strap to lock in place. Make sure the seatback is locked in place.

    2C_3ndSeatUnFolding

  • Be careful when loading cargo through the rear passenger seats to prevent damage to the vehicle interior.

  • When cargo is loaded through the rear passenger seats, ensure the cargo is properly secured to prevent it from moving while driving.

  • Unsecured cargo in the passenger compartment can cause damage to the vehicle or injury to its occupants.

Power adjustment

2C_2ndSeatBeltHolder

2C_Adjust2ndSeatForwardBackwardAuto

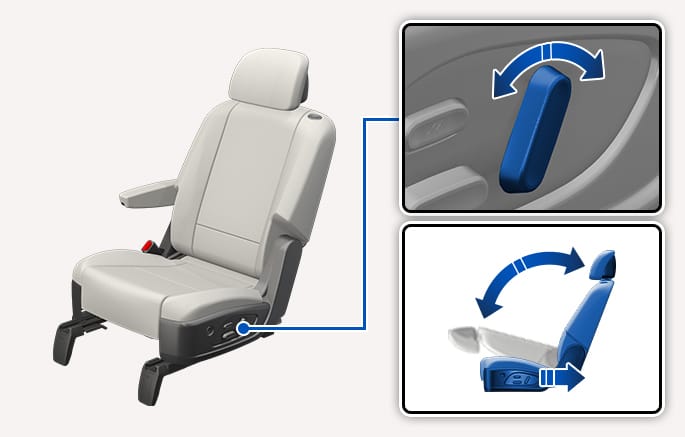

  • With the gear in P (Park), the seat belt unfastened, and the door open, fold the seatback forwards as far as possible, and pull the upper area of the seatback angle control switch forwards. The seatback is locked in the folded position.

  • If you stop pulling the switch while the seatback is folding or unfolding, the seatback stops moving. To resume, pull the switch again.

  • When the seat is folded, pull the upper part of the seatback angle control switch rearward to unfold the seatback.

  • Once the seatback is raised, lightly shake it back and forth to ensure it is securely locked before driving.

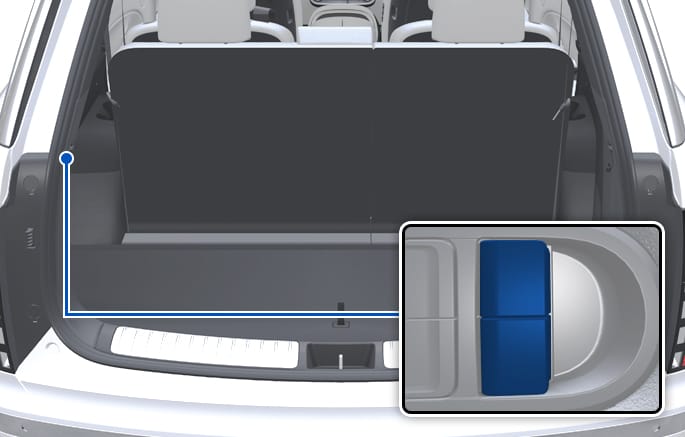

Seatback remote folding (Cargo area)

2C_RearSeatRemoteFolding

This feature can make it easier for you to fold or unfold the 2nd row, 3rd row seatback when the liftgate is open.

  1. Press the folding/unfolding switch located on the cargo area.

    • If you stop pulling the switch while the seatback is folding or unfolding, the seatback stops moving. To resume, pull the switch again.

    • When folding or unfolding the seatback, press or pull the switch and hold it until the seatback is fully folded or unfolded and movement stops.

    • If the Engine Start/Stop button is ON while folding or unfolding the seatback, the operation will temporarily stop. Once the vehicle is running, the operation will resume.

  2. Once the seatback is folded forward, the space can be used for cargo.

  3. If the seatback does not fold down completely, push it to make sure it’s fully folded.

Type

Operation

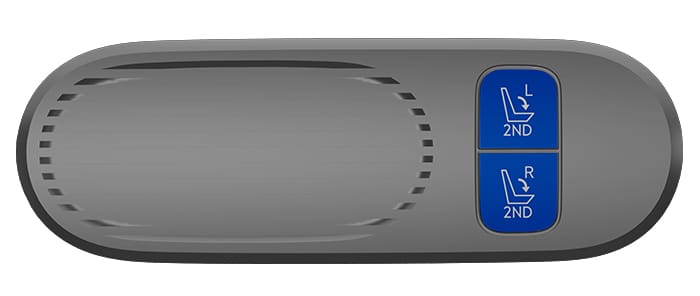

A

When you press the switch, the left (L) or right (R) seatback of the 2nd row seat folds.

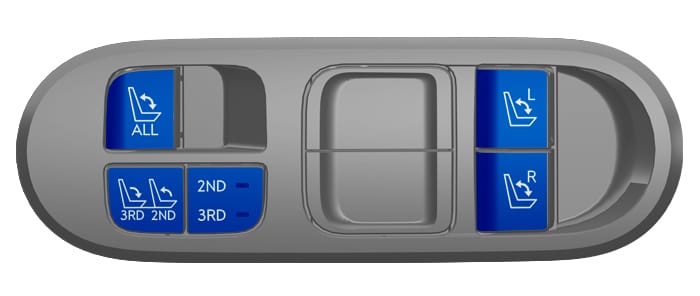

B

When you press and hold the ALL switch, the seatbacks of all 2nd row or 3rd row seats fold. To unfold the seatbacks, pull and hold the ALL switch.

When you press and hold the 2nd row optimisation mode switch, the 3rd row seatbacks fold, and the 2nd row seats move to the optimal position for passengers' comfort.

Select the 2nd or 3rd seats. The status indicator for the selected seats turns on.

When you press and hold this switch, the left (L) or right (R) seatbacks of the selected seats fold. To unfold the seatbacks, pull and hold the switch.

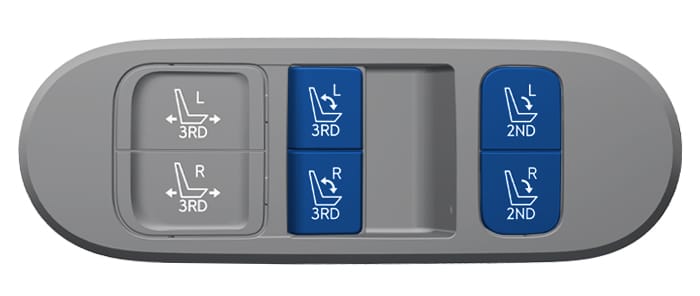

C

When you press and hold the 2ND switch, the left (L) or right (R) seatbacks of the 2nd row seats fold. To unfold the seatbacks, pull and hold the switch.

When you press and hold the 3RD switch, the left (L) or right (R) seatbacks of the 3rd row seats fold. To unfold the seatbacks, pull and hold the switch.

  • Always check for any occupants or passengers in the 2nd row and 3rd row seats before folding. Do not fold the seat if there are pets, luggage, passengers sitting in the 2nd row and 3rd row seats, or when passengers are getting off the vehicle. A sudden movement of the seat may cause injury.

  • Never allow a passenger to sit on a seat that is folded or not fully unfolded while the vehicle is moving. Serious injuries or fatalities may occur if the seatbelt fails to provide normal protection during sudden braking or a collision.

When the liftgate is closed, the remote folding switch does not work.
