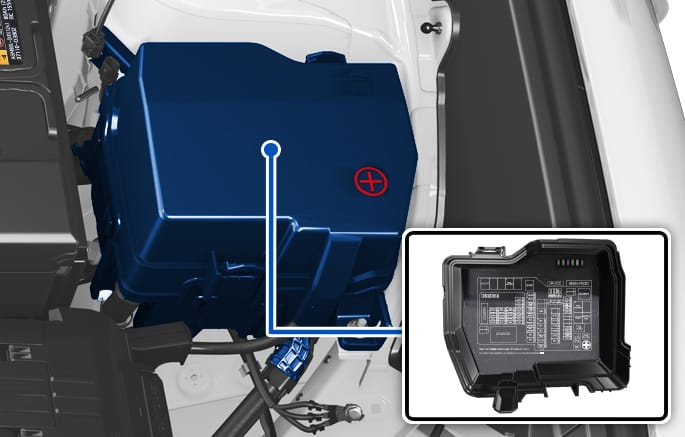

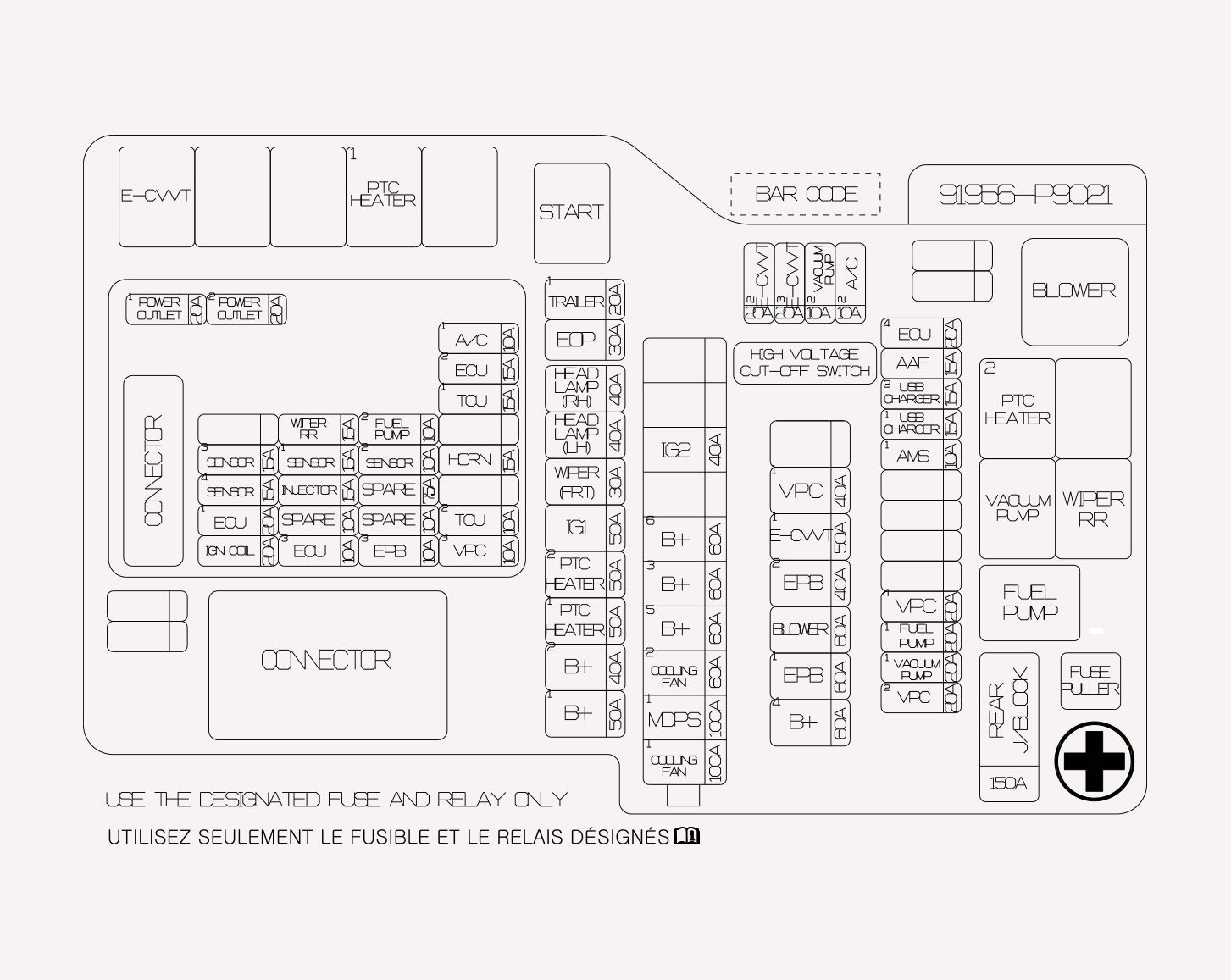

MULTI FUSE

IG2

40 A

PCB Block (IG2 Relay), E/R Junction Block (Start Relay)

B+6

60 A

PCB Block (Main Relay, Wiper Relay, Fuse - A/C1, Horn, B/ALARM Horn, TCU1)

B+3

60 A

PDC (Fuse - USB Charger5, P/SEAT PASS, P/SEAT DRV1, P/WINDOW LH/RH, AMP, SPARE (B+), Inverter, Module7, S/HEATER RR RH, E-SHIFTER1,P/SEAT RR RH 2)

B+5

60 A

PDC (Fuse - S/HEATER FRT,Wireless DCU, AIR BAG2, P/SEAT DRV2, Sunroof2, Sunroof1)

MDPS 1

100 A

MDPS Unit

COOLING FAN

100 A

Cooling Fan Controller

MIDI FUSE

REAR J/BLOCK

150 A

Rear Junction Block (S/B Fuse - REAR HEATED, Aux Batt, Power Tailgate, REAR Blower, 3rd S/HEATER, Trailer2/3/4, 3rd Row Seat Foldig, P/SEAT RR LH 2, Fuse - AWD, USB Charger3/4, Combi Lamp LH/RH, E-LSD

FUSE

ECU4

20 A

ECM

ACTIVE AIR FLAP

15 A

Active Air Flap (Upper, Lower LH/RH)

USB CHARGER 2

15 A

Passenger USB Charger Connector

USB CHARGER 1

15 A

Driver USB Charger Connector

AMS 1

10 A

Battery Sensor

VPC 4

20 A

VPC

FUEL PUMP 1

20 A

E/R Junction Block (Fuel Pump1 Realy)

VACUUM PUMP 1

20 A

E/R Junction Block (RLY.4)

VPC 2

20 A

VPC

VPC 1

40 A

VPC

EPB 2

60 A

ESP Control Module

BLOWER

60 A

E/R Junction Block (Blower Realy)

EPB 1

60 A

ESP Control Module

B+4

60 A

PDC (Fuse - BDC1, CCU, Barke Switch, P/SEAT RR LH, P/SEAT RR RH1, Door Lock, Tailgate Open, IPS13, Long Term Load Latch Relay (Fuse - Multi Media, Memory1/2))

TRAILER1

20 A

Electronic Brake Controller

EOP

30 A

Electronic Oil Pump

HEAD LAMP (RH)

40 A

Head Lamp RH

HEAD LAMP (LH)

40 A

Head Lamp LH

WIPER (FRT)

30 A

Front Wiper Motor

IG1

50 A

PCB Block (IG1 Relay, ACC Relay)

PTC HEATER 2

50 A

E/R Junction Block (Ptc Heater2 Relay)

PTC HEATER 1

50 A

E/R Junction Block (Ptc Heater1 Relay)

B+2

40 A

PDC (IPS11, IPS12)

B+1

50 A

PDC (IPS1,IPS4, IPS5, IPS6, IPS7)

POWER OUTLET 1

20 A

2ND & 3RD Seat Reclining Switch (Luggage)

POWER OUTLET 2

20 A

1ST Power Outlet

A/C 1

10 A

A/C Relay

TCU 1

15 A

TCM

WIPER RR

15 A

Rear Wiper Motor, E/R Junction Block (Wiper Rr Relay)

FUEL PUMP 2

10 A

E/R Junction Block (Fuel Pump Relay)

SENSOR 3

15 A

Canister Close Valve, Oil Level Sensor

SENSOR 1

15 A

Oxygen Sensor (UP/Down)

SENSOR 2

10 A

Purge Control Solenoid Valve, Oil Control Valve #2/#4 (Exhaust), Oil Control Valve #1/#3 (Intake)), Variable Oil Pump Solenoid Valve, Variable Intake Solenoid Valve, Cooling Fan Controller

HORN

15 A

Horn Relay

INJECTOR

15 A

Injector #1/#2/#3/#4/#5/#6

B/ALARM HORN

15 A

B/Alarm Horn Relay

ECU 1

20 A

ECM

TCU 2

10 A

TCM, Electronic Oil Pump

IGN COIL

20 A

Ignition Coil #1/#2/#3/#4/#5/#6

ECU 3

10 A

ECM

EPB 3

10 A

ESP Control Module

VPC 3

10 A

VPC
