2nd Row Seat Adjustment (Power)

Adjustment switch

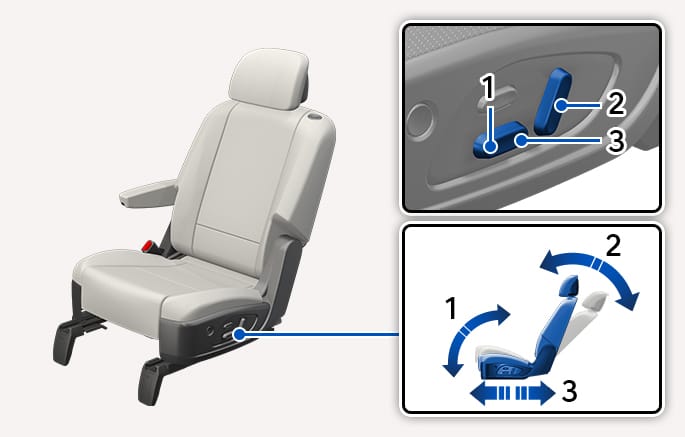

Seat side

2C_Adjust2ndSeat3seatsTypeForwardBackwardAuto3

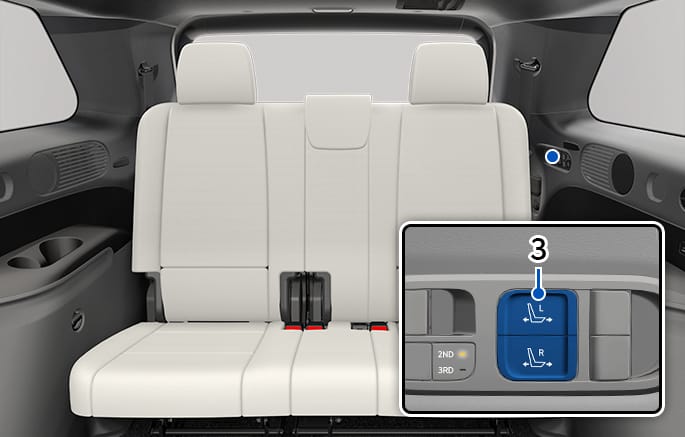

Cargo side trim

2C_Adjust2ndSeat3seatsTypeForwardBackwardAuto2

No.

Description

1

Seat cushion angle adjustment

Push the front portion of the control switch up or down to control the seat cushion angle.

2

Adjusting the seatback angle

Push the control switch forward or rearward to adjust the seat to the desired position

Seatback folding/unfolding

With the gear in P (Park) and the door open, fold the seatback forwards as far as possible, and pull the upper area of the seatback angle control switch forward for more than 1 second. The seatback is locked in the folded position.

To unfold the seatback, pull the upper area of the seatback angle control switch rearward for more than 1 second.

If you pull the control switch while the seatback is being folded or unfolded, the seatback stops moving. To resume, pull the control switch again.

3

Forward and rearward adjustment

Seat side switch: Push the control switch forward or rearward to adjust the seat to the desired position.

Cargo trim side switch (if equipped): When you press the 2ND switch, turns on indicator for selected seats. Push the left (L) or right (R) switch of the 2nd row seat to the desired position.

To prevent damage to ambient components, seatback angle adjustment (2) and cushion angle adjustment (1) may be limited depending on the position of the 2nd row seating.

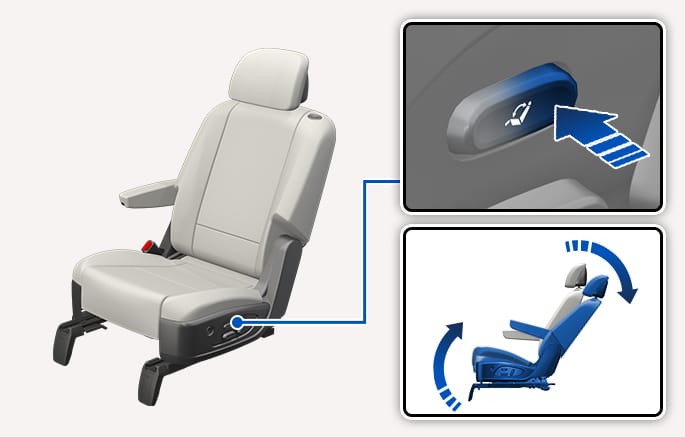

Using relaxation mode (7-Seater)

This mode provides a balanced sitting posture optimised for rest, distributing the body’s load evenly to reduce the burden on joints. This helps relieve fatigue.

  • Do not use relaxation mode while driving. The driver's attention is distracted, and this may lead to accidents.

  • Be careful not to get any body parts or objects caught when the feature is in use.

  • Using this feature while driving may increase the risk of injury in the event of an accident. Use this feature only when the vehicle is parked or stopped.

  • If you use this feature while wearing the seat belt, the seat belt does not fasten yourself properly, increasing your risk of injury in the event of an accident.

  • Before using this feature, check for any passengers or objects in the rear seats. Ensure sufficient space between the front and rear seats before using this feature.

  • Do not use two different switches simultaneously. The seating system may be damaged.

2C_2ndSeatRelaxationComfortSeat

  • 2nd row behind the driver seat: Push the control switch rearward to move back. The seat back will be tilted back.

    • Relaxation function would not operate if you locate the driver seat to the farthest position.

  • 2nd row behind the passenger seat: Push the control switch long to locate the passenger seat to the desired position. Then the rear seat moves to the rear end and the seatback will be tilted back.

The front passenger seat will not move in the following cases:

  • When there is a person in the front passenger seat

  • When the seat belt buckle on the front passenger seat is fastened

  • When the front passenger door is open

  • When the rear seat moves forward, you can recline the seat by using the angle control switch.

  • If you adjust the Relax Mode switch or the seat adjustment switch (seatback angle adjustment, cushion angle adjustment, leg rest angle adjustment), it will stop to operate.

  • Once the operation is complete, you can adjust the seat directly using the seat adjustment switch for a more comfortable position.

  • After adjusting the seat position, pressing the front part of the relaxation switch 3 times in about 2 seconds will memorize the current position as the return position.

  • If the front part of the relaxation switch is pressed and held, the seat will return to the previously saved seat position (initial setting position).

When the relaxation mode is activated in the second row seat on the front passenger side, the front passenger seat may be adjusted to a specific position (if equipped).

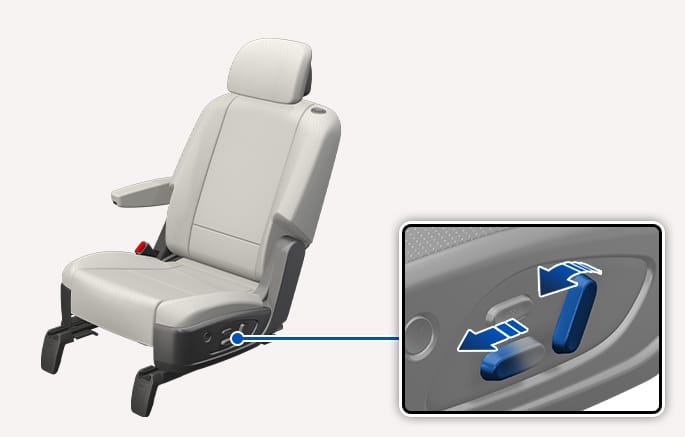

Resetting a seat

2C_2ndSeatRelaxationResetSheet

  1. With the Engine Start/Stop button is ON, bring the vehicle to a complete stop, and open the door of the seat you wish to reset.

  2. Pull the seat forward as far as possible, and adjust the seatback to the fully upright position.

  3. Push both the seat's forward/rearward switch and the seatback angle control switch towards the forward position, simultaneously for about 2 seconds.

  4. An audible warning sounds 3 times, and seat resetting begins (if equipped).

  5. The resetting process is complete after the seat, seatback angle and cushion angle are returned to their original positions.

  • When resetting is complete, adjust the seat to fit the occupant.

  • Before resetting, move the front seats to a position that can avoid any interference during the resetting process.

Conditions that disable seat resetting

The resetting process and audible warning stop, if:

  • the seat control switch is pressed,

  • you drive the vehicle at the speed 3 mph (5 km/h) or above,

  • the door of the seat to be reset is closed, or

  • the Engine Start/Stop button is changed to the OFF position.

  • If resetting stops before the process is complete, restart the resetting procedure. The use of Relaxation mode may be limited if resetting has not been completed.

  • Before resetting the Relaxation mode, make sure there are no objects on or around the seat.

After resetting is completed, adjust the seat to the desired position.
