LKA Operation

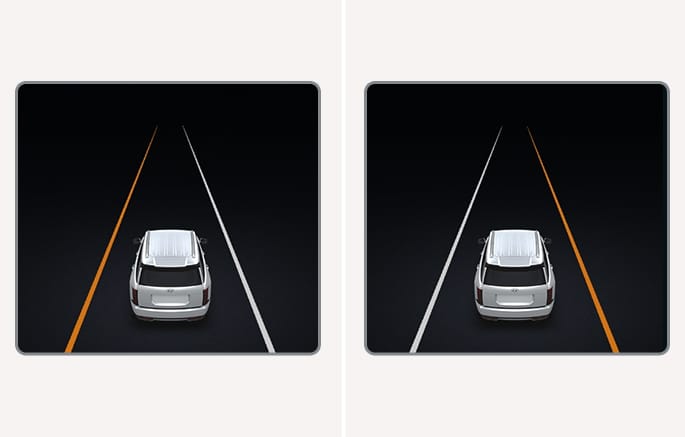

2C_LaneDepartureWarning

To warn the driver that the vehicle is departing from the projected lane in front without activating the turn signal, the green S indicator light blinks on the instrument cluster, and the steering wheel makes adjustments to keep vehicle inside the lane.

If the vehicle is departing from the projected lane, an additional audible warning sounds and the steering wheel vibrates.

LKA operates under the following conditions:

  • Your vehicle speed is about 40-120 mph (60-200 km/h)

  • When the lane markings (or road edges) are detected

Precautions

  • You can steer your vehicle even when steering is assisted by LKA.

  • It may require more or less force to turn the steering wheel when LKA is providing steering assistance.

  • When lane markings (or road edges) are detected, the lane lines on the cluster display changes from gray to white.

  • Lanes displayed on the cluster display may differ from the actual lanes.

  • When the lane markings (or road edges) are detected and Highway Lane Change Assist is on, the lane lines on the cluster display may change to green. (if equipped)

  • For more information on instrument cluster settings, refer toCluster Settings.

  • The steering wheel may not be assisted if the steering wheel is held very tight or the steering wheel is steered over a certain degree.

  • LKA does not operate at all times. It is the responsibility of the driver to safely steer the vehicle and to maintain the vehicle in its lane.

  • The hands-off warning message may appear late depending on road conditions. Always have your hands on the steering wheel while driving.

  • If the steering wheel is held very lightly, the hands-off warning message may appear because LKA may not recognize that the driver has their hands on the steering wheel.

  • If you attach objects to the steering wheel, the hands-off warning may not work properly.

If the driver takes their hands off the steering wheel for several seconds, the warning message appears on the cluster display, and an audible warning sounds in stages.
