Driver Assistance System Sensors

The driver assistance systems on your vehicle use cameras and sensors to help detect potential hazards in the vicinity of your vehicle.

2C_ADASSensor

2C_ADASSensor_1

2C_IndoorCamera

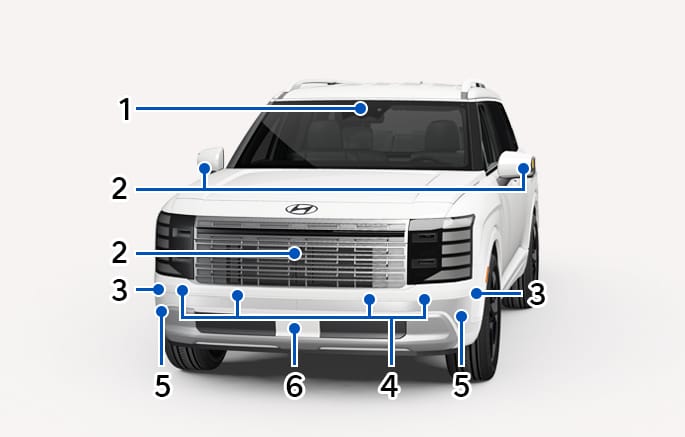

  1. Front view camera
  2. Wide-front/side view camera
  3. Front side ultrasonic sensors
  4. Front ultrasonic sensors
  5. Front corner radar
  6. Front radar

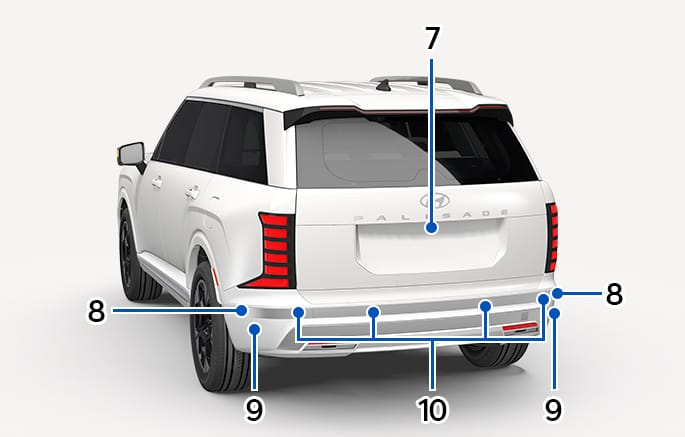

  7. Wide-rear view camera
  8. Rear side ultrasonic sensors
  9. Rear corner radar
  10. Rear ultrasonic sensors

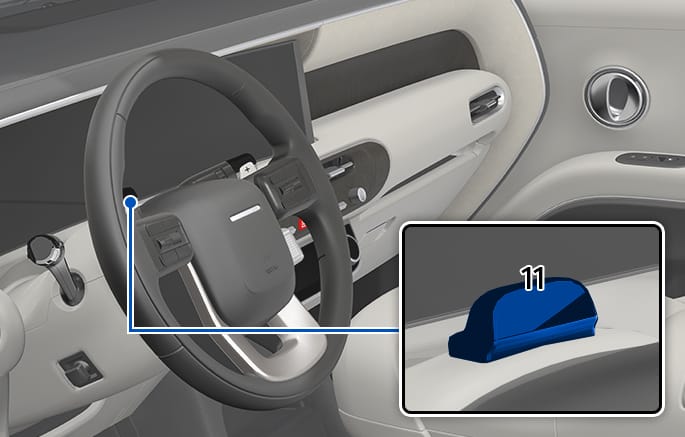

  11. In-cabin camera

  • Never disassemble the sensor or sensor assembly, and never apply any impact on it.

  • If the sensors have been replaced or repaired, have your vehicle inspected by an authorized HYUNDAI dealer.

  • If there is impact on or near the sensors, driver assistance system may not operate properly even though a warning message does not appear on the instrument cluster. Have your vehicle inspected by an authorized HYUNDAI dealer.

  • If the sensors or the surroundings are contaminated or damaged, driver assistance system may not work properly.

  • Always keep the sensors in good condition to maintain optimal performance of driver assistance system.
