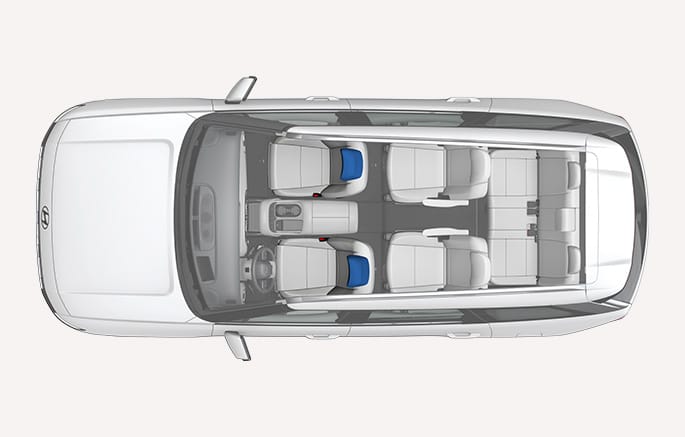

Front Seat Head Restraints

2C_HeadrestOverview

The driver's and front passenger's seats are equipped with adjustable head restraints for the passenger's safety and comfort.

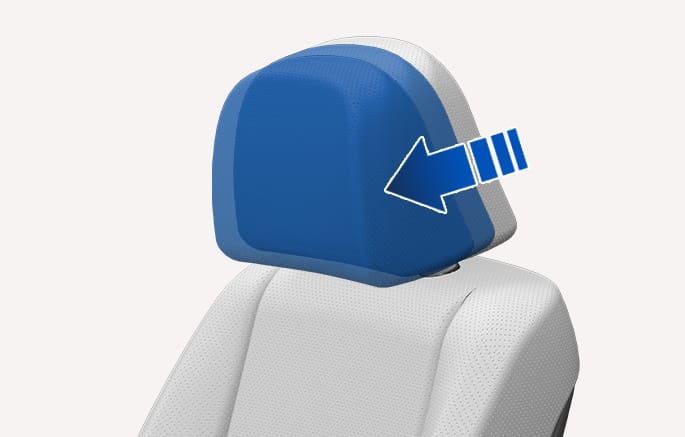

Forward and rearward adjustment

2C_AdjustHeadrestForwardBackward

The head restraint may be adjusted forward to 3 different positions by pulling the head restraint forward to the desired position. To adjust the head restraint to its furthest rearwards position, pull it fully forward to the farthest position and release it.

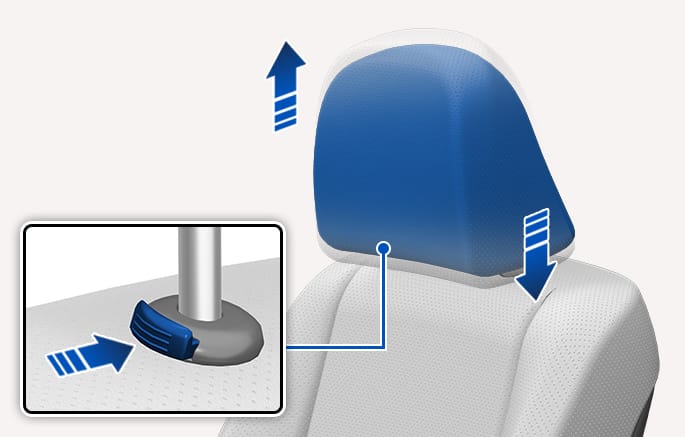

Adjusting the height up and down

2C_AdjustHeadrestUpDown

Press and hold the release button on the head restraint support to adjust the height.

Removing the head restraint

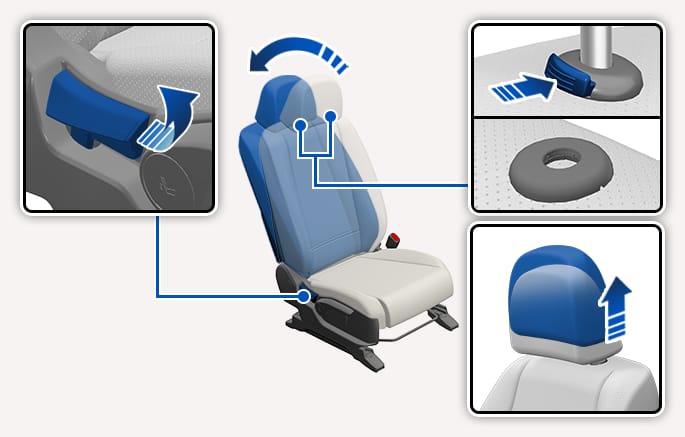

Manual seat

2C_RemoveHeadrestManual

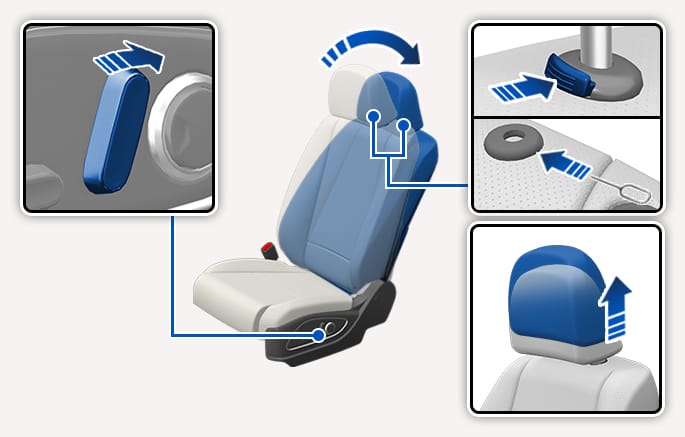

Power seat

2C_RemoveHeadrestAuto

  1. Recline the seatback with the seatback angle lever or switch.

  2. Raise the head restraint as far as it can go.

  3. Simultaneously press the headrest release button and the groove on the opposite side using a pin or another sharp object, and then lift the headrest up to detach it.

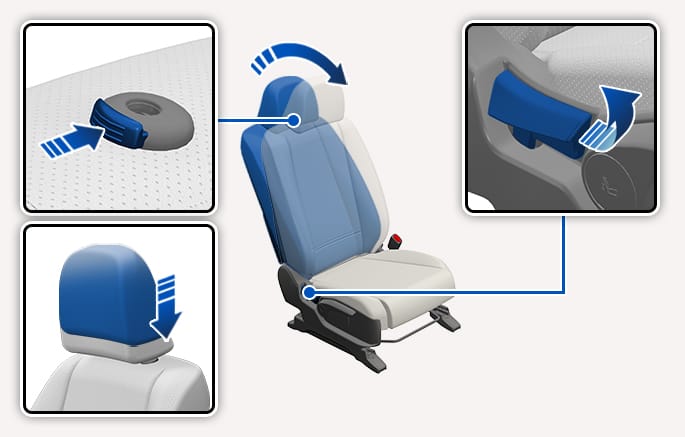

Reinstalling the head restraint
Manual seat

2C_InstallHeadrestManual

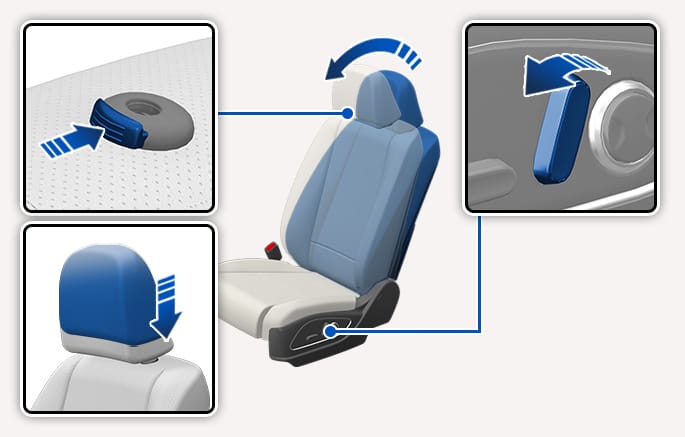

Power seat

2C_InstallHeadrestAuto

  1. Recline the seatback.

  2. Put the head restraint poles into the holes while pressing the release button.

  3. Adjust the head restraint to the appropriate height.

  4. Return the seatback with the seatback angle lever or switch.
