Camera Cleaning System

Contaminated camera (Digital Center Mirror camera) can blur the image displayed on the screen. Spray the washer to clean it.

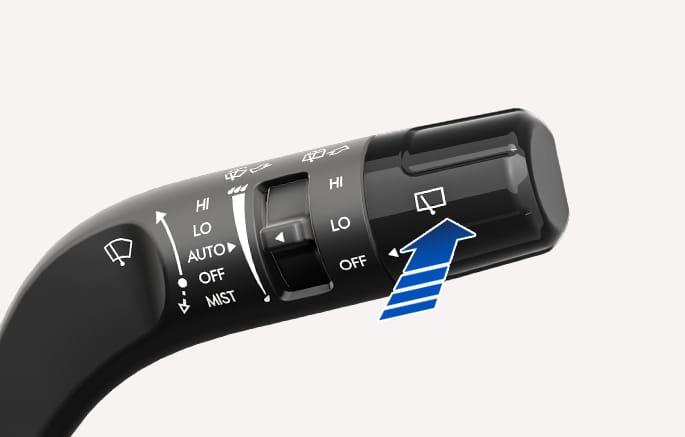

2C_WasherRearSwitch

To spray washer fluid on the camera, slide the wiper switch toward the cluster.

  • The rear window wiper operates and washer fluid is sprayed onto the rear window and camera.

  • If you push and hold the switch, the wipers will operate and washer fluid will be sprayed repeatedly on the rear window and camera.

  • Release the switch once the camera is cleaned. Washer will stop spraying.

  • If dirt on the camera has not been removed, clean the camera lens with a soft cloth or cotton swab moistened with water.

  • Be careful not to clog the nozzle when washing the car or maintaining the vehicle.

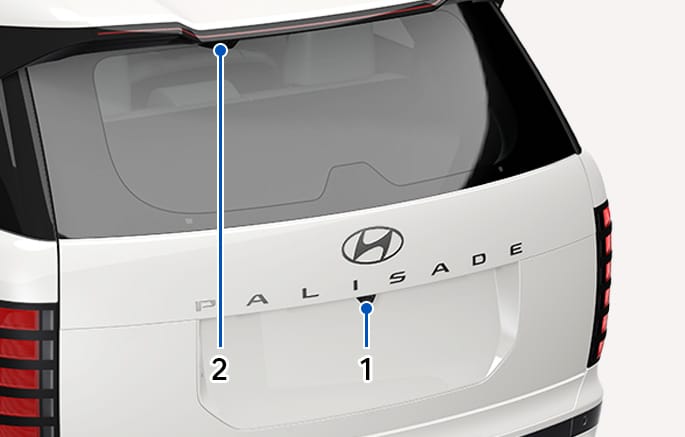

    2C_3TypesOfCameraNozzles

    1. Wide-rear view camera
    2. Digital center mirror camera (if equipped)

  • If the nozzle becomes contaminated, remove the contamination by wiping it with a soft cloth or cotton swab moistened with water.
