If You Have a Flat Tire (with Spare Tire)

Changing a tire can be dangerous. Follow the instructions in this section when changing a tire to reduce the risk of serious injury or death.

Jack and tools

The jack, jack handle, wheel lug nut wrench and socket are stored in the cargo area under the luggage box cover.

The jack is provided for emergency tire changing only.

To prevent the jack from rattling while the vehicle is in motion, store it properly.

Follow jacking instructions to reduce the possibility of personal injury.

Removing and storing the spare tire

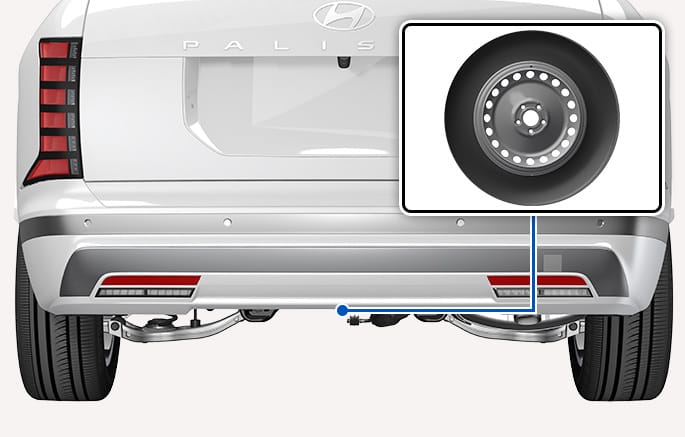

Your spare tire is stored underneath your vehicle, directly below the cargo area.

To remove the spare tire:

Open the liftgate.

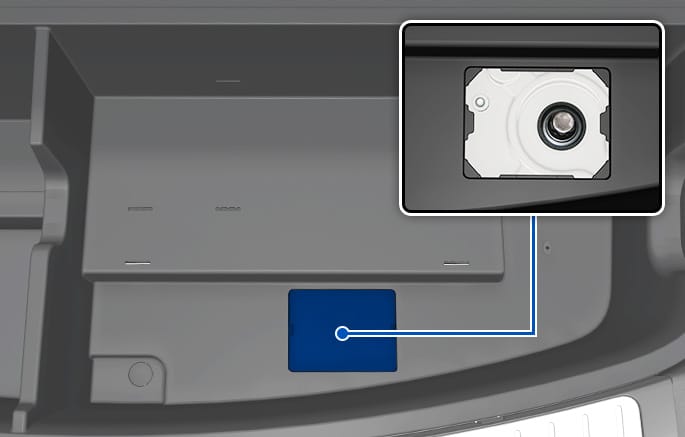

Find the plastic hex bolt cover and remove the cover with a flat-blade screwdriver.
2C_SpareTireReplacementPrecedure_1

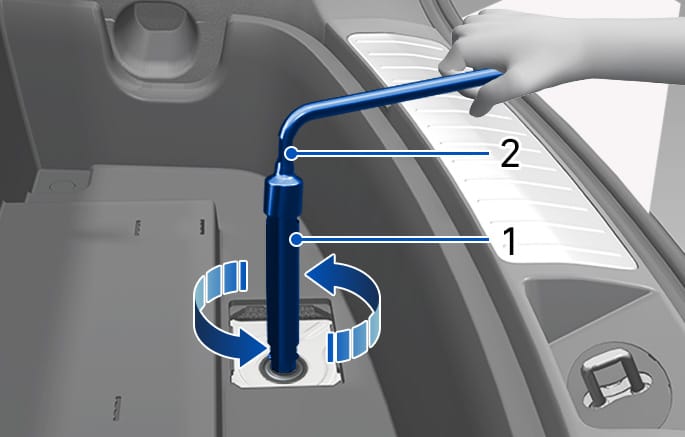

Connect the socket and wheel lug nut wrench to the bolt. Loosen the bolt enough to lower the spare tire. Turn the wrench counterclockwise until the spare tire reaches the ground.

2C_SpareTireReplacementPrecedure_2
1. Socket
2. Wheel lug nut wrench

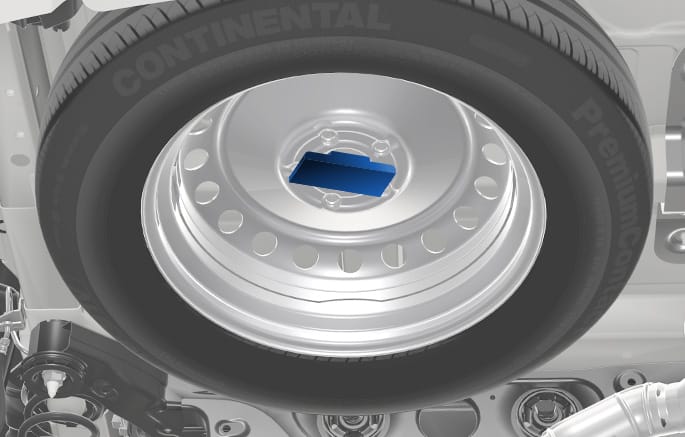

After the spare tire reaches the ground, continue to turn the wrench counterclockwise, and draw the spare tire outside. Never rotate the wrench excessively, otherwise the spare tire carrier may be damaged.
2C_SpareTireReplacementPrecedure_3

To store the spare tire:

Lay the tire on the ground with the valve stem facing up.
Place the wheel under the vehicle and install the retainer guide and chain through the wheel center.
Turn the wrench clockwise until it clicks.

Ensure the spare tire retainer guide is properly aligned with the center of the spare tire to prevent the spare tire from 'rattling'.
Otherwise, it may cause the spare tire to fall off the carrier and lead to an accident.

Changing tires

A vehicle can slip or roll off of a jack causing serious injury or death to you or those nearby. Take the following safety precautions:

Do not get under a vehicle that is supported by a jack.
NEVER attempt to change a tire in the lane of traffic. ALWAYS move the vehicle completely off the road on level, firm ground away from traffic before trying to change a tire. If you cannot find a level, firm place off the road, call a towing service for assistance.
Be sure to use the jack provided with the vehicle.
ALWAYS place the jack on the designated jacking positions on the vehicle and NEVER on the bumpers or any other part of the vehicle for jacking support.
Do not start or run the engine while the vehicle is on the jack.
Do not allow anyone to remain in the vehicle while it is on the jack.
Keep children away from the road and the vehicle.

Follow these steps to change your vehicle's tire:

Park on a level, firm surface.
Shift the gear to P (Park), apply the parking brake, and press the Engine Start/Stop button to the OFF position.
Press the hazard warning flasher button.
Remove the wheel lug wrench, jack, jack handle, and spare tire from the vehicle.

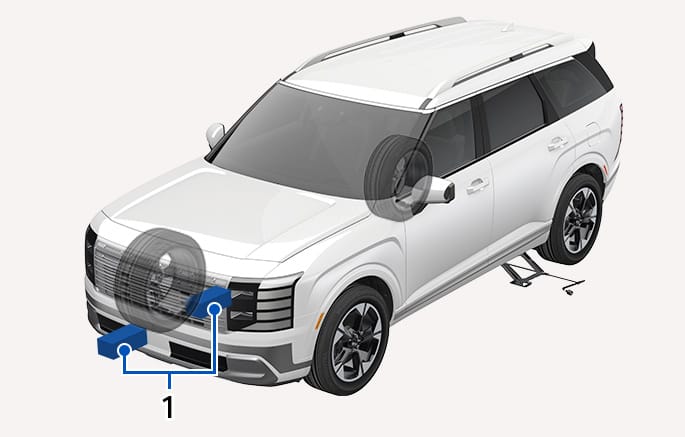

Block both the front and rear of the tire diagonally opposite of the tire you are changing.
2C_SpareTireReplacementPrecedure_8
1. Block

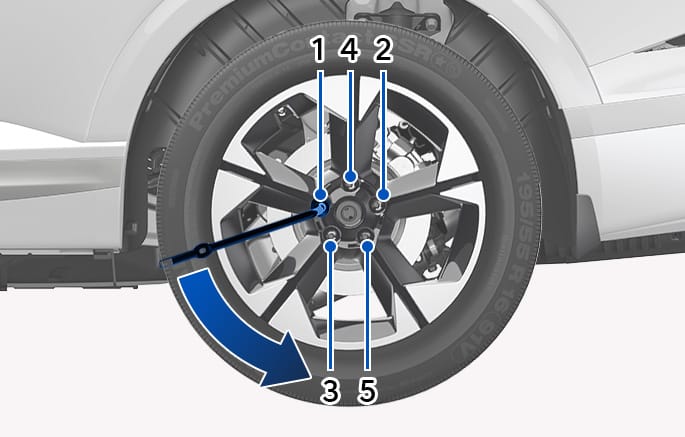

Loosen the wheel lug nuts counterclockwise one turn each in the order shown above, but do not remove any lug nuts until the tire has been raised off of the ground.
2C_SpareTireReplacementPrecedure_4

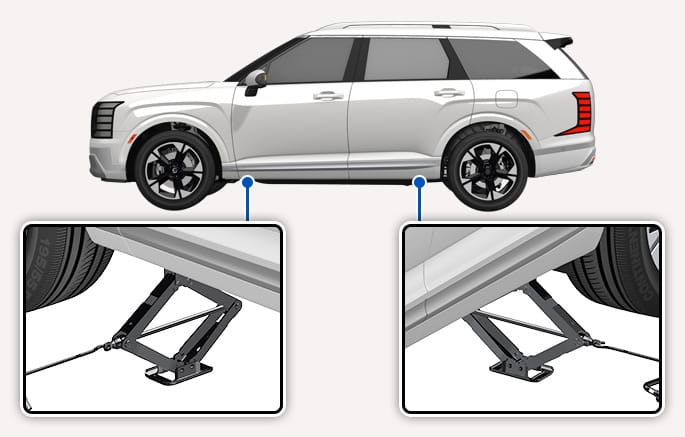

Place the jack at the designated jacking position under the frame closest to the tire you are changing. The jacking positions are plates welded to the frame with two notches. Never jack at any other position or part of the vehicle. Doing so may damage the side seal molding or other parts of the vehicle.

2C_SpareTireReplacementPrecedure_5

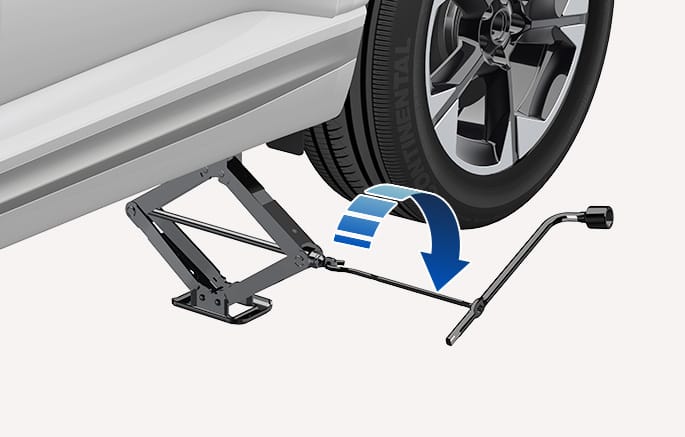

Insert the jack handle into the jack and turn it clockwise, raising the vehicle until the tire just clears the ground. Make sure the vehicle is stable on the jack.

2C_SpareTireReplacementPrecedure_6
Loosen a wheel bolt with the wheel lug wrench and remove it with your fingers.

Slide the wheel off the studs and lay it flat so it cannot roll away. To put the wheel on the hub, pick up the spare tire, line up the holes with the studs and slide the wheel onto them. If this is difficult, tip the wheel slightly and get the top hole in the wheel lined up with the top stud. Then jiggle the wheel back and forth until the wheel can be slid over the other studs.

Wheels may have sharp edges. Handle them carefully to avoid possible severe injury. Before putting the wheel into place, be sure that there is nothing on the hub or wheel (such as mud, tar, gravel, etc.) that interferes with the wheel from fitting solidly against the hub.

If there is, remove it. If there is not good contact on the mounting surface between the wheel and hub, the wheel nuts could come loose and cause the loss of a wheel. Loss of a wheel may result in loss of control of the vehicle. This may cause serious injury or death.
To reinstall the wheel, hold it on the studs, put the wheel nuts on the studs and tighten them finger tight. The nuts should be installed with their tapered small diameter ends directed inward. Jiggle the tire to be sure it is completely seated, then tighten the nuts as much as possible with your fingers again.
Lower the vehicle to the ground by turning the wheel lug wrench counterclockwise.
2C_SpareTireReplacementPrecedure_7

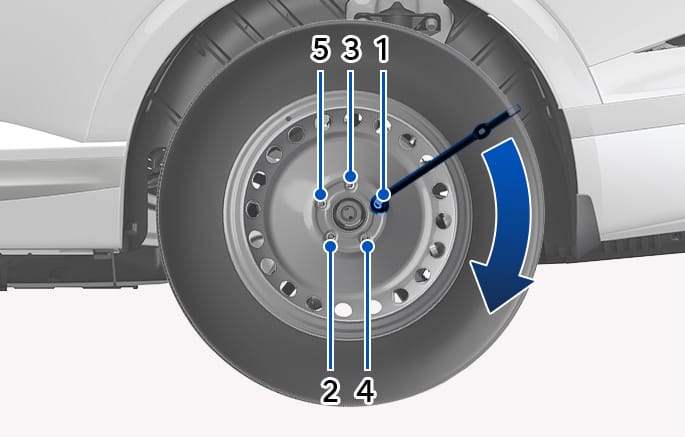

Use the wheel lug wrench to tighten the wheel bolts in the order shown. Double-check each wheel bolts until they are tight. After changing tires, have your vehicle inspected by an authorized HYUNDAI dealer and tighten the wheel bolts to their proper torque as soon as possible. The wheel bolt should be tightened to 79-94 lbf.ft (11-13 kgf.m).

If you have a tire gauge, check the tire pressure (For more information, refer to Tires and Wheels).

If the pressure is lower or higher than recommended, drive slowly to the nearest service station and adjust it to the recommended pressure.

Always reinstall the valve cap after checking or adjusting tire pressure. If the cap is not replaced, air may leak from the tire. If you lose a valve cap, buy another and install it as soon as possible.

After changing tires, secure the flat tire and return the jack and tools to their proper storage locations.

Wheel studs

If the studs are damaged, they may lose their ability to retain the wheel. This could lead to the loss of the wheel and a collision resulting in serious injuries.

Your vehicle has metric threads on the studs and wheel bolts. Make certain during tire changing that the same bolts that were removed are reinstalled. If you have to replace your wheel bolts make sure they have metric threads to avoid damaging the studs and ensure the wheel is properly secured to the hub. Have your vehicle inspected by an authorized HYUNDAI dealer.

Check the tire pressure as soon as possible after installing a spare tire. Adjust it to the recommended pressure.

If any of the equipment such as the jack, wheel bolts, studs, or other equipment is damaged or in poor condition, do not attempt to change the tire and call for assistance.

Use of compact spare tires

Compact spare tires are designed for emergency use only. Drive carefully on the compact spare tire and always follow the safety precautions.

To prevent compact spare tire failure and loss of control possibly resulting in an accident:

Use the compact spare tire only in an emergency.
NEVER operate your vehicle over 50 mph (80 km/h).
Do not exceed the vehicle's maximum load rating or the load carrying capacity shown on the sidewall of the compact spare tire.
Do not use the compact spare tire continuously. Repair or replace the original tire as soon as possible to avoid failure of the compact spare tire.

When driving with the compact spare tire mounted to your vehicle:

Check the tire pressure after installing the compact spare tire. The compact spare tire should be inflated to 60 psi (420 kPa).
Do not take this vehicle through an automatic car wash while the compact spare tire is installed.
Do not use the compact spare tire on any other vehicle because this tire has been designed especially for your vehicle.
The compact spare tire's tread life is shorter than a regular tire. Inspect your compact spare tire regularly and replace worn compact spare tires with the same size and design, mounted on the same wheel.
Do not use more than one compact spare tire at a time.
Do not tow a trailer while the compact spare tire is installed.

To prevent damaging the compact spare tire and your vehicle:

Drive slowly enough for the road conditions to avoid all hazards, such as a potholes or debris.
Avoid driving over obstacles. The compact spare tire diameter is smaller than the diameter of a conventional tire and reduces the ground clearance about 1 in. (25 mm).
Do not use tire chains on the compact spare tire. Because of the smaller size, a tire chain will not fit properly.
Do not use the compact spare tire on any other wheels, nor should standard tires, snow tires, wheel covers or trim rings be used with the compact spare wheel.
Do not suddenly accelerate or decelerate 0-25 mph (0-40 km/h) in any driving mode. It may cause leakage of transfer oil.

When the original tire and wheel are repaired and reinstalled on the vehicle, the wheel bolt torque must be set correctly. The correct wheel bolt tightening torque is 79-94 lbf.ft (11-13 kgf.m).

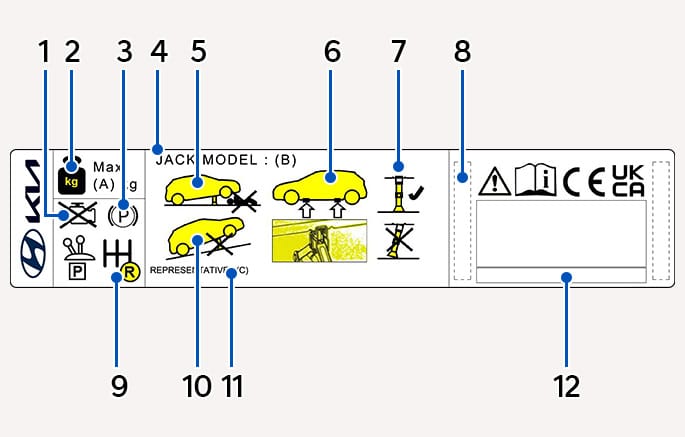

Jack label
