2nd Row Seat Adjustment (Manual)

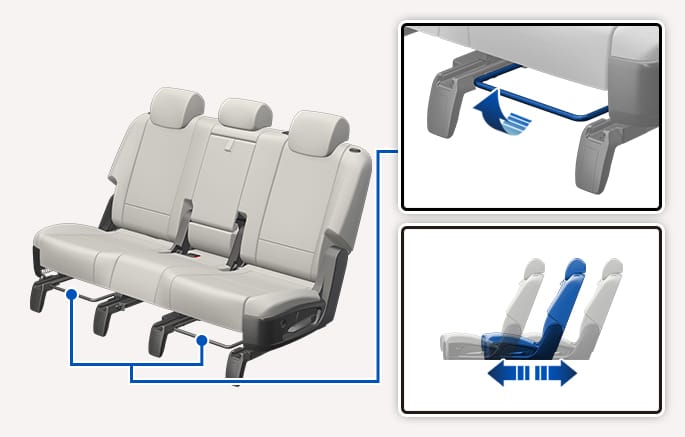

Forward and rearward adjustment

2C_2ndSeatAdjust3seats

Slide the seat while pulling up and holding the seat slide adjustment lever. Release the lever at the position you desire.

Adjust the seat before driving, and make sure the seat is locked securely by trying to move forward and backward without using the lever. If the seat moves, it is not locked properly.

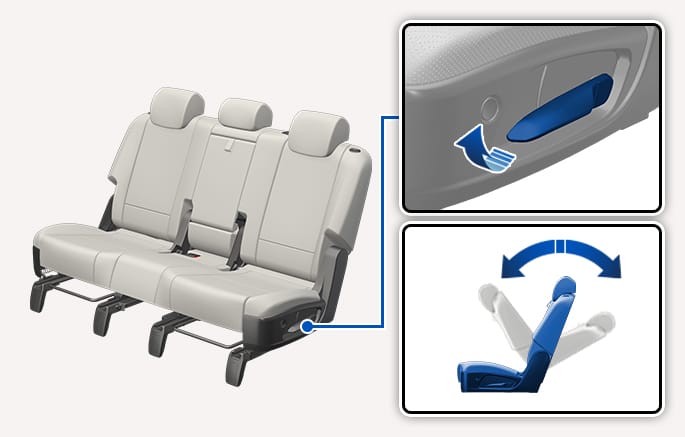

Seatback angle adjustment

2C_Adjust2ndSeat3seatsTypeBack

  1. Pull up the seatback recline lever.

  2. Hold the lever and adjust the seatback of the seat to the position you desire.

  3. Release the lever and make sure the seatback is locked in place. The lever MUST return to its original position for the seatback to lock.
