This message appears when the brake performance is low or the regenerative brake does not work properly due to a failure in the brake system.

If this occurs, it may take longer for the brake pedal to operate and the braking distance may become longer.

This message appears when a failure occurs in the brake system.

If this occurs, park the vehicle in a safe location and tow your vehicle to the nearest authorized HYUNDAI dealer and have your vehicle inspected.

This message appears when there is a problem with the hybrid system. Refrain from driving when the warning message appears.

Have your vehicle inspected by an authorized HYUNDAI dealer.

This message appears when there is a problem with the hybrid system. The READY indicator will blink and a warning chime will sound until the problem is solved. Refrain from driving when the warning message appears.

Have your vehicle inspected by an authorized HYUNDAI dealer.

This message appears when the hybrid battery power (SOC) level is low. A warning chime will sound until the problem is solved. Refrain from driving when the warning message appears.

Have your vehicle inspected by an authorized HYUNDAI dealer.

This message appears when a failure occurs in the power supply system.

Have your vehicle inspected by an authorized HYUNDAI dealer.

This message appears when there is a problem with the Virtual Engine Sound System (VESS).

Have your vehicle inspected by an authorized HYUNDAI dealer.

This warning message appears to protect battery and electric vehicle system when an abnormality such as high temperature or overcharge is detected in the 12 V battery.

Have your vehicle inspected by an authorized HYUNDAI dealer.

The hybrid system informs the drivers of its energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

Vehicle stop

2C_HybridStop

The vehicle is stopped. (No energy flow)

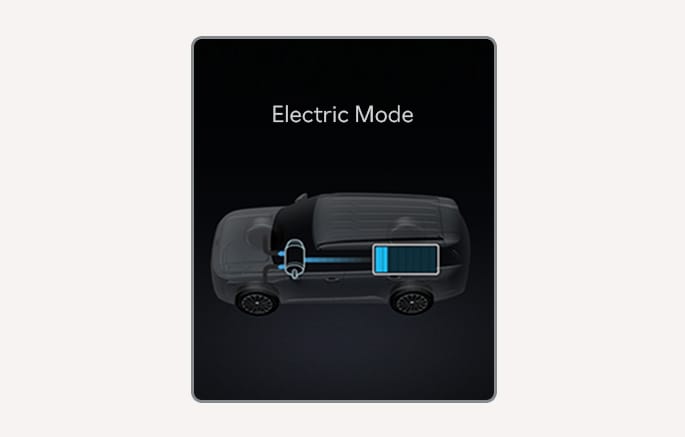

Electric mode

2C_HybridMotorDrive

Only the motor power is used to drive the vehicle. (Battery → Wheel)

Hybrid mode

2C_HybridEngineNMotorDrive

Both the motor and the engine power are used to drive the vehicle. (Battery & Engine → Wheel)

Fuel engine mode

2C_HybridEngineDrive

Only the engine power is used to drive the vehicle. (Engine → Wheel)

Engine generation

2C_HybridBatteryCharging

The engine charges the high voltage battery according to the vehicle and surrounding conditions. (Engine → Battery)

Regeneration

2C_HybridRegenerating

The high voltage battery is charged up by the regenerative brake system. (Wheel → Battery)

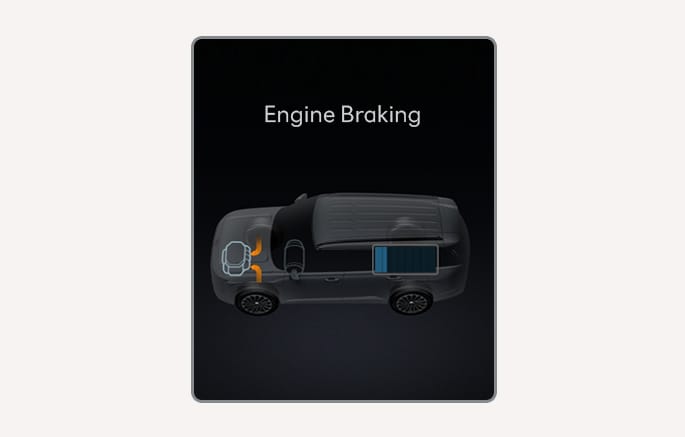

Engine brake

2C_HybridEngineBrake

The engine braking is used to decelerate the vehicle. (Wheel → Engine)

Power reserve

2C_HybridEngineDriveNCharing

The engine is simultaneously used to drive the vehicle and to charge up the high voltage battery. (Engine → Wheel and Battery)

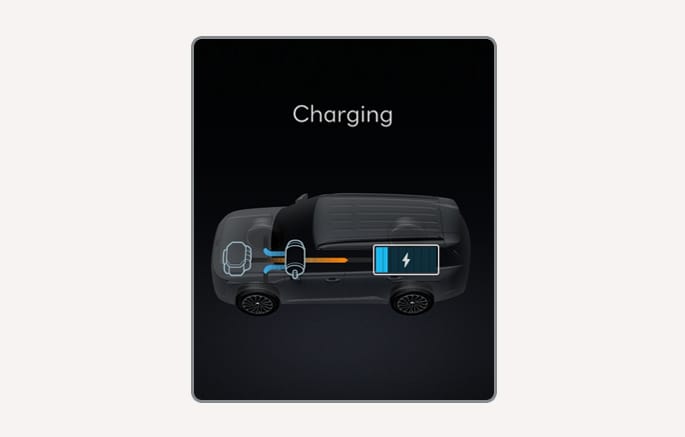

Engine generation/motor drive

2C_HybridMotorDriveNCharing

The engine charges up the high voltage battery. The motor power is used to drive the vehicle. (Engine → Battery → Wheel)

Engine generation/regeneration

2C_HybridRegeneratingCharing

The engine and regenerative brake system charges up the high voltage battery. (Engine and Wheel → Battery)

Engine brake/regeneration

2C_HybridEngineBrakeRegenerating

The engine braking is simultaneously used to decelerate the vehicle and to charge up the high voltage battery. (Wheel → Engine and Battery)
