Filter replacement

2C_AirCleaner_2

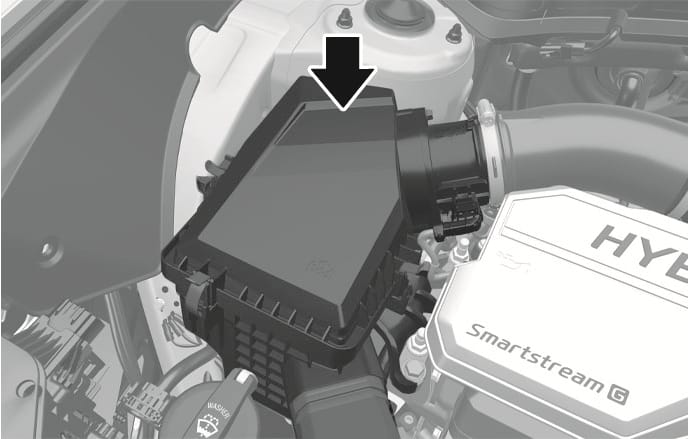

The air cleaner filter can be cleaned for inspection using compressed air. Do not attempt to wash or rinse it, because water can damage the filter. If soiled, replace the air cleaner filter.

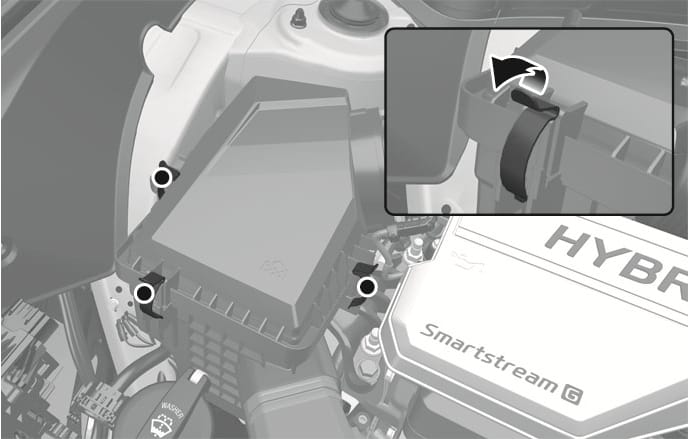

  1. Loosen the air cleaner cover attaching clips.

    2C_AirCleanerReplacementProcedure

  2. Open the cover.

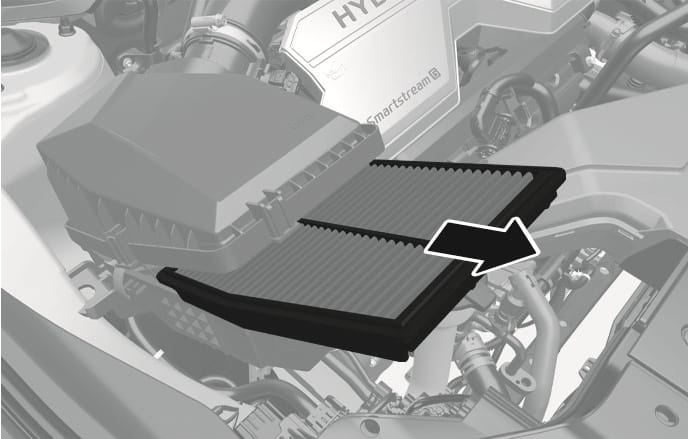

  3. Pull out and replace the air cleaner filter

    2C_AirCleanerReplacementProcedure_2

  4. Lock the cover with the attaching clips.

  5. Check that the cover is firmly installed.

If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals (refer to the "Maintenance under severe usage and low mileage conditions" section in this chapter).

If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals (refer to the "Maintenance under severe usage and low mileage conditions" section in chapter 9 of the complete Owner's Manual).

  • Do not drive with the air cleaner filter removed. This may result in excessive engine wear.

  • When removing the air cleaner filter, be careful that dust or dirt does not enter the air intake. It may cause damage.

  • Use HYUNDAI genuine parts or the equivalent specified for your vehicle. Use of non-genuine parts may damage the air flow sensor.
