Headlight, Parking Lamp, Turn Signal Lamp, Daytime Running Light (DRL) Replacement

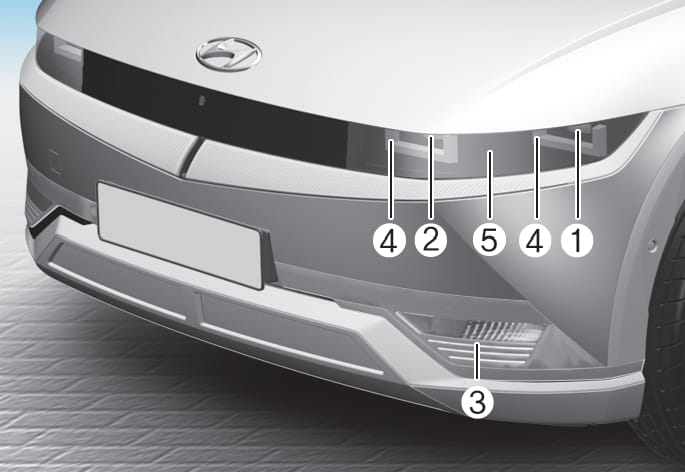

Type A

ONE1091014N

  1. Headlight (High/Low)
  2. Headlight (Low)
  3. Turn signal lamp (Bulb type)
  4. Parking lamp/Daytime running light (DRL)
  5. Front side marker (LED)

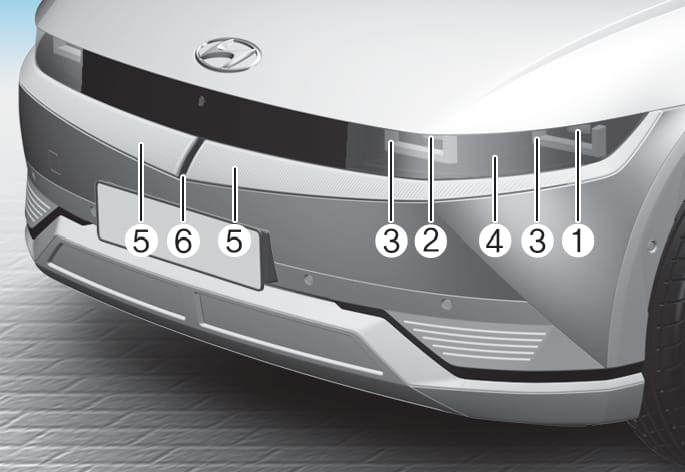

Type B

ONE1092015N

  1. Headlight (Low)
  2. Headlight (High)
  3. Parking lamp/Daytime running light/Turn signal lamp (LED) (if equipped)
  4. Front side marker (LED) (if equipped)
  5. Garnish hidden lighting (if equipped)
  6. Charging display lamp (If equipped)

If the LED lamp does not operate, have the system inspected by an authorized HYUNDAI dealer.

The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

Turn signal lamp (bulb type)

  1. Engage the parking brake and disconnect the negative battery cable.

  2. Remove wheel guard clips (under the front bumper).

  3. Push the wheel guard aside and remove the bulb socket by turning it counterclockwise.

  4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket.

    Pull the bulb out of the socket.

  5. Install a new bulb by inserting it into the socket and rotating it until it locks into place.

  6. Push the socket into the assembly and turn the socket clockwise.

  7. Install the wheel guard in the reverse order.

  • Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.

  • Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids.

  • Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.

  • A bulb should be operated only when installed in a turn signal lamp.

  • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.

  • Replacing the bulb may cause damage to the bulb relevant parts of the vehicle, and also may cause injuries. To replace the turn signal lamp, visit an authorized HYUNDAI dealer.
