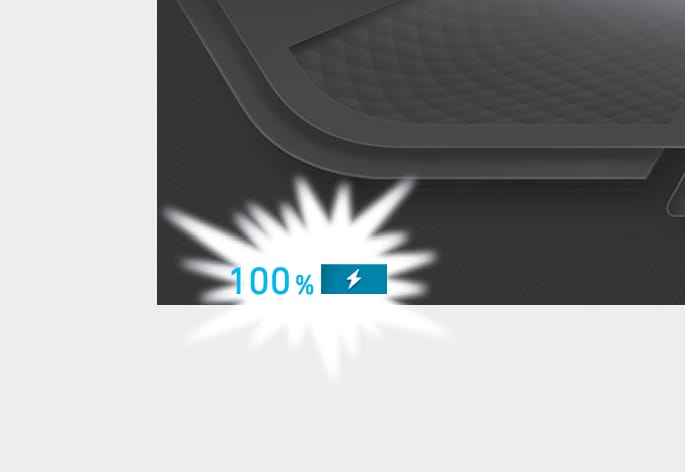

State of Charge (SOC) Gauge for High Voltage Battery

ONE1Q011003

  • The SOC gauge shows the charging status of the high voltage battery.

  • The low percentage number on the indicator indicates that there is not enough energy in the high voltage battery. 100% indicates that the driving battery is fully charged.

  • When driving on highways or motorways, make sure to check in advance if the driving battery is charged enough.

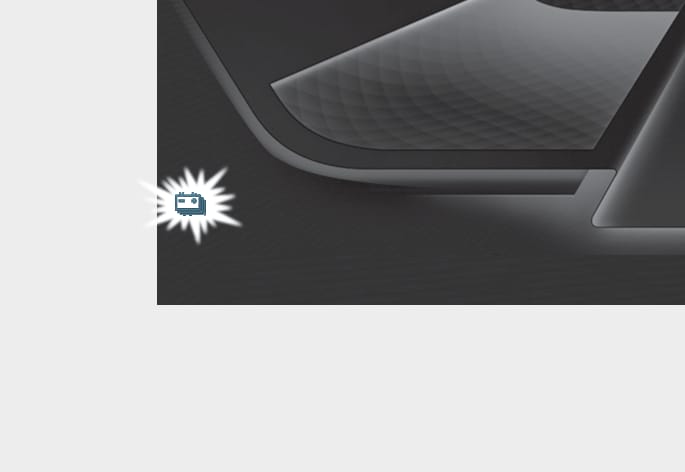

ONE1Q011011

When the remaining battery is lower than 10 % on the SOC gauge, the warning light () turns ON to alert you of the battery level.

When the warning light () turns ON, the vehicle can drive an additional 18 ~ 25 miles (30 ~ 40 km) depending on the driving speed, heater/air conditioner, weather, driving style, and other factors. Charging is required.

The output is limited as the remaining battery is low.

When the Power Down Indicator Light is on, the vehicle may be limited to a certain speed, it may be difficult to climb hills, or the vehicle may be pushed back, so charge it immediately.

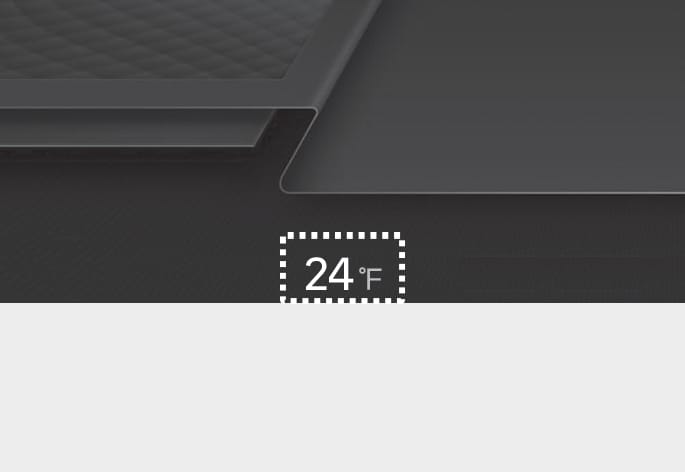

Outside temperature gauge

ONE1041014N

This gauge indicates the current outside air temperatures by 1°F (1°C).

Note that the temperature indicated on the instrument cluster may not change as quickly as the outside temperature (there may be a slight delay before the temperature changes.)

You can change the temperature unit from the Settings menu in the infotainment system screen.

Select:

  • General Settings > Unit > Temperature Unit > °C/°F

Both the temperature unit on the cluster display and climate control screen will change.

The infotainment system may change after software updates. For more information, refer to the user’s manual provided in the infotainment system and the quick reference guide.

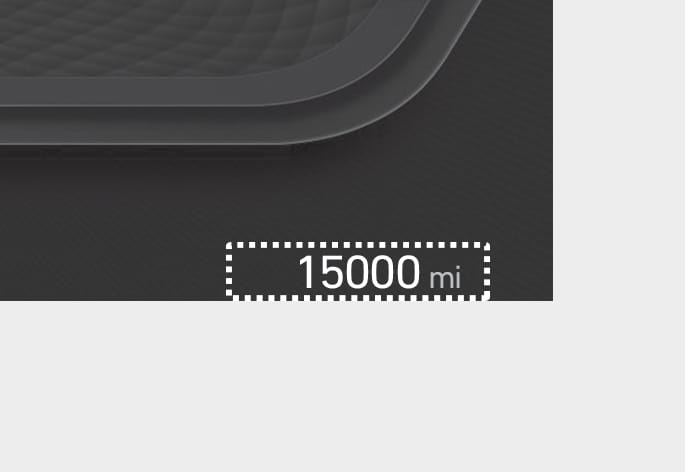

Odometer

ONE1041016N

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

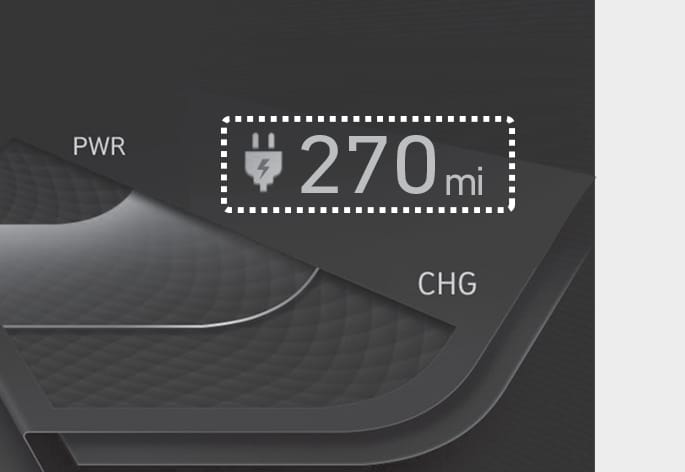

Distance to empty

ONE1Q011049N

  • The distance to empty is the estimated distance the vehicle can be driven with the remaining electric energy.

  • The distance to empty varies depend on which drive mode is selected among ECO/NORMAL/SPORT mode.

For more detail information, refer to ‘Distance to Empty’ in chapter 1.

  • If the vehicle is not on level ground or the battery power has been interrupted, the distance to empty function may not operate correctly.

  • The distance to empty may differ from the actual driving distance as it is an estimate of the available driving distance.

  • The distance to empty may vary significantly based on driving conditions, driving habits, and condition of the vehicle.
