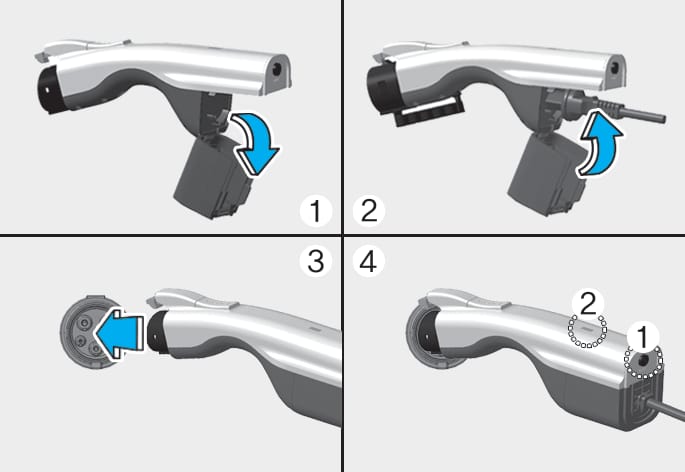

Please connect the V2L connector to the charging inlet within 60 seconds after the charging cover opens. To prevent theft after connecting, it is changed to auto lock automatically so that it is impossible to disconnect.

When using V2L, cancel the scheduled air conditioning setting. V2L operation may be blocked by scheduled air conditioning operation conditions.

When the used power is exceeded due to overload, the use of V2L is stopped and the “V2L function is stopped due to excess power” message appears on the cluster display. Disconnect the electronic product to reset the V2L and follow as below.

• After removing the outdoor V2L connector, it can be used again by reconnecting it.

• When using only indoor V2L with the vehicle ON, if V2L is terminated due to overload, it can be used only after restarting.

• V2L discharging mode will shut off if the vehicle is off using indoor V2L on the vehicle state of ON.

• Opening the charging door or connecting the V2L connector to the charging inlet, the V2L discharging mode will shut off. If you want to use the indoor and outdoor V2L simultaneously, firstly connect the V2L connector to the charging inlet and use the indoor V2L.

• Be well-informed of the manual to prevent accidents.

• The V2L discharging mode is blocked automatically in case of overheating. (When the discharging mode is blocked, check whether the V2L connector or power plug is contaminated, worn, corroded or broken. If the temperature falls to proper level after it is left unattended, you can use it again. Use proper home appliances.)

• Do not remodel or disassemble the provided V2L connector. The failure caused by remodeling or disassembling is not covered by the warranty.

• Do not drop the V2L connector or give a strong impact to it.

• Do not place objects on the V2L connector.

• Be sure to disconnect the V2L connector from the vehicle when you are finished using V2L.

• When the high voltage battery charge reaches the set discharging limit(%), the operation stops, and a warning message is displayed on the instrument panel. If you want V2L operation, set the discharging limit(%) lower than the current battery charge.

• When using various electric products, use them below the maximum power capacity that can be supplied by the vehicle.

• If you use an electrical appliance that exceeds the maximum power capacity that the vehicle can supply, the operation will stop and a warning message will be displayed on the instrument panel. Make sure the total power consumption of the electrical appliance you use exceeds the V2L maximum power capacity.

• Some of the electric products may not operate normally even if the product has power consumption less than the maximum power capacity provided by the vehicle.

  • Electrical products that require high power during initial operation.

  • Measuring devices that need to process accurate data.

  • Electric products sensitive to inverter type AC power supply (Inverter: A device that converts DC power into AC power)

• Do not use products that require a continuous power supply, such as medical equipment. The power supply may be interrupted depending on the vehicle’s condition.

• Put the power plug fully and use the qualified plug that meets the standard. If you use worn, corroded or broken plug or improper plug, it might be a cause of malfunction.

• Use a power plug with ground connection.

• Do not use high power home appliances such as air conditioning, washing machine or dryer.

• Do not hang the home appliances on to the wire.

• For various devices connected to an power outlet, use only products that have obtained national safety certification. For usage and precautions, refer to the manual of the device. (Electrical appliances, multi-outlets, cord extension cables, etc.)

• For devices used outdoors in a vehicle, use a product with a waterproof function or use it in a waterproof environment. Do not use in environments with rain or high humidity. (Electrical appliances, multi-outlets, cord extension cables, etc.)

• If there is a risk of lightning, do not use the V2L function outside the vehicle.

• Do not connect multiple portable multi-outlets.

• When using an extension cable, if the cable is twisted or overlapped by itself may cause a fire. Be sure to use the cable without twisting it.

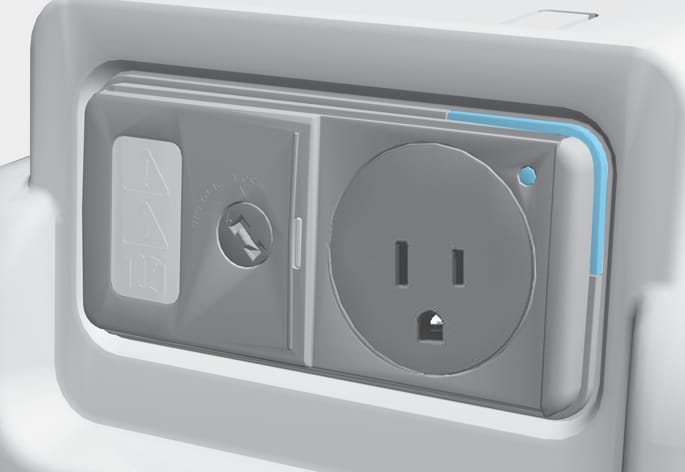

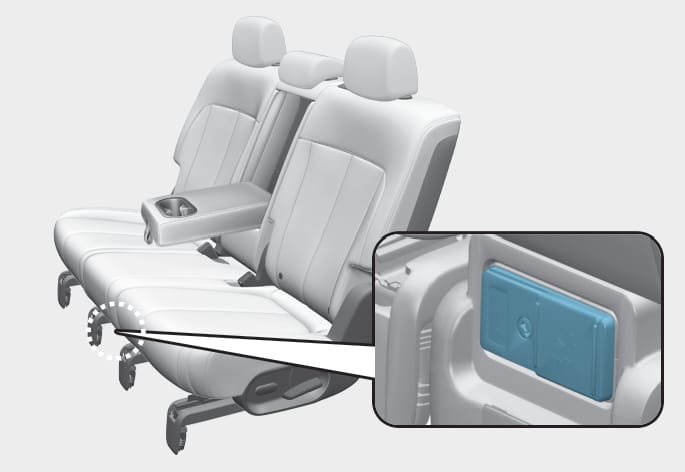

• When using the vehicle’s outdoor V2L connector, power is also supplied to the vehicle’s indoor power outlet. Unplug electrical appliances that are not in use from the indoor power outlet.

• When using the V2L, the cooling fan in the vehicle motor compartment can operate automatically even if the vehicle is turned off. Do not put your hand near the cooling fan in the V2L operating state.

• Do not touch the V2L connector of the terminal of the vehicle charging inlet.

• Do not put metal objects to the V2L connector or charging inlet. It might be a cause of electric shock.

• Do not touch the V2L connector, charging inlet or power plug with a wet hand. It might be a cause of electric shock. Please handle with a dry hand all the time.

• Confirm whether there is foreign substance such as water or dust on the V2L connector, charging inlet or power plug before connecting. If you connect it with foreign substances, it may be a cause of fire or electric shock.

• Do not remodel or disassemble the V2L connector. There is a risk of fire, electric shock or injury.

• When the power plug is connected or disconnected to the V2L connector or open or close the connector cover of the V2L, be careful not to be scratched on the hand.

• Do not charge in the following conditions. The accident might occur.

  • The V2L connector, charging inlet, power plug or cable is damaged, corroded or rusted.

  • The connection part is loose.

• Do not use if the sheath of home appliance cables is damaged or broken. There is a risk of fire, electric shock or injury.

• Never use an electric heating appliance like iron, coffee pot, and toaster in the vehicle. It may cause a fire and injury.
