N Launch Control

N Launch Control conveniently provides maximum acceleration when the vehicle is at a complete stop.

When using N Launch Control, N Grin Boost will be automatically activated to maximise the acceleration of a vehicle.

Settings

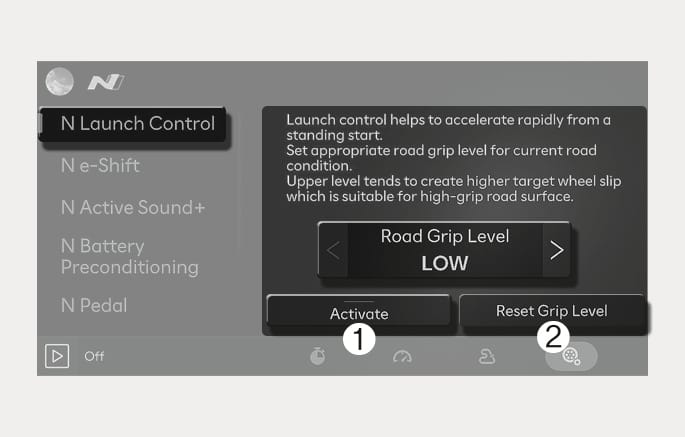

  1. Select the road grip level (LOW/MEDIUM/HIGH), which is aligned with the driving road condition, from Performance options > N Launch Control in N mode screen. Then, press the Activate button (1).

    2C_N_LaunchControl_2

    Pressing Reset Grip Level (2) will change the road grip level to HIGH.

  2. When prerequisites are satisfied, N Launch Control is ready to activate once you fully and briefly depress the accelerator pedal with your right foot whilst the brake pedal is fully depressed with your left foot.

    Prerequisite for activation

    • Driving mode N mode (Custom motor mode Sport +)

    • ESC SPORT or OFF, shift position: D

    • Steering wheels are straight. Motor warning sign: absent

    • Wheel speed is normal. Motor temperature is normal.

    "N Launch Control Ready" message will appear on the cluster once N Launch Control is ready to activate.

    2C_N_LaunchControl_3

  3. Once it is ready, pre-torque will be automatically initiated (when selecting Road grip level HIGH).

  4. Start driving after releasing the brake pedal within 8 seconds.

  • N Launch Control will be cancelled once you release the accelerator pedal.

  • If you want to use N Launch Control, you must cool the vehicle at least 2 minutes.

The use of N Launch Control is limited when N Grin Boost, Speed Limit Assist, N Drift Optimizer, N e-Shift, N pedal, N Torque Distribution is operating or the motor control unit is overheated.

Feature and Control

Pre-torque

Before driving, initiate the torque for wheel and driving system in advance so that a driver can minimise the preparation time for acceleration and shorten the time to accelerate after releasing the brake pedal.

Road grip level control

Control wheel slip and torque in 3 different stages to drive in accordance with the road condition.

Road grip level

Automatic link to N Grin Boost

Pre torque

LOW

Not applied

Not applied

MEDIUM

Applied

Not applied

HIGH

Applied

Applied
