Filter replacement

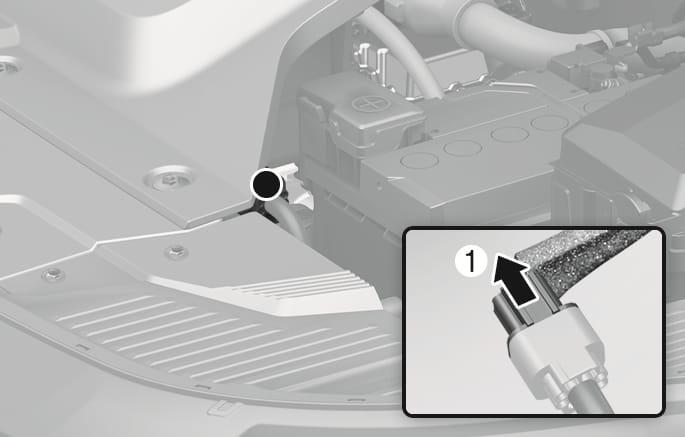

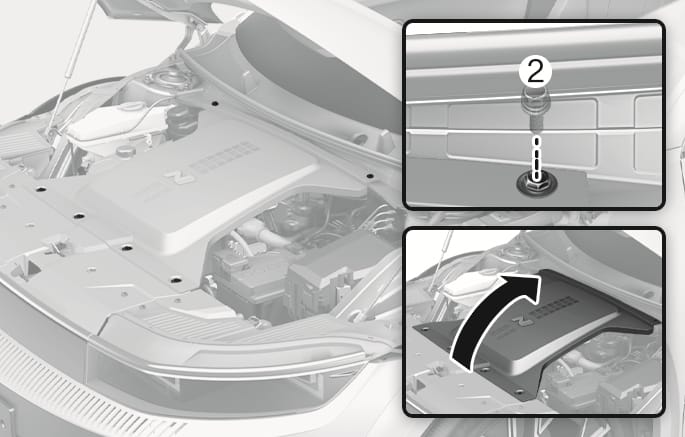

1. With the bonnet open, disassemble the external speaker connector (1) located on the right side. Remove the bolt (2) to remove the motor compartment cover.



   2C_AirFilterReplacementProcedure



   2C_AirFilterReplacementProcedure_2

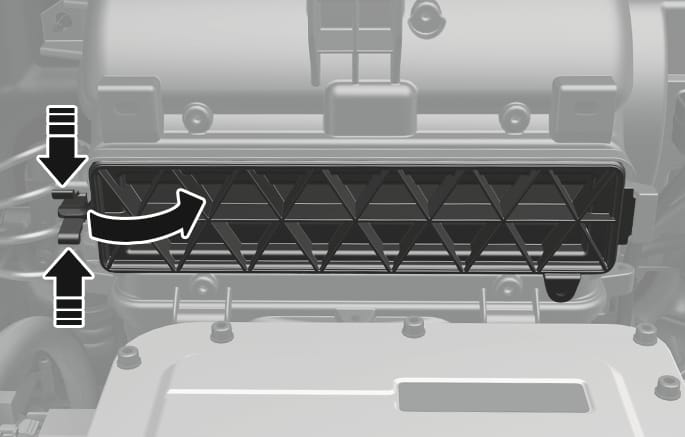

2. Press and hold the lock on the left side of the cover.



   2C_AirFilterReplacementProcedure_3

3. Pull out the cover.

4. Replace the cabin air filter.

5. Reassemble in the reverse order of disassembly.

2C_AirFilterReplacementCaution

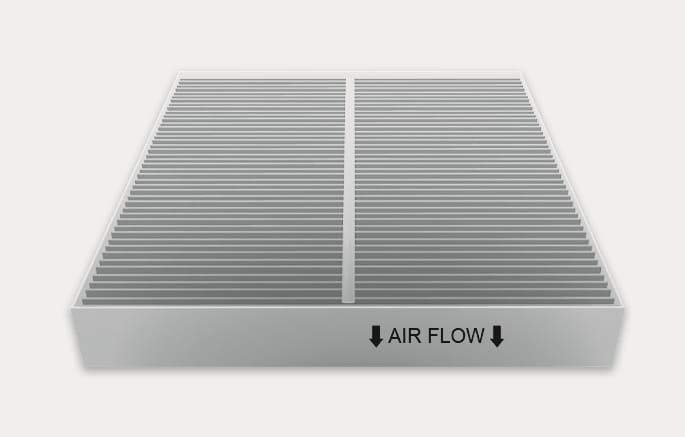

• Install a new cabin air filter in the correct direction with the arrow (↓) symbol facing downwards, to prevent noise and reduce effectiveness.

• Always be sure that the front boot cover is firmly closed after replacing the cabin air filter.

Otherwise is may cause interior damage in the motor compartment, noise trouble, or entrance of foreign substances.
