Forward/Side/Reverse Parking Collision-Avoidance Assist (PCA)

Forward/Side/Reverse Parking Collision-Avoidance Assist can warn the driver or assist with braking to help reduce the possibility of collision with a pedestrian or an object whilst driving at low speed.

Detecting sensor

2C_FrontSideUltrsonicSensor

2C_RearSideUltrsonicSensor

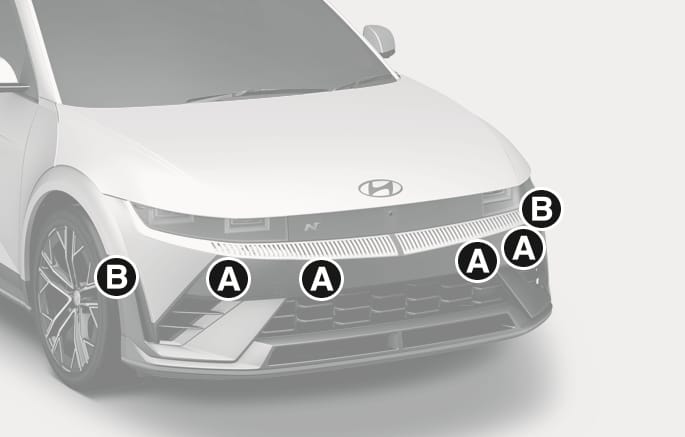

  1. Front ultrasonic sensors
  2. Front side ultrasonic sensors

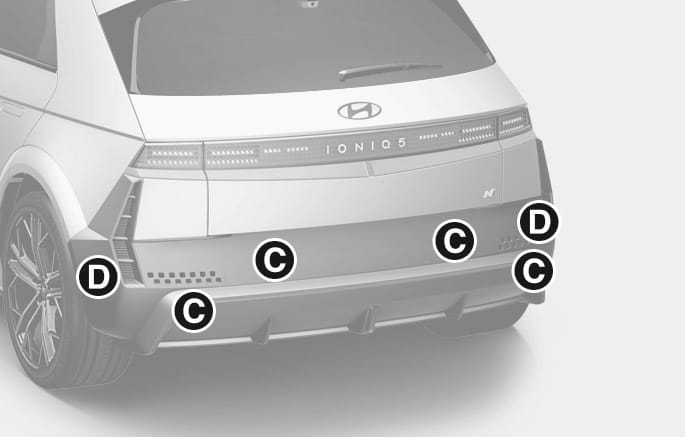

  3. Rear side ultrasonic sensors
  4. Rear ultrasonic sensors

Refer to the picture above for the detailed location of the detecting sensors.

2C_WideFrontSideViewCamera

2C_WideRearCamera

  1. Wide-front view camera
  2. Wide-side view camera (below the outside mirror)
  3. Wide-side view camera (below the outside mirror)
  4. Wide-rear view camera

Refer to the picture above for the detailed location of the detecting sensors.
